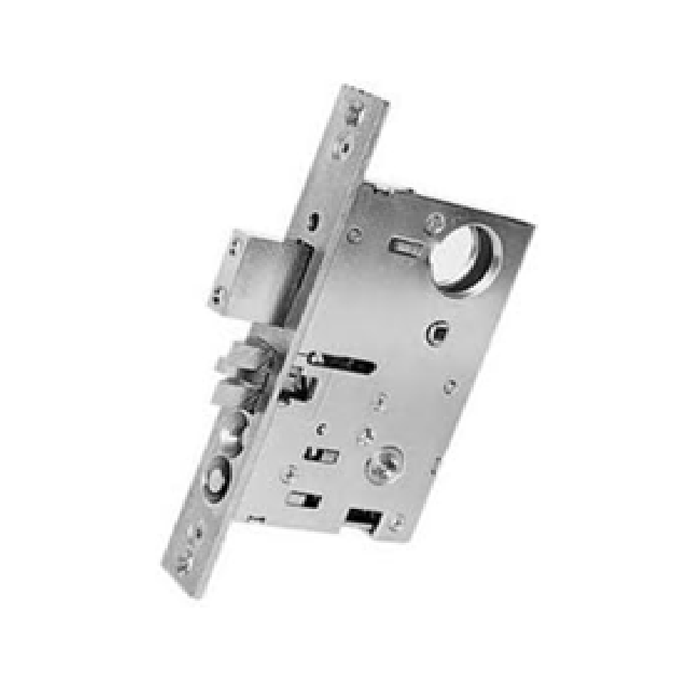

Right hand reverse means the hinges are on the right as you stand outside the door and the door swings toward you (outswing). Stand on the outside: hinges right plus pull to open equals RHR. The Estate 6320 body is handed, so a left hand or right hand inswing opening needs the matching hand instead of this one. Getting it wrong means the latch bevel and the handleset thumbpiece work backwards.

The latch faceplate measures 1-1/4 x 8 inches, so the door edge has to be routed for that plate and the pocket sized to accept the body behind it. It fits doors 1-3/8 inches thick and over.

Residential. It is an Estate Series entry mortise lock built for a house or a high-end residential entry door, handleset outside by knob inside. For a commercial opening in a school, office, or multi-family corridor, a Grade 1 body such as the Cal-Royal NM8050 entrance/office or Corbin Russwin ML2003 classroom lock is the right class of product.

The Baldwin Estate 6320 is a residential entry mortise lock body with a 2-1/2 inch backset. For a commercial office/entrance opening on a 1-3/4 inch door, the Cal-Royal NM8050 is a heavy duty Grade 1 Office/Entrance mortise lockset with auxiliary deadlatch, listed for 1-3/4 inch doors. The Sargent 7925 is a Grade 1 heavy duty corridor/dormitory function mortise lock with rose trim and a single cylinder deadbolt if you want a deadbolt in the commercial body as well.

No. The Emtek 3102 Memphis mortise entrance lockset is a dummy function, so it has no latch or deadbolt operation and mounts as a pull only. The Baldwin Estate 6320 is a working entry mortise lock body with a 1 inch throw deadbolt with saw-proof inserts and a 2-1/2 inch backset. Emtek's 3019 Brisbane, 3104 Hamilton and 3106 Manhattan are dummy function as well.

The Baldwin Estate 6320 mortise lock body is specified by hand, with Right Hand Reverse offered in 190 Satin Black. If you would rather stock one body for any opening, the BEST 45H Series heavy duty mortise lock body with Public Entrance function is field reversible, and the Falcon MA101 Grade 1 heavy duty passage mortise lock is field reversible as well.

It uses an ASA strike, the standard curved-lip mortise strike prep. If your frame is already cut for an ASA strike from another mortise lock, the frame side should carry over; a door prepped only for a cylindrical lock strike needs the frame mortised.

The deadbolt throws a full 1 inch and carries saw-proof inserts, so the bolt resists being cut through in the gap between door and frame. That 1 inch projection is what lets it reach past the frame into solid backing on an exterior entry door.

Entry function: the outside handleset is keyed and the inside is a knob. Key retracts the latch from outside, inside knob always releases for egress, and the 1 inch deadbolt is thrown separately. It is the standard front-door arrangement rather than a passage or privacy set.

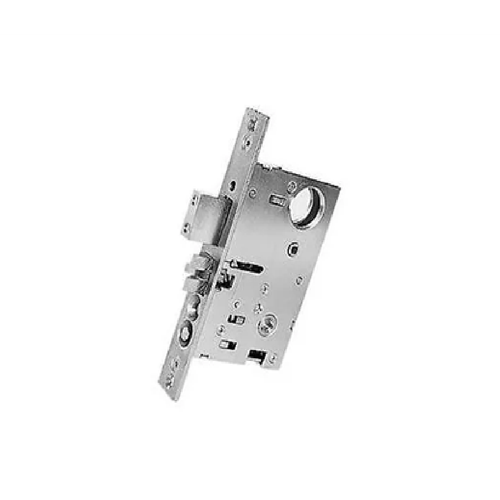

Yes, this is the 6320 mortise lock body itself, the handleset-by-knob entry case. Exterior handleset trim, interior knob, cylinder and keying are separate items and have to match the Estate Series trim you are using.

It is not the part for that. The 6320 is a residential entry mortise body with no grade rating behind it. For corridor or dormitory duty look at a Grade 1 heavy duty mortise lock like the Sargent 7925 dormitory exit function body, or an electronic option such as the Schlage CO-100 mortise lock if you need code access.

The Baldwin Estate 6320 is a keyed mechanical entry mortise body. For code or credential access in the same mortise pocket, the Schlage Electronics LEBMB-ADD is a Grade 2 mobile enabled mortise lock with push button and LED offering privacy, office and apartment functions on 1-3/4 inch doors with a 3 hour fire rating. The Dormakaba E-Plex 2066 Series is an electronic pushbutton keyless mortise lock for wide stile applications.

Not without checking the prep. The Baldwin Estate 6320 uses a 2-1/2 inch backset with a 1-1/4 inch by 8 inch latch faceplate and an ASA strike. The Hager 3810S and 3850E in the 3800 Series are specified with a 2-3/4 inch backset for 1-3/4 inch to 2-1/2 inch doors, so the cylinder centerline differs from the 6320 prep.
