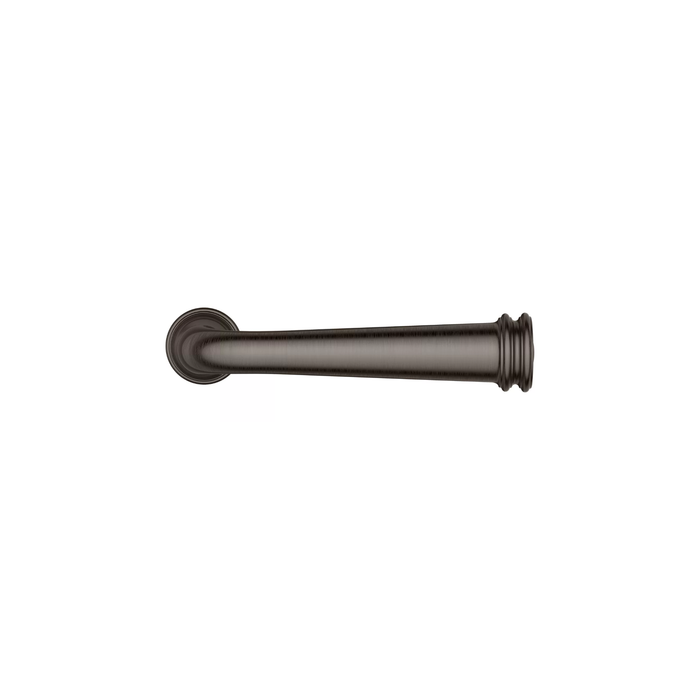

Baldwin 5116 Lever

Baldwin 5116 Lever

(No reviews yet) Write a Review

Model: 5116102RMR
From the Estate Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$160.00
$110.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BaLDWIN 5116 Lever
KEY FEATURES

  • Knob or lever set paired with roses with a privacy lock to both close and secure any door with the 2.125" standard door preparation.
  • Privacy sets include everything needed to install the lock onto your door.
  • Dependability, quality, and high design. Baldwin's Quick Ship items are ready to ship to you within 5 business days from ordering.
  • Familiar and comforting, this item in its traditional style is timeless and classic.



  • SPECIFICATIONS

  • LOCK TYPE
    Tubular Mortise
    STYLE
    Contemporary
    BACKSET SIZE
    2-3/8"
    LEVER GRIP LENGTH
    4.5"
    PROJECTION
    2.8"
    MAXIMUM DOOR THICKNESS
    1.75"
    MINIMUM DOOR THICKNESS
    1.375"
    LEVER HANDING
    Reversible
    LEVER ROSE SHAPE
    Round

INSTALLATION AND SUPPORTINSTALLATION GUIDEWARRANTY

Product Specs

Product Group:
Mechanical Locks
Product Type:
Lever Handle
Subcategory:
Parts And Accessories
Product Subgroup:
Parts and Accessories
Commercial/Residential:
Residential
Collection:
Estate Series
Maximum Door Thickness:
1.75"
Minimum Door Thickness:
1.375"
Product Model:
5116.LEVER
Door Hand Direction:
Reversible
Product Category:
Mechanical Locks
Department:
Door Hardware

Baldwin 5116102RMR – Frequently Asked Questions

1) Will the Baldwin 5116 lever drop into an existing 2-1/8 inch bored door?
Yes, that is the prep it is built around. The 5116 suits a 2.125 inch cross bore with a 2-3/8 inch backset, which is the standard residential interior door prep, so a like-for-like swap on an existing bored door needs no new drilling.
2) Do I have to order the Baldwin 5116 lever handed left or right?
Only if you are buying a single side. The 5116 lever is reversible, so a full pair covers either hand. Where one lever is being replaced, the half pair is ordered specifically as left hand or right hand.
3) Is the Baldwin 5116 lever a commercial Grade 1 lever or a residential one?
Residential. The 5116 is part of Baldwin's Estate Series and is catalogued for residential use, so for a commercial opening under an ANSI/BHMA Grade 1 or 2 spec you want a commercial cylindrical or mortise lockset instead.
4) Is the Baldwin 5116 a complete lockset or just the handle?
The 5116 is lever trim, a Lever Handle item, not a full lock. It pairs with roses and a latch or privacy mechanism prepped for the 2.125 inch standard door preparation. If you need the working lock, order the privacy or passage set, which includes everything to install onto the door.
5) What is the difference between the Pair and Pair (PINNED) version of the Baldwin 5116 lever?
Both are two-lever sets. The PINNED version has the lever pinned to its spindle rather than left loose, which is the choice to make when you do not want the handle separating from the spindle during handling or install. If you are matching an existing set on other doors, order the same configuration you already have.
6) How far does the Baldwin 5116 lever stick out from the door, and how long is the grip?
Projection is 2.8 inches off the door face, with a 4.5 inch lever grip. Worth checking against tight door-to-wall clearances, an adjacent door swinging past, or a cabinet face beside the opening.
7) What finishes does the Baldwin 5116 lever come in?
Fourteen: Polished Brass (003), Non-Lacquered Brass (031), Vintage Brass (033), Satin Brass (044), Satin Brass and Black (050), Polished Nickel (055), Satin Nickel (056), Satin Brass and Brown (060), Graphite Nickel (076), Oil Rubbed Bronze (102), Venetian Bronze (112/11P), Satin Black (190), Polished Chrome (260), and Distressed Oil Rubbed Bronze (402). Living finishes like non-lacquered brass will patina over time, which matters if you need new levers to match ones already in service.
8) I only need to replace one broken lever on a bathroom door. Can I buy a single side?
Yes. The 5116 is sold as a half pair, specified left hand or right hand, so you can replace one side and keep the other. Match the finish code to the surviving lever, and confirm whether your existing set is pinned before ordering.
9) What shape is the rose on the Baldwin 5116 lever?
Round. If you are standardizing a house or a floor of units, that round rose will read consistently with other round-rose Baldwin trim but will not cover a square rose footprint or an old mortise plate cutout.
10) What lock mechanism does the Baldwin 5116 lever work with?
It is a tubular mortise lock type in a contemporary style. That means the latch body slides into a bored edge prep rather than a full mortise pocket, so it is not a substitute for trim on a heavy commercial mortise lock case.
