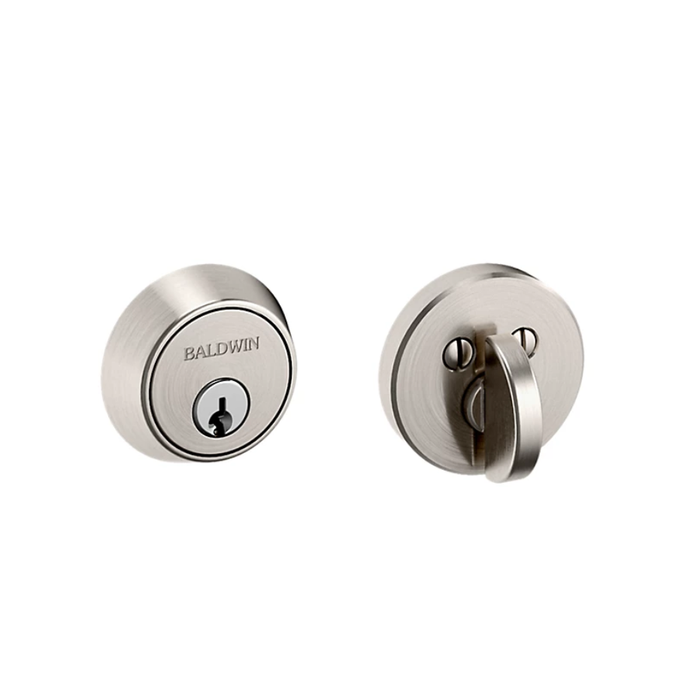

Baldwin Estate 8041 Contemporary 1-5/8" Single Cylinder Deadbolt

Yes. The Estate 8041 deadbolt has an adjustable backset, so it sets to either 2-3/8 inches or 2-3/4 inches, the two standard residential bore positions. You do not have to know which one your door was drilled for before ordering.

It ships in the Baldwin C keyway, and you choose keyed different or keyed alike when ordering. There is also an optional key code field, so if you already have Baldwin C keyway locks on the property you can supply that code and have the new deadbolt cut to the same key. Matching to a different manufacturer's keyway is not something this cylinder does out of the box.

No. The 8041 is a residential deadbolt, built for house and condo entry doors. For a commercial or institutional opening where a graded lock is specified, look at a Grade 1 or Grade 2 deadbolt such as the Accentra D111 (Grade 1) or the Arrow DBX61 (Grade 2).

The Baldwin Estate 8041 is a contemporary-design single cylinder deadbolt with a cylinder by thumbturn function, catalogued for residential use. If the spec calls for a stated Grade 2 rating in a contemporary look, the Bravura 310RC Elite is a Grade 2 contemporary round deadbolt with cylinder by thumbturn function, and the Bravura 310SC Elite is the same Grade 2 function in a contemporary square trim. Cal-Royal CB160 is another Grade 2 cylinder by thumbturn deadbolt and adds a tamper-resistant cylinder guard; the 8041 protects its cylinder with a free-turning solid brass cylinder guard.

The Baldwin Estate 8041 is catalogued as a residential deadbolt. For a commercial opening where Grade 1 is required with the same cylinder by thumbturn operation, the Accentra D111 is a Grade 1 single cylinder deadbolt with a 2-3/8 inch backset and a 1-3/8 inch to 1-3/4 inch door thickness range, and the Dexter DB1000 single cylinder is Grade 1 with a 1-3/8 inch to 1-7/8 inch door thickness range. Deltana CL200LM is also a Grade 1 single cylinder deadbolt, and the Cal-Royal CRB800 is a heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch.

The 8041 is a single cylinder deadbolt: keyed cylinder outside, turn piece inside. For a keyed cylinder on both faces, the Callan Model 210S is a Grade 3 double cylinder deadbolt, the Delaney LU Series is a Grade 2 double cylinder deadbolt, the Dexter DB2000 double cylinder is Grade 2 with a 1-3/8 inch to 1-3/4 inch door thickness range, and the Design Hardware D1 Series is a Grade 1 extra heavy duty double cylinder deadbolt for 1-3/4 inch doors. Hager 3214 is a Grade 2 double cylinder deadbolt with a Schlage C keyway. Check local egress code before specifying a double cylinder.

The Baldwin Estate 8041 is supplied with a C-keyway cylinder and can be ordered keyed different or keyed alike. If you are extending an existing Schlage C system, the Hager 3115 is a Grade 2 cylinder by thumbturn deadbolt with a Schlage C keyway, the Hager 3118 is a Grade 1 classroom deadbolt with a Schlage C keyway and 6-pin cylinder, and the Hager 3214 is a Grade 2 double cylinder deadbolt with a Schlage C keyway. All three Hager units carry a 1-3/8 inch to 1-3/4 inch door thickness range.

The 8041 ships with a C-keyway cylinder and can be ordered keyed different or keyed alike with a key code. If you need a core you supply yourself, the Deltana CL200LAIC is a Grade 2 single cylinder deadbolt prepped for an interchangeable core and furnished less cylinder, the Arrow E61 is a Grade 2 single cylinder deadlock with SFIC prep less core for 1-3/8 inch to 1-3/4 inch doors, and the Delaney LM Series is a Grade 1 single cylinder less core deadbolt in dull chrome US26D.

The 8041 is a bored-prep deadbolt with an adjustable 2-3/8 inch or 2-3/4 inch backset. Several deadbolts in the same family need different door work: the Emtek 2050 and 2051 are European mortise deadbolts with an integrated roller latch, the Dormakaba D900 is a small case mortise deadbolt, the Codelocks CL200 is a surface-mounted deadbolt with key override, and the Detex DX Series is a hinge-side locking deadbolt with multi-point security. The Arrow 460 is a mortise lock strike rather than a lock body.

One part number covers both. The 8041 is reversible, so the same deadbolt installs on a left hand or right hand door with no separate order code.

The 8041 is a single cylinder: key on the outside, turn piece on the inside. That is the safer choice for egress and is what most codes expect on a dwelling entry. If your insurer or local rule calls for key on both sides because glazing sits within arm's reach of the thumbturn, you need a double cylinder instead, such as the Emtek 8323 Modern Disc double cylinder or the Callan 210S.

Six: 003 Polished Brass PVD, 031 Non-Lacquered Brass, 056 Lifetime PVD Satin Nickel, 102 Oil Rubbed Bronze, 112 Venetian Bronze, and 190 Satin Black. Note that 031 is unlacquered living brass, it will patina with handling and weather, while 003 and 056 are PVD and hold their appearance. If you are matching existing Baldwin trim on other doors, order the same finish code rather than by name.

Contemporary alternatives in the same cylinder x thumbturn function include the Bravura 310SC Elite square and 310RC Elite round, both Grade 2, and the Brinks Mendocino Series contemporary square deadbolt, which has a 4-way adjustable backset. They are different trim programs from Baldwin's Estate castings, so they will not match Baldwin Estate levers on adjacent doors.

It is a bored installation: cross bore through the door face plus an edge bore for the bolt, the same prep a standard residential deadbolt uses. It is not a mortise case lock. If your door is prepped for a mortise deadbolt pocket, you want something like the Emtek 2050 European mortise deadbolt instead.

The Baldwin Estate 8041 has an adjustable backset set to 2-3/8 inch or 2-3/4 inch and is reversible for either hand. Other adjustable-backset options include the Cal-Royal ED500, a Grade 3 single cylinder deadbolt with adjustable backset for 1-3/8 inch to 1-3/4 inch doors, the Falcon D111, a Grade 1 heavy duty deadbolt with adjustable backset, and the Brinks Raleigh and Mendocino Series single cylinder deadbolts, which use a 4-way adjustable backset.

The Baldwin Estate 8041 is a keyed entry deadbolt with an exterior C-keyway cylinder and an interior turn piece. For code or credential access instead, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, the Codelocks CL2200 is an electronic surface deadbolt in brushed steel, the Codelocks CL2210 is an electronic mortise deadbolt, and the Dormakaba Saffire LX-D is an RFID electronic deadbolt with BLE and electronic lock override. For a non-keyed interior thumbturn only, the Arrow E60 is a Grade 2 exit deadlock with a blank plate outside.

The Baldwin Estate 8041 is a contemporary trim deadbolt with a heavy gauge steel case and a solid brass cylinder guard, offered in finishes including 003 Polished Brass PVD, 031 Non-Lacquered Brass, 056 Lifetime PVD Satin Nickel, 102 Oil Rubbed Bronze, 112 Venetian Bronze and 190 Satin Black. For a cast, textured look in the same cylinder by thumbturn function, the Emtek #11 Tuscany is a lost wax cast bronze deadbolt. The Emtek 8323 Modern Disc deadbolt is brass but is a double cylinder, so it keys on both sides.

The Baldwin Estate 8041 is an Estate Series contemporary deadbolt with cylinder by thumbturn operation. For a plainer Grade 3 unit with the same operation, the Callan Model 200S is a Grade 3 single cylinder deadbolt with square trim, the Cal-Royal LSD is Grade 3 with an ADA ergonomic thumbturn for 1-3/8 inch to 1-3/4 inch doors, and the Cal-Royal ED500 is Grade 3 with an adjustable backset. The Callan 200S-G2 steps up to Grade 2 in round trim.

The outside cylinder sits behind a free-turning cylinder guard made from solid brass, so a wrench gets no purchase on it. The bolt case is heavy gauge steel and the reinforcing strike is high grade steel for the frame side.
