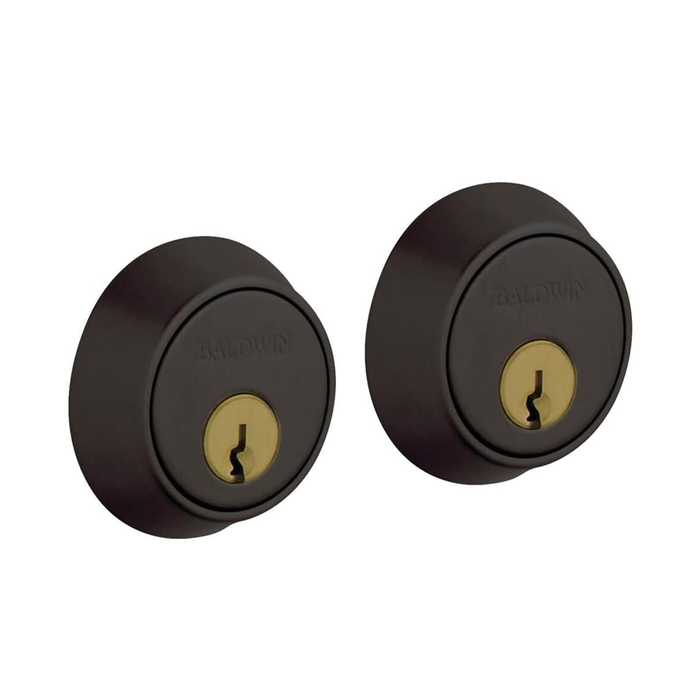

BALDWIN Estates 8011 Contemporary 1-5/8" Double Cylinder Deadbolt
KEY FEATURES
- Contemporary Double Cylinder Deadbolt
- Deadbolt Case Formed Of Heavy Gauge Steel
- Reinforcing Strike Constructed Of High Grade Steel For Ultimate Strength And Durability
- Cylinder Protected By Free-Turning Cylinder Guard Made From Solid Brass
- Limited Lifetime Mechanical Warranty and No Finish Warranty
FEATURES
- C-Keyway, 5-pin cylinder
- 2 Keys Included with deadbolt
- Latch has round corner faceplate
- Latch has adjustable backset 2.375" to 2.75" to fit all standard door preparations
- Locking mechanism functions with turn piece on the interior of the lock
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- The Prestige Deadbolt offers easy, straightforward style with reliable first-class security.
- Additional functions in this style also include double cylinder
- Features a 1 inch brass deadbolt throw
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Keyed Function:
- Double Cylinder
- Subcategory:
- Deadbolts
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Product Type:
- Deadbolts
- Keyed:
- Yes
- Commercial/Residential:
- Residential
- Lock Function:
- Entry
- Interior Locking Type:
- Deadbolts
- Series:
- Estate Series
- Cylinder and Keyways:
- C-Keyway
- Product Attribute:
- Deadbolts
- Collection:
- Estate Series
- Product Function:
- Entrance
- Door Hand Direction:
- Reversible
- Product Design:
- Contemporary
- Product Category:
- Mechanical Locks
- Backset (Distance):
- Adjustable 2-3/8" or 2-3/4"
- Department:
- Door Hardware
Baldwin 8011190 – Frequently Asked Questions
1) Will the Baldwin Estate 8011 deadbolt fit a door prepped for a 2-3/8 inch backset, or do I need the 2-3/4 inch version?
Either one works. The 8011 ships with an adjustable latch that sets to 2-3/8 inch or 2-3/4 inch backset, so it drops into both of the standard residential door preps without ordering a different part. The latch has a round corner faceplate, which suits the routed pocket most pre-bored doors already have.
2) Is a double cylinder deadbolt like the Baldwin 8011 the right choice for a door with glass next to it?
That is exactly the case it is built for. The 8011 is keyed on both sides, so someone who breaks a sidelite or a glass panel cannot reach through and turn a thumbturn to open the door. The trade-off is that everyone inside needs a key to get out, which is why many jurisdictions restrict double cylinder bolts on required egress doors in dwellings. If you want key outside and turn inside, choose a cylinder x thumbturn bolt such as the Dexter DB1000 or the Hager 3215 instead.
3) Can the Baldwin Estate 8011 be keyed alike with the rest of my Baldwin hardware?
Yes. The 8011 uses a 5-pin C-keyway cylinder, and keying can be ordered keyed different or keyed alike. If you are matching an existing key, there is a key code field at order time so the bolt is cut to the code you already carry. Two keys come with the deadbolt.
4) What is the closest commercial-grade equivalent to the Baldwin Estate 8011 double cylinder deadbolt?
The Baldwin Estate 8011 is a double cylinder deadbolt built on a C-keyway cylinder and catalogued for residential use. If the opening needs a graded commercial double cylinder instead, the Hager 3214 is a Grade 2 double cylinder deadbolt with a Schlage C keyway, a fire rating, and a 1-3/8 inch to 1-3/4 inch door thickness range, so it keeps the same key section while adding the grade and fire rating. For a heavier option, the Design Hardware D1 Series double cylinder deadbolt is Grade 1, extra heavy duty, for 1-3/4 inch doors.
5) I need a thumbturn on the inside instead of a key both sides - what should I order in place of the Baldwin 8011?
The Baldwin Estate 8011 is keyed on both sides as a double cylinder function, so egress requires a key from the inside. For a cylinder outside and thumbturn inside, the Dexter DB1000 Series single cylinder deadbolt is Grade 1 with a 1-3/8 inch to 1-7/8 inch door thickness range, and the Dexter DB2000 Series single cylinder is the Grade 2 version for 1-3/8 inch to 1-3/4 inch doors. The Accentra D111 is another Grade 1 cylinder by thumbturn deadbolt, supplied with a 2-3/8 inch backset.
6) My spec calls for a fire rated deadbolt - does the Baldwin Estate 8011 work, or do I need something else?
The Baldwin Estate 8011 is a residential deadbolt with a heavy gauge steel case, a reinforcing strike, and a 1 inch brass throw. When the drawing calls out a fire rating, the Hager 3215 single cylinder deadbolt carries a fire rating with a 1 inch throw at Grade 2, and the Hager 3214 is the double cylinder version with the same rating and a 1-3/8 inch to 1-3/4 inch door range. The Cal-Royal CRB800 is a Grade 1 heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch.
7) Does handing matter when ordering the Baldwin 8011 deadbolt?
No. The 8011 is reversible and works on a left or right hand door with no separate part number. A deadbolt has no latch bevel to swap, so the same unit goes on either swing.
8) How strong is the Baldwin 8011 deadbolt, and will it hold in a wood jamb?
The bolt is brass with a 1 inch throw, which is what lets it reach past the jamb face into the framing rather than just into the stop. The case is heavy gauge steel and it comes with a reinforcing high grade steel strike, which is the part that actually resists a kick. Fasten that strike with long screws into the stud behind the jamb, not just the jamb board.
9) Is the Baldwin 8011 deadbolt suitable for a commercial entrance or apartment corridor door?
It is classed as residential entrance hardware, so it suits houses, condo units and light residential openings. For a commercial door or a high-traffic multifamily opening, look at heavier commercial bolts such as the Design Hardware D1 Series Grade 1 double cylinder or the Delaney LU Series Grade 2 double cylinder.
10) What is a comparable contemporary double cylinder deadbolt if I want a different look than the Baldwin 8011?
For contemporary styling in a double cylinder bolt, the Emtek 8323 Modern Disc is a brass double cylinder option, and the Callan 210S is a Grade 3 double cylinder. If you want the square contemporary trim shape, Bravura's 310SC Elite is a Grade 2 contemporary square deadbolt, though it is cylinder x thumbturn rather than keyed both sides.
11) Is the Emtek 8323 Disc deadbolt a substitute for the Baldwin Estate 8011?
They are close in function and different in look. Both are double cylinder deadbolts, and the Baldwin 8011 carries contemporary styling with a 1-5/8 inch trim diameter. The Emtek 8323 is a brass Disc series double cylinder deadbolt, so it is the alternative when you want a decorative disc rose rather than the Baldwin Estate profile. The Baldwin runs a C-keyway 5-pin cylinder, which matters if the rest of the building is keyed on that section.
12) What is a simpler double cylinder deadbolt to standardize on across rental units instead of the Baldwin 8011?
The Baldwin Estate 8011 is a residential contemporary double cylinder deadbolt offered in oil rubbed bronze and satin black. For a plainer fleet spec, the Delaney LU Series double cylinder deadbolt is Grade 2 in stainless steel US32D, and the Callan Model 210S is a Grade 3 double cylinder deadbolt. Both keep key-both-sides operation with less decorative trim, which is the usual choice when the finish does not have to match a designer entry set.
13) Can I use an Arrow E61 or E60 deadlock in place of the Baldwin 8011?
Not as a like-for-like swap. The Baldwin Estate 8011 is a double cylinder deadbolt keyed on both sides with an adjustable 2-3/8 inch or 2-3/4 inch backset. The Arrow E61 is a single cylinder deadlock prepped for a small format interchangeable core and supplied less core, and the Arrow E60 is non-keyed entirely, with a blank plate outside and thumbturn inside for exit-only openings. Both Arrow units fit 1-3/8 inch to 1-3/4 inch doors, so they suit an SFIC keying program or a push-side exit door rather than a keyed-both-sides residential entry.
14) What finishes does the Baldwin Estate 8011 contemporary deadbolt come in?
Two: 102 Oil Rubbed Bronze and 190 Satin Black. Both are dark finishes that pair with contemporary trim, and the cylinder sits behind a free-turning solid brass cylinder guard that resists wrenching attacks.
15) What contemporary-styled single cylinder deadbolt pairs with the Baldwin Estate 8011 on other doors?
The Baldwin Estate 8011 is a contemporary double cylinder deadbolt in oil rubbed bronze or satin black. For openings on the same job that only need a thumbturn inside but a similar clean profile, the Bravura 310RC Elite is a Grade 2 contemporary round deadbolt and the Bravura 310SC Elite is the Grade 2 contemporary square version, both cylinder by thumbturn. The Brinks Mendocino Series is another contemporary square single cylinder deadbolt with a 4-way adjustable backset.
