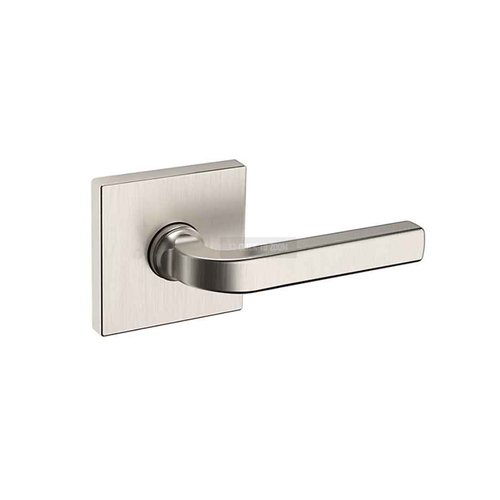

Baldwin L021 Lever Right Hand Half Dummy w/ R017 Rose

No latch at all. The L021 with R017 rose is a half dummy, which means a single lever on a surface-mounted rose with no latchbolt, no spindle through the door, and no key. It is a pull handle. Use it on a closet or pantry door held shut by a roller or ball catch, or on the inactive leaf of a French pair. If the door needs to stay closed on its own, you want a passage or privacy set instead.

The R017 rose mounts over the standard 2-1/8 inch cross bore Baldwin preps for, so pulling a knob or lever set off a prepped door and putting the L021 half dummy in its place works without new boring. What it will not do is fill the 1 inch edge bore for the latch. That hole stays empty behind the door edge unless you plug it or fit a catch.

The lever is reversible, so one part covers either hand. Mount it with the lever pointing the way you want it to sit and the rose orientation follows. On a pair of doors you would order two of the same item, not a left and a right.

Residential. The L021.RDM is a Baldwin residential leverset, so for corridor and common-area doors in a commercial or multi-family building look at a commercial dummy trim instead: the BEST 9K Series 1DT is a Grade 1 heavy duty single dummy trim, and the BEST 7KC Series 1DT is the Grade 2 medium duty version of the same idea. Accentra's 455LN Augusta single dummy is another Grade 1 option.

One L021 gives you a lever on one face only, so a pair of doors with a pull on each leaf takes two. If you want both faces of a single inactive leaf covered, order two as well, or look at a set sold as a pair such as the Emtek Classic Cortina dummy pair or the Emtek Arts and Crafts dummy pair.

The Baldwin L021 with R017 rose is a half dummy lever, meaning a single non-turning lever with no latch. Dummy-function levers from other makers include the Callan Bentley BN5051 dummy lever, the BEST 7KC Series single dummy trim, and the Emtek Cortina dummy, which ships as a pair rather than a single lever. The Emtek Arts & Crafts and Hammered dummy levers are also sold as pairs. If you need only one side of the door dressed, the single-lever options are the Baldwin L021, the Callan Bentley BN5051, and the BEST 7KC single dummy trim.

A half dummy lever is non-keyed and does not operate a latch, so it will not hold a door closed. For a door that needs to latch but not lock, a passage lever is the right function: the Bravura Tampa passage leverset carries square trim like the L021's square rose, and the Bravura Atlanta, Orlando, and Miramar are round-trim passage leversets. On the commercial side, the Falcon B101 is a Grade 2 passage lever and the Falcon K101 is a Grade 1 passage lock.

No. The L021 is a half dummy, a non-keyed pull with no locking mechanism. A bathroom or bedroom door needs privacy function: the Kwikset 300BRNL Breton is a Grade 3 privacy lever set, the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever, and the Arrow MK02-TA is a privacy lock with a Tudor knob rather than a lever.

Projection is 2.8 inches off the face, with a 4.5 inch lever grip. Worth checking against a wall the door swings flat against, or against a second door in a tight closet return, since a dummy lever is often fitted where clearance is already tight.

Eight finishes: 044 Satin Brass, 055 Polished Nickel, 056 Satin Nickel, 076 Graphite Nickel, 102 Oil Rubbed Bronze, 112/11P Venetian Bronze, 190 Satin Black, and 260 Polished Chrome. Because the L021 lever and R017 square rose are shared across Baldwin functions, you can run the same lever and rose on passage, privacy, and dummy openings and keep one finish through the floor.

A passage set has a working latch and turning levers on both faces, so the door stays shut and opens by pushing down. The L021 half dummy has neither. Pick the dummy where a catch or magnet holds the door and you only want the look and a grip; pick a passage set where the door must latch. Passage alternatives at a similar residential feel include the Bravura Tampa with square trim or the Callan Asheville; for a Grade 1 commercial passage, the Falcon K101.

It is a surface-mounted lever and rose, fastened to the door face, so there is no latch, strike, or spindle to fit and no mortising. If the door is not already prepped, you drill only for the rose mounting. Keep in mind a dummy does not hold a door closed, so budget for a ball catch or magnetic catch if the opening needs one.

The Baldwin L021 covers doors from 1.375 inch to 1.75 inch. For thicker stock, the Falcon K101 Grade 1 passage lock covers 1-3/8 inch to 2-1/4 inch, the Dexter C1000 asylum lock covers 1-3/8 inch to 2 inch, and the Hager 2510 Grade 2 passage lever covers 1-3/8 inch to 2 inch. The Corbin Russwin CL3110 Grade 1 passage lock is built for 1-3/4 inch to 2 inch doors.

Several levers share the look but not the function. The Accentra 5301LN Augusta and 4601LN are Grade 2 passage locks with a working latch, not dummy trim. The Cal-Royal AG05 is a Grade 2 storeroom lockset with a deadlocking latchbolt, and the Hager 2580 with Withnell lever is a Grade 2 storeroom lock, both keyed and latching. The Emtek Cortina and Arts & Crafts dummies are dummy function but ship as pairs, so ordering one covers two door faces rather than the single face a half dummy dresses.

The Baldwin L021 is a residential half dummy. Where the opening calls for a fire-rated lever, the Falcon K101 is a Grade 1 passage lock with a fire rating and covers 1-3/8 inch to 2-1/4 inch doors, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage lock with a fire rating for 1-3/4 inch to 2 inch doors. The Kwikset 200DL-RCALFD Delta passage lock uses a round corner adjustable 20 minute UL latch.

The Baldwin L021 is a non-keyed half dummy, so it handles the inactive faces. For keyless code entry on the active doors, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance covering 1-3/16 inch to 2 inch doors, the Lockey 2835DC adds a double combination, and the Lockey 1150S is a heavy duty mechanical keypad lever set with adjustable backset for 1-1/8 inch to 2 inch doors. Electronic options include the Delaney LP250 Grade 2 electronic keypad leverlock and the Emtek Classic keypad leverset.

The Baldwin L021 is prepped for a 2-3/8 inch backset. The Cal-Royal AG00 entrance lever is also a 2-3/8 inch backset with a 6-pin Schlage C keyway keyed different. The Cal-Royal AG03 classroom lever of the AG Series uses a 2-3/4 inch backset instead, so it will not drop into the same edge prep without rebore or an adjustable latch.

The Baldwin L021 is non-keyed and does not accept a cylinder, so it cannot secure an exterior door. Keyed entry levers include the Deltana 6201 Manchester, 6411 Morant, and 6431 Linstead entry levers, all covering 1-3/8 inch to 2 inch doors, the Hager 2525 Grade 2 commercial entry lock for 1-3/8 inch to 2 inch, the Cal-Royal AUS00 Grade 3 entrance/office lever with a solid brass forged body, and the Master Lock RL Series Grade 3 return style keyed entry lockset.

The listed backset is 2-3/8 inches, but on a half dummy it is a mounting reference rather than a latch dimension, since there is no latch running to the door edge. It tells you the rose centers where a standard 2-3/8 backset prep already put it. If your door is bored at 2-3/4, the rose still covers the face bore.

For a residential turnover where the L021's solid brass construction is more than the door needs, the Callan Asheville AH5011 is a Grade 3 passage leverset in satin nickel, the Kwikset 200BRNL Breton is a Grade 3 passage lever for 1-3/8 inch to 1-3/4 inch doors, and the Kwikset 200DL Delta passage lock is reversible with an adjustable 6AL latch and RCS strike. For dummy trim specifically, the Callan Bentley BN5051 is a Grade 2 dummy lever.

No. The L021 is a mechanical, non-keyed half dummy with no latch or electrical provision. For an access-controlled opening, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever lock running 12VAC/DC on 1-3/4 inch to 2 inch doors, offered with the NZ lever and D rose in the CL33903 Series and in a keyed 12VAC/DC configuration in the CL33900 Series.

The Baldwin L021 is a contemporary-style tubular lever with a square rose and a 4.5 inch grip length. For flat-lever passage sets in the same visual register, the Design Hardware J75 is a Grade 2 passage lockset with a flat lever for 1-3/4 inch doors, and the Design Hardware X75 is a Grade 1 passage lockset with a flat lever, also for 1-3/4 inch doors.
