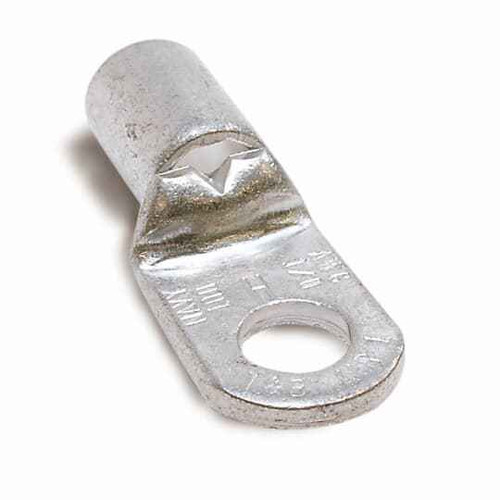

BARE TUB RNG TERM 90 DEG 2/0AN-3/0
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal - 90 Degree Bend
- Voltage Rating:
- 600 V
- Wire Size:
- 2/0AN-3/0
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Material:
- Copper
Sta-Kon K975U – Frequently Asked Questions
1) What wire size does the Sta-Kon K975U ring terminal take?
The K975U is sized for 2/0 AN through 3/0 conductor. It is a non-insulated (bare) copper tubular ring terminal, so the barrel is crimped directly onto the stripped conductor with no insulation sleeve to strip back or heat-shrink over. If your feeder is smaller than 2/0 or larger than 3/0, you need a different barrel size, not this one.
2) Why would I use a 90 degree ring terminal instead of a straight one?
The 90 degree bend in the K975U turns the ring tongue perpendicular to the barrel, so a heavy 2/0 to 3/0 conductor coming straight down a gutter or wireway can land flat on a horizontal bus pad or stud without bending the cable itself. On large copper that matters, a straight terminal would force a tight radius in the conductor to make the same landing. Use a straight tubular terminal where the pad is in line with the cable run.
3) Is the Sta-Kon K975U copper or aluminum, and can I put it on aluminum conductor?
The K975U barrel is copper, so it is intended for copper conductor. Aluminum feeders need a terminal listed for aluminum (or AL9CU dual rated) with the appropriate inhibitor compound; using a copper-only lug on aluminum risks a bad joint.
4) Is the Sta-Kon K975U rated for 600 volt circuits?
Yes, the K975U carries a 600 V rating, which covers typical commercial panelboard, switchgear, motor terminal box, and transformer lug work. Because it is a bare terminal with no insulation, keep normal clearance and tape or boot the termination where your installation requires covered connections.
5) Does the Sta-Kon K975U come with a bolt or hardware for the stud?
No. The K975U is the terminal only, a bare copper tubular ring lug with a 90 degree tongue. The bolt, nut, washers, and any insulating boot or tape for the finished termination are separate, and the crimp requires a hydraulic or hand crimper with the correct die for a 2/0 to 3/0 barrel.
