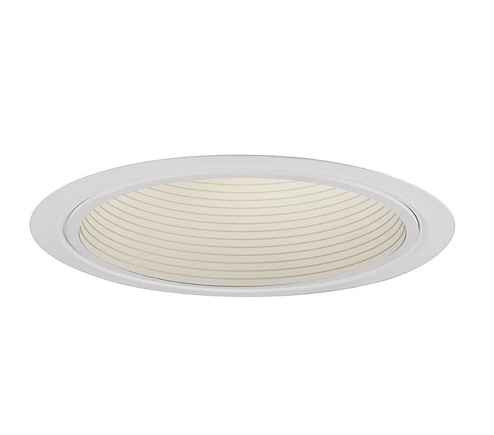

Philips Lighting 5" White Baffle Reflector Trim for Recessed Downlights
Professional recessed lighting trim for versatile applications
The Philips Lighting 5" White Baffle Reflector Trim delivers professional lighting performance for recessed downlight installations. This round trim features a white baffle design with reflector construction, supporting up to 85 watts with ER-30 lamp compatibility. Designed for recessed mounting with direct photometric distribution, this open downlight trim provides reliable illumination for residential and commercial applications.
Professional Features & Benefits
- 5" Aperture Size: Provides optimal light distribution for standard recessed downlight applications
- 85 Watt Capacity: Supports high-output ER-30 lamps for bright, effective illumination
- White Baffle Design: Reduces glare while maximizing light output and visual comfort
- Reflector Construction: Enhances light efficiency and directs illumination where needed
- Recessed Mounting: Clean, flush installation for professional appearance
- Direct Distribution: Focused downward light pattern for task and general lighting
- Round Profile: Classic design complements various architectural styles
Technical Specifications
- Aperture Size Code: 5 in
- Catalog Number: 1076WH
- Catalog Number Description: 5" Basic Baffle Black
- Downlight Type: Open Downlight
- Ean Upc Product: 7.84197E+11
- Lamp Envelope Code: ER-30
- Lamp Watts: 85
- Material Nr 12nc : 9.124E+11
- Mounting Method: Recessed
- Net Weight Piece : 0.001 kg
- Number Of Lamps: 1
- Numerator Packs Per Outer Box: 6
- Numerator Quantity Per Pack: 1
- Order Code: 9.124E+11
- Order Product Name: BASIC WHITE BAFFLE REFLECTOR TRIM
- Photometric Distribution Type: Direct
- Product Shape: Round
Professional Applications
- Residential Interior Lighting
- Commercial Office Spaces
- Retail Display Areas
- Hospitality Environments
- Educational Facilities
- Healthcare Settings
- Professional Service Areas
Why Choose Philips Lighting Quality?
Philips Lighting delivers trusted performance with professional-grade construction and reliable operation. This white baffle reflector trim combines proven design with quality materials for long-lasting illumination solutions in demanding applications.
Manufacturer Resources
Spec Sheet
Product Specs
- Aperture Size Code:
- 5 in
- Catalog Number:
- 1076WH
- Catalog Number Description:
- 5" Basic Baffle Black
- Downlight Type:
- Open Downlight
- Ean Upc Product:
- 7.84197E+11
- Lamp Envelope Code:
- ER-30
- Lamp Watts:
- 85
- Material Nr 12nc :
- 9.124E+11
- Mounting Method:
- Recessed
- Net Weight Piece :
- 0.001 kg
- Number Of Lamps:
- 1
- Numerator Packs Per Outer Box:
- 6
- Numerator Quantity Per Pack:
- 1
- Order Code:
- 9.124E+11
- Order Product Name:
- BASIC WHITE BAFFLE REFLECTOR TRIM
- Photometric Distribution Type:
- Direct
- Product Shape:
- Round
- Product Type:
- Reflector Trim
- Department:
- Electrical
- Product Subgroup:
- Trims & Accessories
Philips Lighting 1076WH – Frequently Asked Questions
1) What lamp does the Philips 1076WH 5 inch baffle trim take, and how many watts can it handle?
The 1076WH baffle reflector trim is built around a single ER-30 lamp and is rated to 85 watts. One lamp per trim, so it is a one-for-one downlight, not a multi-lamp fixture. If the cans you are trimming out are lamped with something other than an ER-30 envelope, that is the spec to settle before you order, because the reflector geometry is matched to that lamp shape.
2) Is a baffle trim or a smooth reflector trim better for an office ceiling where people complain about glare?
A baffle trim is the one you want when glare is the complaint. The ribbed baffle absorbs the light that would otherwise bounce off the cone wall straight into someone's eye line, so the lamp reads softer from a desk or a seat. A smooth reflector cone does the opposite, it pushes more lumens down but keeps a brighter aperture. The Philips 1076WH is a baffle reflector trim with direct photometric distribution, meaning the light goes straight down rather than spreading across the ceiling, which suits task areas and general downlighting over open floor.
3) Is the Philips 1076WH an open downlight or a lensed or shower trim?
Open downlight. The 1076WH has no lens, no glass, and no gasket across the aperture, so the lamp sits behind an open baffle. That is fine for dry interior ceilings and corridors. For a shower, a soffit, or anywhere the fixture takes moisture or needs to be sealed, an open trim is not the right choice and you should be specifying a lensed or wet location listed trim instead.
4) What part number do I give my distributor to reorder the same Philips 5 inch baffle trim?
The catalog number is 1076WH, and that is also the manufacturer part number to quote. Philips Lighting is the brand. Give that number plus the aperture, 5 inch, and you will land on the same trim you already have in the ceiling, which matters when you are matching the rest of an existing run rather than starting fresh.
5) How do Philips 1076WH downlight trims come packed for a multi-unit or whole-floor order?
Each pack holds one trim, and an outer box holds six packs. So a carton of the 1076WH covers six cans. If you are trimming out a floor or standardizing a building's downlights, count your openings and order in sixes to land on whole cartons rather than breaking a box.
