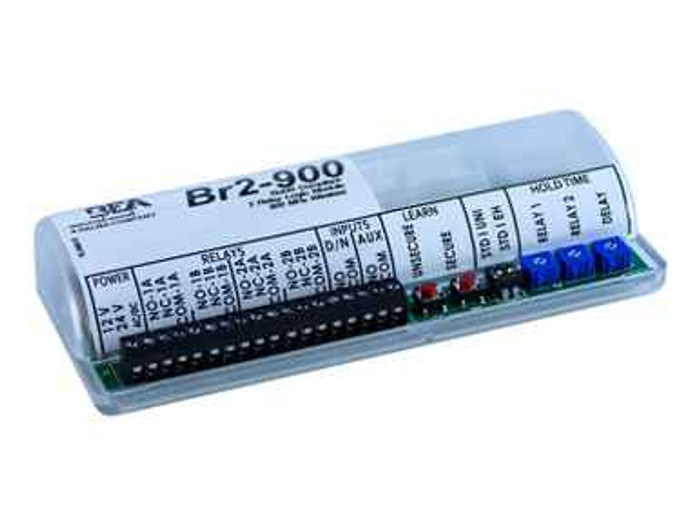

BEA BR2-900 Logic Module with 900 MHz Wireless Technology and 2-Relay Sequenced Activation

BEA BR2-900 Logic Module with 900 MHz Wireless Technology and 2-Relay Sequenced Activation

Advanced Wireless Logic Control for Automatic Door and Access Systems

The BEA BR2-900 is a professional-grade 2-relay logic module featuring built-in 900 MHz wireless technology designed for wireless MC25 functionality. This advanced module provides sequencing of electric locking devices and automatic door activation with Day/Night Mode capability for secure or unsecure access designation at controlled entry points. The industry-first Universal Mode allows prelearned 900 MHz Universal Transmitters to function directly out of the box without programming, saving installation time and enhancing accessibility.

Professional Features & Benefits

• Dual Relay Configuration: 2-relay logic module provides sequenced or simultaneous relay activation for flexible control of multiple devices.
• 900 MHz Wireless Technology: Built-in wireless capability eliminates wiring requirements while maintaining reliable communication with compatible transmitters.
• Day/Night Mode Operation: Wireless receiver enables designation of secure or unsecure access periods for controlled entry points via DRY Day/Night Input.
• Universal Mode Technology: Industry-first feature allows prelearned 900 MHz Universal Transmitters to operate immediately without programming requirements.
• Comprehensive Compatibility: Works with all existing BEA 900 MHz transmitters and devices plus the 900 MHz Universal Transmitter for versatile system integration.
• MC25 Wireless Functionality: Designed specifically to provide wireless MC25 functionality for automatic door and access control applications.
• Time-Controlled Access: Push plates with wireless transmitters can be programmed to operate during specific time periods for enhanced security management.
• Professional Installation Support: Comprehensive documentation including user guide, cut sheet, and family comparison resources for proper installation and configuration.

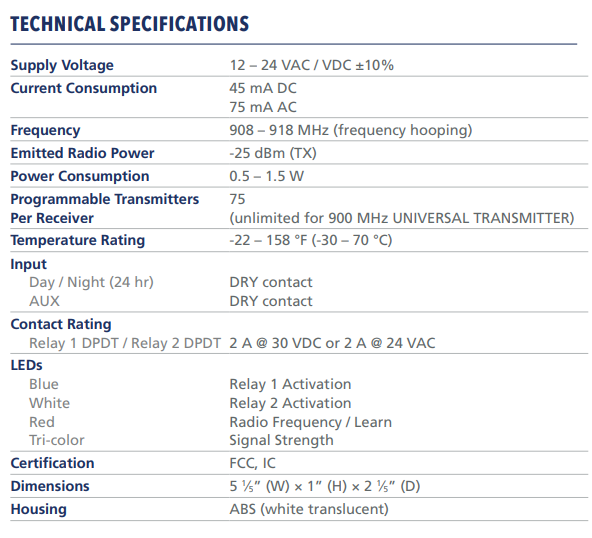

Technical Specifications

• Supply Voltage: 12 - 24 VAC / VDC +/-10%
• Current Consumption: 45 mA DC | 75 mA AC
• Frequency: 908 - 918 MHz (frequency hopping)
• Emitted Radio Power: -25 dBm (TX)
• Power Consumption: 0.5 - 1.5 W
• Programmable Transmitters Per Receiver: 75 (unlimited for Universal Transmitter)
• Temperature Rating: -22 deg. F - 158 deg. F (-30 deg. C - 70 deg. C)
• Input (Day / Night / AUX): DRY contact
• Contact Rating Relay 1 & 2 (DPDT): 2 A @ 30 VDC or 2 A @ 24 VAC
• LEDs: BLUE: Relay 1 Activation | WHITE: Relay 2 Activation | RED: Radio Frequency / Learn | TRI-COLOR: Signal Strength
• Certification: FCC, IC
• Dimensions: 5.2 in (W) x 1.0 in (H) x 2.2 in (D)
• Housing: ABS (white translucent)

Installation & Operation

1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including Day/Night Mode and relay sequencing per application requirements.
6. Restore power and test all functions including normal operation, wireless communication, and integration with connected transmitters and devices.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Automatic Door Control Systems
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• Retail Access Management
• Multi-Tenant Building Entry Control

Universal Mode Technology

The BR2-900 features industry-first Universal Mode technology that allows prelearned 900 MHz Universal Transmitters to function directly out of the box without requiring programming. This innovative feature significantly reduces installation time while enhancing system accessibility and simplifying deployment in various access control applications.

Why Choose BEA Quality?

BEA BR2-900 Logic Module delivers professional-grade wireless control technology with comprehensive compatibility across all existing BEA 900 MHz transmitters and devices. The innovative Universal Mode and Day/Night functionality provide enhanced flexibility for demanding commercial access control applications. Engineered for reliable performance in automatic door and security system integration where dependable wireless operation is essential.
