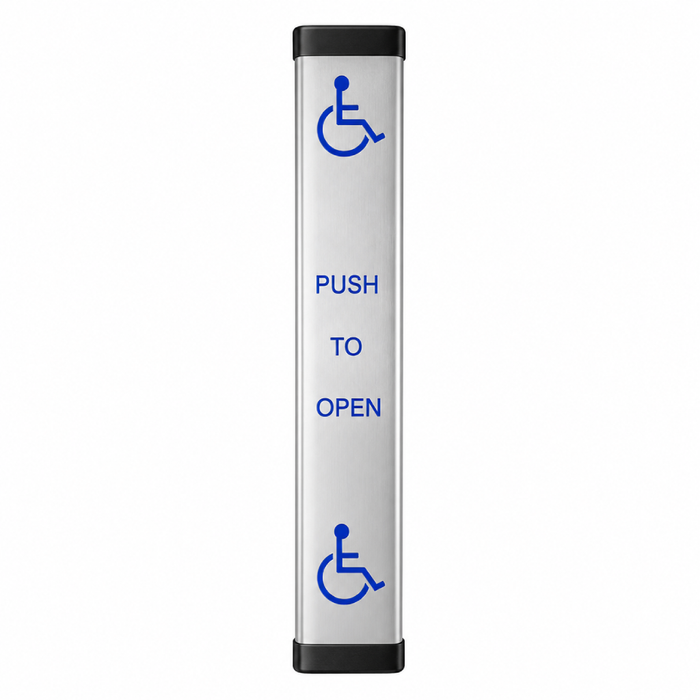

BEA 10LPR36-900 Full Length Actuator with 36" Vertical Actuation Bar and 900 MHz Wireless

BEA 10LPR36-900 Full Length Actuator with 36" Vertical Actuation Bar and 900 MHz Wireless

ADA-Compliant Full-Length Activation Solution

The BEA 10LPR36-900 is a 36-inch full-length actuator that exceeds all local ADA building codes requiring high and low actuators, eliminating the need to install two separate devices. This stainless steel plate utilizes four highly-sensitive membrane switches with 900 MHz wireless transmission capability, ensuring actuation across the entire surface for enhanced accessibility. The low profile 1-inch deep design helps prevent accidental damage in high traffic areas while providing reliable activation for automatic doors.

Professional Features & Benefits

• Full-Length 36" Design: Exceeds ADA building codes requiring high and low actuators, eliminating the need for two separate devices in a single installation.
• 900 MHz Wireless Technology: Built-in wireless transmitter provides convenient installation without hardwiring requirements for flexible placement options.
• Four Membrane Switch Construction: Highly-sensitive membrane switches require very little force and ensure reliable actuation across the entire 36" surface area.
• Stainless Steel Construction: Durable stainless steel plate construction provides long-term reliability and resistance to wear in high-traffic commercial applications.
• Low Profile Design: 1-inch deep profile minimizes protrusion and helps prevent accidental damage in busy pedestrian areas.
• Enhanced Accessibility: Designed specifically to provide activation means for individuals with limited mobility or disabilities across the full height range.
• Code Compliance: Exceeds California Building Code 2013, Page 559, 11B-404.2.9, Exception 2c for accessibility requirements.
• Versatile Mounting Options: Can be conveniently wall or bollard mounted in a variety of locations for optimal placement.

Technical Specifications

• Contact Configuration: SPST N.O.
• Switching Voltage: 0.1 - 50 VDC
• Switching Capacity: 1 Watt
• Switching Current: 0.005 - 100 mA DC
• Operation Temperature: -32 deg. F - 212 deg. F (-35 deg. C - 100 deg. C)
• Base Material: 6063 Aluminum
• Face Plate: 304 Stainless Steel
• Switch Actuator Material: Nylon 66
• End Cap Material: UL94 ABS
• Hardware: Stainless Steel
• Compliance: California Building Code 2013, Page 559, 11B-404.2.9, Exception 2c

Installation & Operation

1. Verify electrical requirements and confirm 900 MHz wireless frequency compatibility with existing automatic door control systems before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified wall or bollard location ensuring adequate clearance for activation and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams if hardwired backup is required. Use appropriate wire gauge and connectors for the application.
5. Configure wireless transmission settings and pair with automatic door controller per manufacturer programming instructions.
6. Restore power and test all functions including membrane switch activation across the entire 36" surface, wireless transmission, and integration with automatic door systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Healthcare Facility Accessibility Compliance
• Educational Institution ADA Requirements
• Retail Establishment Entry Systems
• Government and Municipal Building Access
• Multi-Tenant Residential Accessibility
• Industrial Facility Pedestrian Access Points

Why Choose BEA Quality?

BEA electronic access control products deliver professional-grade reliability with stainless steel construction and highly-sensitive membrane switch technology designed for demanding commercial applications. The LPR36 series exceeds California Building Code accessibility requirements while providing enhanced functionality for individuals with limited mobility. Engineered for high-traffic environments where dependable automatic door activation and ADA compliance are essential.
