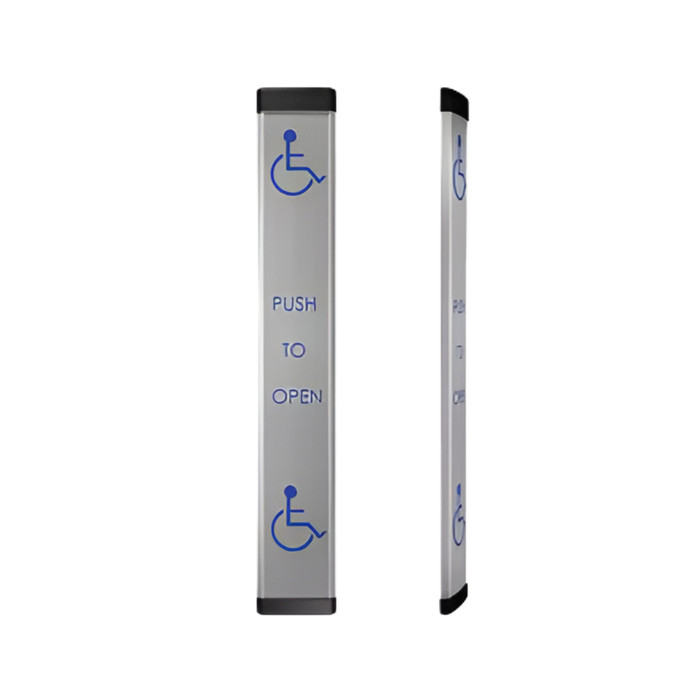

BEA 10LPR36433 LPR36 Full Length Actuator with 36" Vertical Actuation Bar and 433 MHz Wireless

BEA 10LPR36433 LPR36 Full Length Actuator with 36" Vertical Actuation Bar and 433 MHz Wireless

ADA-Compliant Full-Length Activation Solution

The BEA 10LPR36433 LPR36 is a 36-inch full-length actuator that exceeds all local ADA building codes requiring high and low actuators, eliminating the need to install two separate devices. This stainless steel plate utilizes four highly-sensitive membrane switches that require very little force and ensure actuation across the entire surface with 433 MHz wireless transmission capability. The low profile 1-inch deep design helps prevent accidental damage in high traffic areas while enhancing accessibility for those with limited mobility or disabilities.

Professional Features & Benefits

• 36-Inch Full-Length Design: Exceeds all local ADA building codes requiring high and low actuators, eliminating the need for two separate devices.
• 433 MHz Wireless Transmission: Built-in wireless transmitter provides convenient wireless activation applications without hardwiring requirements.
• Four Highly-Sensitive Membrane Switches: Require very little force and ensure actuation across the entire surface for enhanced accessibility.
• Stainless Steel Construction: Durable weather-resistant construction suitable for both indoor and outdoor applications.
• Low Profile Design: 1-inch deep profile helps prevent accidental damage in high traffic areas while maintaining aesthetic appeal.
• ADA Code Compliance: Exceeds California Building Code 2013, Page 559, 11B-404.2.9, Exception 2c for accessibility requirements.
• Versatile Mounting Options: Can be conveniently mounted in wall or bollard configurations for various installation locations.
• Enhanced Accessibility: Provides activation means for automatic doors specifically designed for those with limited mobility or disabilities.

Technical Specifications

• Contact Configuration: SPST N.O.
• Switching Voltage: 0.1 - 50 VDC
• Switching Capacity: 1 Watt
• Switching Current: 0.005 - 100 mA DC
• Operation Temperature: -32 deg. F - 212 deg. F (-35 deg. C - 100 deg. C)
• Base Material: 6063 Aluminum
• Face Plate: 304 Stainless Steel
• Switch Actuator Material: Nylon 66
• End Cap Material: UL94 ABS
• Hardware: Stainless Steel
• Compliance: California Building Code 2013, Page 559, 11B-404.2.9, Exception 2c

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm voltage per specifications and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including wireless frequency settings per application requirements.
6. Restore power and test all functions including normal operation, wireless transmission, and integration with connected automatic door systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Healthcare Facility Accessibility Compliance
• Educational Institution ADA Requirements
• Retail Establishment Entry Systems
• Government and Municipal Building Access
• Multi-Tenant Residential Properties
• Industrial Facility Personnel Access

Why Choose BEA Quality?

BEA LPR36 actuators deliver professional-grade accessibility solutions with stainless steel construction and weather-resistant design rated for demanding commercial applications. The four highly-sensitive membrane switches and 433 MHz wireless capability ensure reliable activation across the entire 36-inch surface. Engineered to exceed ADA building codes while providing enhanced accessibility for those with limited mobility or disabilities.
