BEA BEA 10LE21 - Logic Module, Single Function, Lock Out for Low Energy Doors 10LE21

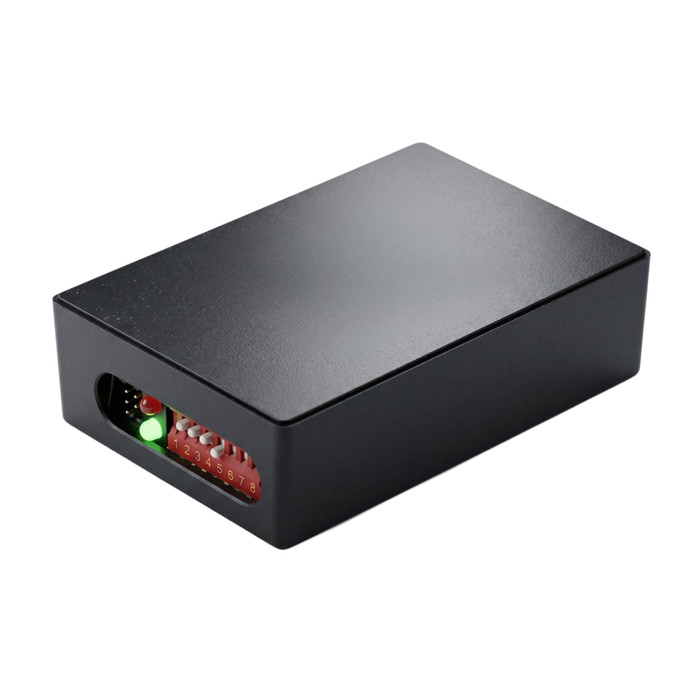

BEA 10LE21 SuperScan Lock Out Logic Module for Low Energy Automatic Doors

(No reviews yet) Write a Review

Model: BEA-10LE21

In Stock (leaves warehouse same day if ordered before 3pm ET)

$66.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 10LE21 SuperScan Lock Out Logic Module for Low Energy Automatic Doors

Professional Logic Control for Manual and Automatic Door Operation

The BEA 10LE21 LE-21 SuperScan Lock Out Logic Module provides intelligent control for low energy automatic doors that operate both manually and automatically. This single-function logic module inhibits the Approach SuperScan when doors are used manually, ensuring proper activation only through push plate triggers on knowing act doors. The module maintains SuperScan activation throughout the automatic operation cycle until the door reaches full closure, while preventing SuperScan input during manual operation.

Professional Features & Benefits

  • Intelligent SuperScan Control: Inhibits Approach SuperScan activation during manual door operation while maintaining automatic functionality for push plate triggered cycles.
  • Door Position Integration: Works with door position switches to detect full closure and reset SuperScan activation for the next automatic cycle.
  • Hold Open Time Management: Provides integrated hold open time delay, allowing door control time delay to be set to minimum for optimized operation.
  • Manual Override Protection: Automatically prohibits SuperScan input from reaching door control when doors are opened manually, preventing operational conflicts.
  • Low Energy Door Compatibility: Specifically designed for low energy operators that require both manual and automatic operation modes.
  • Single Function Design: Dedicated lock out relay functionality ensures reliable and consistent performance in automatic door applications.

Technical Specifications

  • Supply Voltage: 12 - 24 VAC / VDC +/-10%
  • Power Consumption: 30 - 130 mA; DRY Output
  • Temperature Range (BR3): -15 deg. F - 150 deg. F
  • Temperature Range (BR3-X): -15 deg. F - 150 deg. F (*130 deg. F max if using AC voltage with WET output > 0.9 A)
  • Dimensions: 5.2 in (W) x 1 in (H) x 2.2 in (D)
  • Relay Hold Time: Up to 60 seconds per relay
  • Delay Between Relays: Up to 60 seconds per relay with 1/4, 1/2 and 3/4 second options
  • Housing Material: ABS Plastic
  • Input Specification (Inputs 1, 2, 3, 4): DRY contact
  • WET Input: 5 - 24 VAC / VDC +/-10%
  • Contact Rating Relay 1 (DRY): 3 A @ 24 VAC / 30 VDC
  • Contact Rating Relay 1 (WET): 1 A
  • Contact Rating Relay 2: 3 A @ 24 VAC / 30 VDC
  • Contact Rating Relay 3: 1 A @ 24 VAC / 30 VDC

Installation & Operation

  1. Verify electrical requirements match available power supply and confirm compatibility with existing door control system before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the LE-21 module in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Connect door position switch, push plate activation, and SuperScan sensor per application requirements.
  5. Configure operational settings including hold open time delay and door position switch integration per application requirements.
  6. Restore power and test all functions including manual door operation, automatic push plate activation, SuperScan inhibition during manual use, and proper reset upon door closure.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Automatic Door Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Retail Entrance Automation
  • Industrial Facility Access Points
  • Low Energy Door Operator Integration
  • Knowing Act Door Applications

Why Choose BEA Quality?

BEA logic modules deliver professional-grade reliability with specialized single-function design engineered for demanding automatic door applications. The LE-21 series provides intelligent control solutions that ensure proper operation in mixed manual and automatic door environments. Engineered for commercial applications where dependable performance and precise control integration are essential.

Product Specs

Product Type:
Logic Module
Series:
LE-21
Subcategory:
Sensors, Switches, Relays and Timers
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA BEA-10LE21 – Frequently Asked Questions

1) What does the BEA LE-21 lock out module actually do on a low energy door?
On a knowing act low energy door that gets used both manually and automatically, the LE-21 blocks the approach SuperScan signal from reaching the door control when someone pulls the door open by hand. The scan stays inhibited so it can't fight the manual pull, and it only activates on a push plate triggered cycle. It's a single function lock out relay, so that's the whole job it does.
2) What voltage does the BEA 10LE21 logic module need, and can I run it off my existing door operator power?
Supply is 12 to 24 VAC or VDC, plus or minus 10 percent, drawing 30 to 130 mA. Most low energy operators have an accessory output in that range, so it usually runs off the operator rather than a separate supply. The four inputs are dry contact; a wet input takes 5 to 24 VAC/VDC plus or minus 10 percent.
3) Do I need a door position switch to use the BEA LE-21 SuperScan lock out module?
Yes. The module reads a door position switch to know when the leaf has come back to full closure, and that closure signal is what resets SuperScan activation for the next automatic cycle. Without a position switch on the door there's nothing to tell the module the cycle finished. The switch is a separate item, not part of the module.
4) Will the LE-21 module fit inside my door operator header?
The LE-21 measures 5.2 in (W) x 1 in (H) x 2.2 in (D) in an ABS plastic housing. At an inch tall it drops into most low energy operator headers, but check the depth against the clear space behind your cover plate and leave room for the wiring landings on the terminal side.
5) Can I switch a maglock or electric strike directly off the BEA 10LE21?
Check the current draw first. Relay 1 is rated 3 A at 24 VAC / 30 VDC on the dry output but only 1 A when used wet. Relay 2 is 3 A at 24 VAC / 30 VDC, and Relay 3 is 1 A at 24 VAC / 30 VDC. A typical 12 or 24 VDC strike or maglock sits well under those numbers, but a lock inrush above the relay rating needs an interposing relay instead of a direct connection.
6) Do I still set hold open time on the door operator if I install the LE-21?
No, run the hold open from the module. The LE-21 carries its own hold open time delay, so the door control's time delay gets turned down to minimum and the module governs the cycle. Relay hold time is adjustable up to 60 seconds per relay, with delay between relays also up to 60 seconds and 1/4, 1/2 and 3/4 second increments available.
7) Is the BEA LE-21 the right module if my automatic door is never operated manually?
No, it solves a problem you don't have. The LE-21 exists for low energy operators that see both manual and automatic use, where the approach scan needs to be locked out during a hand pull. On a door that only ever cycles from an actuator or a full activation sensor, there's nothing to inhibit, and you'd look at a different single function logic module in the BEA line for whatever the actual sequence is.
8) Can the BEA 10LE21 go in an unheated vestibule or an exterior entrance?
Operating range is -15 deg. F to 150 deg. F, which covers an unheated vestibule or a header on an exterior entrance in most of the country. One caveat on the extended version: 130 deg. F is the max if you're running AC voltage with a wet output above 0.9 A.
9) Is the BEA 10LE21 suitable for a hospital or school entrance, or is it a residential part?
Commercial grade, and that's the only way it's sold. Typical placements are healthcare facility access control, educational institution entrances, retail and industrial entrances, and any knowing act low energy door application. It's an electronic access control device, not a residential item.
10) How many inputs does the BEA LE-21 logic module have for wiring up the push plate, scan and position switch?
Four inputs, all dry contact, which covers the three signals a lock out sequence needs: push plate activation, the approach SuperScan, and the door position switch, with one spare. If a device you're landing is a powered output rather than a contact, use the wet input, rated 5 to 24 VAC/VDC plus or minus 10 percent.
