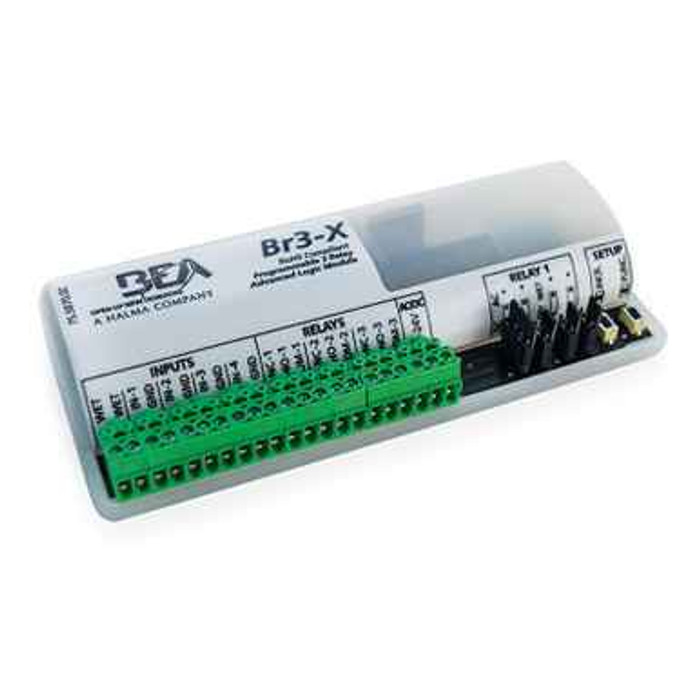

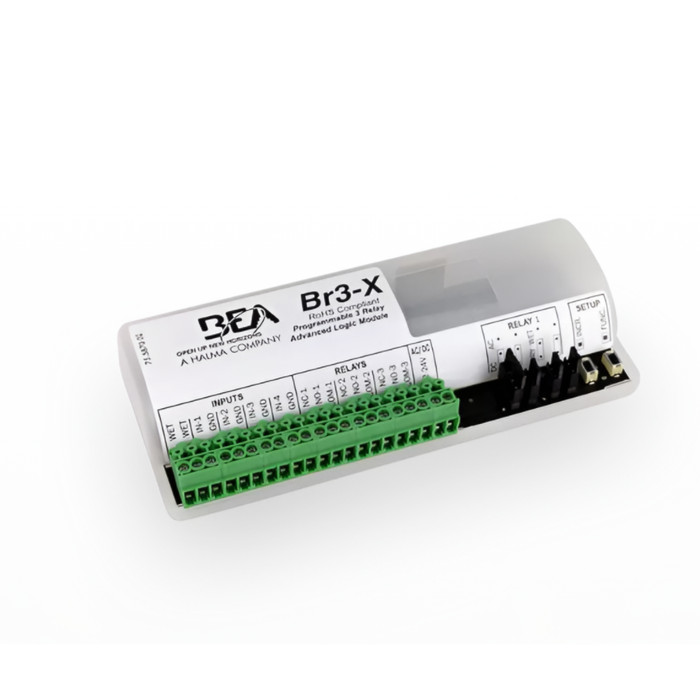

BEA Br3-X Advanced Logic Module front view showing labeled terminal blocks, relay outputs, and 7-segment display

BEA BR3-X Programmable 3-Relay Logic Module with 13 Logic Functions

(No reviews yet) Write a Review

Model: 10BR3X
Selected Logic Module is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$163.93
$107.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA BR3-X Programmable 3-Relay Logic Module

The BEA BR3-X is a programmable logic module with 13 selectable logic functions and 3 independent relay outputs for commercial access control and door automation. It accepts 12-24 VAC/VDC (+/-10%) and supports dry-contact and wet-input wiring configurations. Typical applications include automatic pedestrian doors, interlock systems, single-occupancy restroom control, and multi-relay sequencing for building access.

13 Programmable Logic Functions

  • Timer
  • Ratchet/Latching
  • Inhibitor
  • 2-Relay Sequencer with Inhibitor
  • 2-Relay Sequencer with Door Position Deactivation Timer
  • 3-Relay Sequencer with 1-Shot
  • 3-Relay Sequencer with Independent Relay
  • Interlock Timer
  • Interlock Ratchet/Latching
  • 2-Way 2-Relay Sequence
  • Normally Locked Restroom
  • Normally Unlocked Restroom
  • 3-Relay Sequencer with Day/Night Mode

Technical Specifications

  • Supply Voltage: 12-24 VAC/VDC +/-10%
  • Power Consumption: 30-130 mA; DRY Output
  • Operating Temperature (BR3-X): -15 deg. F to 150 deg. F (*130 deg. F max when using AC voltage with WET output > 0.9 A)
  • Dimensions: 5.2 in (W) x 1 in (H) x 2.2 in (D)
  • Relay Hold Time: Up to 60 seconds per relay
  • Delay Between Relays: Up to 60 seconds per relay; 1/4, 1/2, and 3/4 second options available
  • Housing Material: ABS Plastic
  • Inputs 1-4: DRY contact
  • WET Input: 5-24 VAC/VDC +/-10%
  • Contact Rating Relay 1 (DRY): 3 A @ 24 VAC / 30 VDC
  • Contact Rating Relay 1 (WET): 1 A
  • Contact Rating Relay 2: 3 A @ 24 VAC / 30 VDC
  • Contact Rating Relay 3: 1 A @ 24 VAC / 30 VDC

Applications

  • Automatic Pedestrian Door Control
  • Commercial Building Access Control
  • Single-Occupancy Restroom Management
  • Multi-Relay Sequencing and Interlock Systems
  • Healthcare and Institutional Door Automation

Product Specs

Product Type:
Logic Module
Series:
BR3-X
Subcategory:
Sensors, Switches, Relays and Timers
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA 10BR3X – Frequently Asked Questions

1) Will the BEA BR3-X logic module run off my 24V door operator power supply?
The BR3-X runs on 12 to 24 VAC or VDC, plus or minus 10 percent, so a standard 24V access control or operator supply powers it directly. Draw is 30 to 130 mA, which is small enough to share an existing supply as long as you have that headroom after the strikes and operators are counted. If you are feeding a wet input rather than dry contacts, that input takes 5 to 24 VAC/VDC.
2) Can the BR3-X switch my electric strike and maglock directly, or do I need a separate relay?
Check the amps against the relay you land on. Relay 1 and relay 2 are each rated 3 A at 24 VAC / 30 VDC dry. Relay 3 is the small one at 1 A @ 24 VAC / 30 VDC. If you use relay 1 wet instead of dry, it drops to 1 A. Most 24 VDC electric strikes and maglocks sit well under 3 A, so relay 1 or 2 handles them. Put the low-draw stuff (operator activation input, signal to a card reader panel, an indicator) on relay 3, and add an interposing relay for anything above the rating on the leg you have chosen.
3) How do I sequence an automatic door so the lock releases before the operator opens?
That is what the sequencer functions on a BR3-X are for. It carries 13 selectable logic functions, including a 2-relay sequencer with inhibitor, a 2-relay sequencer with door position deactivation timer, a 3-relay sequencer with "1-shot", and a 3-relay sequencer with an independent relay. You set the delay between relays, up to 60 seconds, with 1/4, 1/2 and 3/4 second increments available, which is the range you actually work in for a lock-then-open sequence. Hold time is adjustable up to 60 seconds per relay.
4) Is there a logic module that will run a single-occupancy restroom with an occupied indicator?
The BR3-X has two dedicated restroom modes built in, normally locked and normally unlocked, so you do not have to build the logic out of discrete timers and relays. With three relays you can drive the lock, the operator, and an occupied indicator or annunciator off one module. The restroom modes are two of the 13 functions you select on the unit.
5) Can the BEA BR3-X handle a vestibule interlock so both doors cannot be open at once?
Yes, two ways. There is an interlock timer function and an interlock ratchet/latching function among the selectable modes. The timer version releases the second door after a set period, the ratchet version holds the state until it is reset. A 2-way 2-relay sequence mode is also on board if you need the sequence to run in either direction of travel.
6) What kind of inputs does the BR3-X take from a push plate or card reader?
All four inputs (1, 2, 3 and 4) are dry contact. A push plate, a wall switch, a motion sensor relay output, or the dry form-C output of an access control panel wires straight in. If your source device only gives you a voltage signal, the module also accepts a wet input at 5 to 24 VAC/VDC. Four inputs is what lets one module take an interior actuator, an exterior actuator, a card reader release and a door position switch at the same time.
7) What size enclosure or header space do I need for a BR3-X logic module?
The module measures 5.2 in (W) x 1 in (H) x 2.2 in (D) in an ABS plastic housing, so it fits in a door header, a transom, or alongside other boards in a control cabinet. Leave clearance beyond those numbers for wiring access and service, since all terminal blocks land on the face of the unit.
8) Can I mount a BR3-X in an unheated vestibule or an exterior door header?
Operating range is -15 deg. F to 150 deg. F, which covers most unconditioned headers and vestibules in North America. One caveat worth knowing: if you are running AC voltage with a wet output above 0.9 A, the top of the range drops to 130 deg. F.
9) Can one logic module lock a door at night and leave it on automatic during the day?
The BR3-X includes a 3-relay sequencer with day/night mode, so the same unit can run one behavior during business hours and a different one after hours, switched from a timeclock or panel output into one of its dry contact inputs. That is the function to select when a storefront or lobby entrance has to go from free automatic operation to credential-only.
10) Do I need a separate timer relay if I already have a BR3-X?
No. A plain timer function is one of the 13 selectable modes, along with ratchet/latching and inhibitor functions, so the module covers what a standalone timer relay or latching relay would have done. Hold time is adjustable to 60 seconds per relay. Buying discrete timers alongside it duplicates capability you already have on the board.
11) How do I know which logic function the BR3-X is set to after it's installed?
The module has a 7-segment display on its face alongside the labeled terminal blocks, so the selected function reads off the unit itself rather than a dip switch chart you have to decode. That matters on service calls, where the tech who arrives is rarely the one who programmed it. Wiring diagrams and the full programming procedure are in the BEA BR3-X User's Guide.
12) Is the BEA BR3-X a residential product or is it built for commercial buildings?
Commercial. It is specified for automatic pedestrian door control, commercial building access control, industrial automation, healthcare and education door systems, and multi-tenant facility access. The dry-contact input scheme and 12-24 VAC/VDC supply are what commercial operator and access panel wiring expects.
13) Is the BR3-X a single part number or do I have to pick options?
One configuration, ordered as BEA BR3-X. There is nothing to hand or specify at order time, because all 13 logic functions and the relay timing live in the programming, not in the part number. You select the function on site once it is powered.
