BEA 10MAGLOCK1UL Single Electromagnetic Surface Mount Lock with 1200 LB Holding Force

BEA 10MAGLOCK1UL Single Electromagnetic Surface Mount Lock with 1200 LB Holding Force

Professional Electromagnetic Locking Solution for Commercial Access Control

The BEA 10MAGLOCK1UL electromagnetic lock delivers reliable access control with 1200 LB holding force for mid- to high-level traffic applications. Operating on 12/24 VDC power, this surface mount electromagnetic lock provides standards-compliant security for commercial buildings including retail, healthcare, financial, education, and storage facilities. The aluminum construction ensures durability while maintaining compatibility with hollow metal, wood, aluminum, glass, and composite door materials.

Professional Features & Benefits

• High Holding Force: 1200 LB holding force provides secure locking for mid- to high-level traffic commercial applications.
• Flexible Power Options: 12/24 VDC operation allows integration with various access control systems and power supplies.
• Universal Door Compatibility: Works with hollow metal, wood, aluminum, glass, and composite door materials for versatile installation options.
• Adjustable Relock Timing: Zero to 90 second relock time delay allows customization for specific security requirements and traffic patterns.
• Lock Status Monitoring: Integrated bond status sensor provides real-time feedback on lock engagement for system monitoring.
• Surface Mount Design: Single door surface mount configuration simplifies installation without requiring door modification.
• Durable Construction: Aluminum finish provides corrosion resistance and professional appearance for commercial environments.
• Standards Compliance: Designed to meet access control system requirements for commercial building applications.

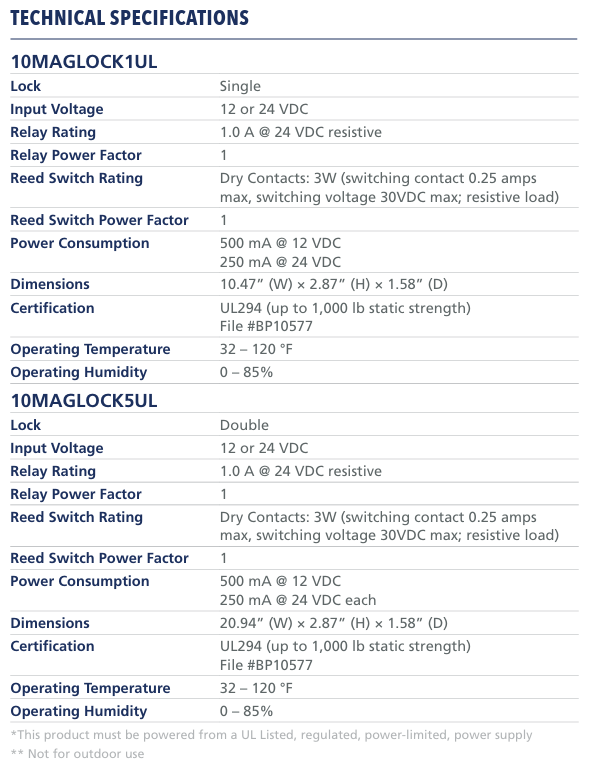

Technical Specifications

• Door Configuration: Single, surface mount
• Holding Force: 1200 lb
• Input Voltage: 12 / 24 VDC (UL Listed power supply required)
• Current Draw: 0.50 A @ 12 VDC; 0.30 mA @ 24 VDC
• Dimensions: 10.47 in (W) x 2.87 in (H) x 1.58 in (D)
• Material: Anodized Aluminum housing
• Relock Time Delay: 0 s - 90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24 VDC voltage and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including relock time delay (zero to 90 seconds) and bond status sensor per application requirements.
6. Restore power and test all functions including normal operation, lock engagement, bond status feedback, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Financial Institution Security
• Storage Facility Access Points
• Emergency Exit Compliance Systems

Why Choose BEA Quality?

BEA electromagnetic locks deliver professional-grade reliability with aluminum construction and 1200 LB holding force rated for demanding commercial applications. The adjustable relock timing and integrated bond status sensor provide the flexibility and monitoring capabilities essential for modern access control systems. Engineered for standards-compliant performance in retail, healthcare, financial, education, and storage facility environments where dependable electromagnetic locking is critical.
