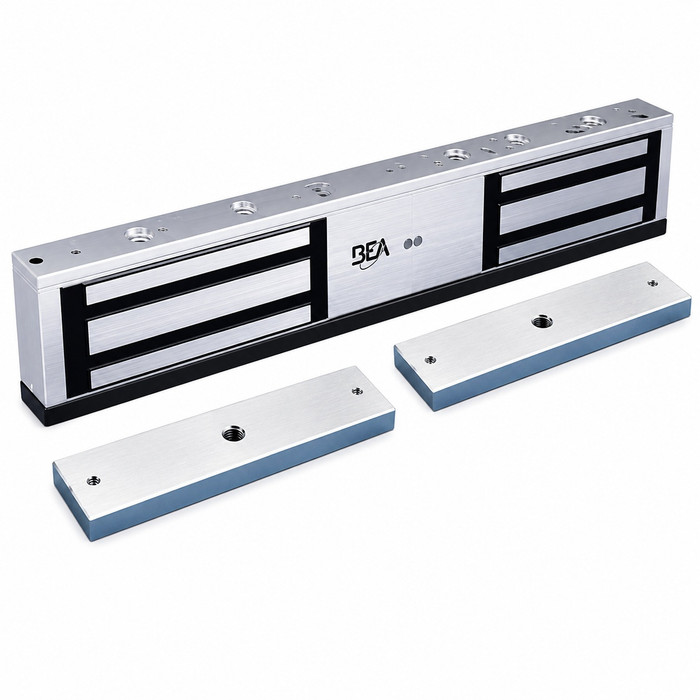

BEA 10MAGLOCK6UL Double Electromagnetic Surface Mount Lock with 600 lb Holding Force

BEA 10MAGLOCK6UL Double Electromagnetic Surface Mount Lock with 600 lb Holding Force

Professional Electromagnetic Locking Solution for Commercial Access Control

The BEA 10MAGLOCK6UL electromagnetic lock delivers reliable access control with 600 lb holding force for mid- to high-traffic commercial applications. This double door surface mount configuration operates on 12/24 VDC power and features adjustable zero to 90 second relock time delay with integrated lock status sensor. Designed for hollow metal, wood, aluminum, glass and composite door materials in retail, healthcare, financial, education and storage facilities.

Professional Features & Benefits

• High Holding Force: 600 lb electromagnetic holding force provides secure locking for mid- to high-traffic commercial environments.
• Dual Voltage Operation: 12/24 VDC compatibility allows flexible integration with various access control systems and power supplies.
• Adjustable Time Delay: Zero to 90 second relock time delay provides customizable egress timing for safety and security requirements.
• Lock Status Monitoring: Integrated bond status sensor enables real-time monitoring of lock engagement for system feedback and diagnostics.
• Universal Door Compatibility: Surface mount design works with hollow metal, wood, aluminum, glass and composite door materials for versatile installation options.
• Double Door Configuration: Engineered for double door applications providing comprehensive access control for wider openings.
• Commercial-Grade Construction: Aluminum finish and electromagnetic design deliver long-term reliability in demanding commercial environments.

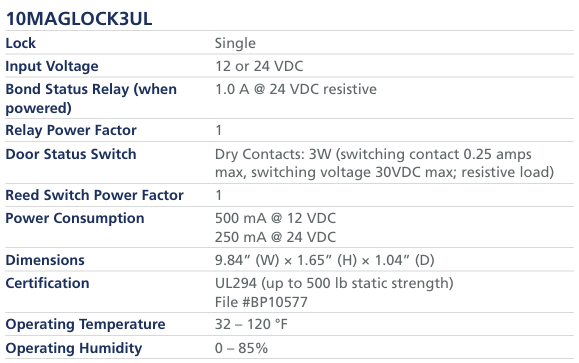

Technical Specifications

• Door Configuration: Single, surface mount
• Holding Force: 600 lb
• Input Voltage: 12 / 24 VDC (UL Listed power supply required)
• Current Draw: 0.50 A @ 12 VDC; 0.25 A @ 24 VDC
• Dimensions: 9.84 in (W) x 1.65 in (H) x 1.02 in (D)
• Material: Anodized Aluminum housing
• Relock Time Delay: 0 s - 90 s
• Sensor: Lock Status Sensor (NO or NC outputs)

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24 VDC voltage and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including relock time delay (zero to 90 seconds) and lock status sensor per application requirements.
6. Restore power and test all functions including normal operation, lock engagement/release, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Financial Institution Security
• Storage Facility Access Points
• Emergency Exit Compliance

Why Choose BEA Quality?

BEA electromagnetic locks deliver professional-grade reliability with aluminum construction and 600 lb holding force rated for demanding commercial applications. The adjustable time delay and lock status monitoring provide enhanced system integration capabilities. Engineered for commercial environments where dependable access control performance is essential.
