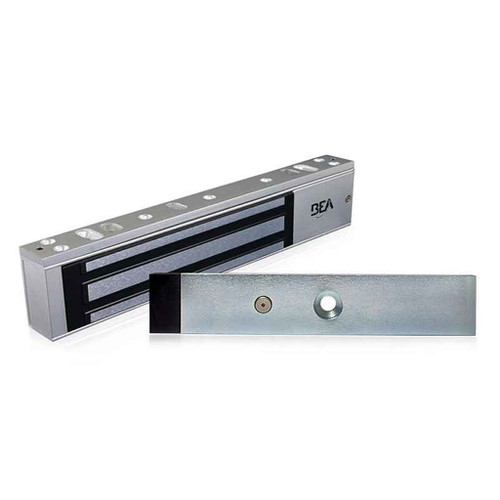

BEA 10MAGLOCK6ULDS Double Electromagnetic Surface Mount Lock with Door Status Sensor - 600 lb Holding Force

BEA 10MAGLOCK6ULDS Double Electromagnetic Surface Mount Lock with Door Status Sensor - 600 lb Holding Force

Professional Electromagnetic Locking Solution with Integrated Door Monitoring

The BEA 10MAGLOCK6ULDS electromagnetic lock delivers 600 lb holding force for mid- to high-level traffic applications in commercial buildings. This double door surface mount configuration includes an integrated door status sensor that monitors door position, eliminating the need for separate door switches. Operating on 12/24 VDC power, this electromagnetic lock provides standards-compliant access control for retail, healthcare, financial, education, and storage facilities with aluminum construction for durability.

Professional Features & Benefits

• High Holding Force: 600 lb holding force provides secure locking for mid- to high-level traffic commercial applications.
• Integrated Door Status Monitoring: Built-in door status sensor monitors door position and eliminates the need for separate door switch installation.
• Flexible Power Options: 12/24 VDC operation accommodates various access control system power requirements.
• Adjustable Relock Timing: Zero to 90 second adjustable relock time delay allows customization for specific application needs.
• Universal Door Compatibility: Compatible with hollow metal, wood, aluminum, glass, and composite door materials for versatile installation options.
• Lock Status Monitoring: Bond status sensor provides real-time feedback on lock engagement for system monitoring and diagnostics.
• Double Door Configuration: Surface mount design accommodates double door installations for wider openings and high-traffic areas.
• Durable Aluminum Construction: Aluminum finish provides corrosion resistance and professional appearance for commercial environments.

Technical Specifications

• Door Configuration: Single, surface mount
• Holding Force: 600 lb
• Input Voltage: 12 / 24 VDC (UL Listed power supply required)
• Current Draw: 0.50 A @ 12 VDC; 0.25 A @ 24 VDC
• Dimensions: 9.84 in (W) x 1.65 in (H) x 1.02 in (D)
• Relock Time Delay: 0 s - 90 s
• Sensor: Lock Status Sensor; Door Status Sensor
• Output Relay: Up to 1 A @ 24 VDC

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24 VDC voltage and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including adjustable zero to 90 second relock time delay per application requirements.
6. Restore power and test all functions including normal operation, door status sensor feedback, lock status monitoring, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Financial Institution Security
• Storage Facility Access Control
• Emergency Exit Compliance

Why Choose BEA Quality?

BEA electromagnetic locks deliver professional-grade reliability with aluminum construction and 600 lb holding force rated for demanding commercial applications. The integrated door status and lock bond sensors provide comprehensive monitoring capabilities for advanced access control systems. Engineered for demanding commercial applications where dependable performance and precise door monitoring are essential.
