BEA 10STRIKECU Universal Cylindrical Electric Strike with 12/24 VDC/VAC Operation

UL Listed Universal Access Control Solution

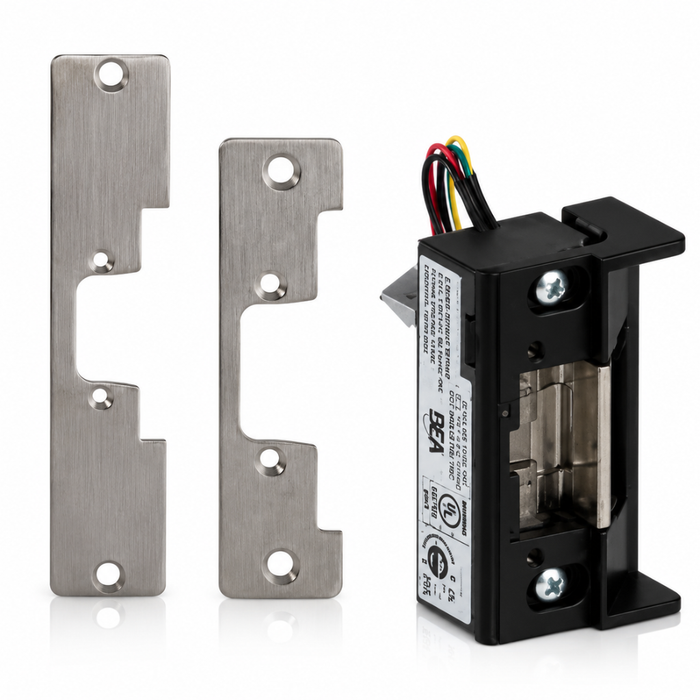

The BEA 10STRIKECU Universal Cylindrical Electric Strike delivers professional-grade controlled access for egress and ingress applications where code compliance and safety are paramount. This UL294 and UL1034 listed strike operates on 12/24 VDC/VAC power with continuous or intermittent duty capability and includes three faceplates for aluminum, hollow metal, and wood frame installations. Designed for universal cylindrical applications, this strike provides reliable electronic access control with silent or buzz operation modes.

Professional Features & Benefits

  • Flexible Power Options: 12/24 VDC/VAC operation accommodates various access control system requirements with continuous or intermittent duty capability.
  • Universal Installation Compatibility: Includes three faceplates specifically designed for aluminum, hollow metal, and wood frame installations for versatile mounting options.
  • UL Listed Safety Compliance: UL294 and UL1034 listings ensure code compliance and safety standards for commercial access control applications.
  • Dual Operation Modes: Silent or buzz operation provides flexibility for different security notification requirements.
  • Professional-Grade Construction: Engineered for demanding commercial applications requiring reliable controlled access and security.
  • Code Compliant Design: Specifically designed for egress and ingress applications where safety and compliance are paramount.

Technical Specifications

  • Model: 10STRIKECU - UL/ULC Listed Universal Cylindrical Electric Strike
  • Mode: Fail Safe, Fail Secure
  • Duty (12 VDC): Continuous
  • Duty (24 VDC): Continuous
  • Duty (24 VAC): Intermittent
  • Amps (12 VDC): 0.375 A
  • Amps (24 VDC): 0.190 A
  • Amps (24 VAC): 0.280 - 0.565 A

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 12/24 VDC/VAC voltage and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Select appropriate faceplate (aluminum, hollow metal, or wood frame) and mount the unit in the specified location ensuring adequate clearance for wiring access and operation.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including silent or buzz operation mode per application requirements.
  6. Restore power and test all functions including normal operation, strike release, and integration with connected access control systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Educational Institution Access Control
  • Healthcare Facility Security
  • Office Building Entry Systems
  • Retail Access Control
  • Industrial Facility Security
  • Government Building Access Points

Why Choose BEA Quality?

BEA electric strike products deliver professional-grade reliability with UL294 and UL1034 listings ensuring code compliance and safety standards. The 10STRIKECU series provides versatile installation options with included faceplates for multiple frame types and flexible power requirements. Engineered for demanding commercial applications where dependable access control performance is essential.

Product Specs

Product Type:
Electric Strike
Series:
10STRIKECU
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA BEA-10STRIKECU – Frequently Asked Questions

1) Will the BEA 10STRIKECU electric strike work in an aluminum storefront frame, or do I need a different model for hollow metal and wood?
One part covers all three. The 10STRIKECU ships with three faceplates, one for aluminum frames, one for hollow metal, and one for wood, so the same strike installs in a storefront jamb, a steel frame, or a wood frame. You pick the faceplate at install time rather than ordering a frame-specific version.
2) Is the 10STRIKECU strike fail safe or fail secure?
Both. The 10STRIKECU is field selectable between fail safe (unlocks when power drops) and fail secure (stays locked on power loss). That choice usually follows the code requirement for the opening: fail safe where the door has to release on alarm or power failure, fail secure where the opening must stay locked. Same part either way, so you are not committing to one mode at the time of order.
3) What voltage and current does the BEA 10STRIKECU draw, and can I run it off my existing access control power supply?
The strike runs on 12 or 24 VDC and 24 VAC. Current draw is 0.375 A at 12 VDC, 0.190 A at 24 VDC, and 0.280 to 0.565 A at 24 VAC. Size the supply against the highest figure for the voltage you are using, and add that to the rest of the load on the same circuit. On 24 VAC the AC draw is the one that catches people out because it can more than double.
4) Can the 10STRIKECU be energized continuously, or will it overheat on a fail safe door that stays powered all day?
Continuous duty at 12 VDC and at 24 VDC, so it can sit energized indefinitely, which is what a fail safe installation requires. On 24 VAC it is intermittent duty only, so do not hold it energized. If the design calls for a continuously powered strike, run it on DC.
5) Is the BEA 10STRIKECU UL listed for access control and for panic hardware use?
It carries both UL294 and UL1034 listings, and is described as UL/ULC Listed. UL294 is the access control system unit standard, UL1034 the burglary resistant electric door strike standard. Those are the two listings a specifier or AHJ typically asks for on a commercial controlled opening.
6) What kind of lock does the 10STRIKECU strike work with?
It is a cylindrical strike, so it is built to receive the latchbolt of a cylindrical lockset or knob/lever lock, not a mortise lock face or a rim exit device latch. If the door has a mortise lock or a rim panic device, you need a strike prepped for that latch geometry instead.
7) Does the 10STRIKECU buzz when it releases, or can I get a silent release?
Either. The strike offers silent or buzz operation, set during setup. Buzz is useful where staff need an audible cue that the door has released, for instance a receptionist buzzing a visitor in. Silent is the usual pick on a card reader opening in a quiet area such as a healthcare or office corridor.
8) Is the BEA 10STRIKECU a commercial-rated strike or is it meant for residential doors?
Commercial. It is classified as a commercial door hardware item and written for controlled egress and ingress openings in buildings like schools, hospitals, offices, retail, industrial plants, and government facilities. It is an electronic device, so it needs a low voltage supply and a release input from an access control system, keypad, or push button rather than working on its own.
9) Where do I find the wiring diagram and install instructions for the BEA 10STRIKECU?
BEA publishes a 10STRIKECU user's guide covering wiring and setup, plus an architectural specification sheet for its electric strikes, an electric strikes brochure, and the full BEA product catalog. All four are available as downloadable PDFs with the product, and the user's guide is the one to pull for wiring diagrams and mode configuration before you cut the frame.
