Professional Surface Mounted Electric Strike Solution

The BEA 10STRIKERE electric strike is specifically designed for rim exit device applications, providing controlled access and security for commercial egress and ingress applications. This UL/ULC listed surface mounted electric strike eliminates the need to cut into the door frame while offering flexible 12/24 VAC/VDC and 11 VAC/16VDC power options. The unit supports both continuous and intermittent duty cycles with silent or buzz operation modes for versatile access control integration.

Professional Features & Benefits

• Surface Mounted Design: Completely surface mounted installation eliminates the need to cut into the door frame, simplifying installation and reducing labor costs.
• Rim Exit Device Compatibility: Specifically designed for rim exit devices to ensure proper fit and reliable operation in commercial applications.
• Flexible Power Options: Supports 12/24 VAC/VDC and 11 VAC/16VDC operation for compatibility with various access control systems and power supplies.
• Dual Duty Cycle Operation: Continuous and intermittent duty capability provides flexibility for different security and access control requirements.
• Silent or Buzz Operation: Configurable operation modes allow adaptation to specific application requirements and user preferences.
• UL/ULC Listed: UL and ULC listings ensure compliance with safety standards and code requirements for commercial installations.
• Access Control Integration: Designed for professional access control applications where code compliance and safety are paramount.

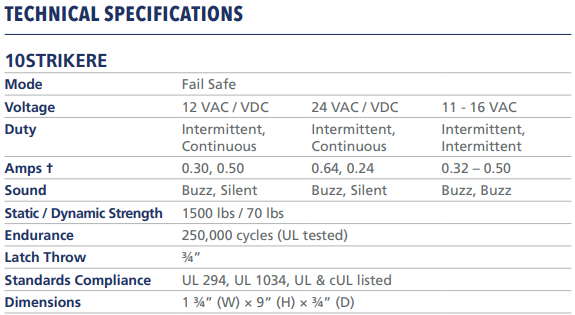

Technical Specifications

• Model: 10STRIKERE - UL/ULC Listed Surface Mounted Electric Strike for Rim Exit Device
• Mode: Fail Safe
• Duty (12 VDC): Intermittent / Continuous
• Duty (24 VDC): Intermittent / Continuous
• Duty (24 VAC): Intermittent / Intermittent
• Amps (12 VDC): 0.30 A / 0.50 A
• Amps (24 VDC): 0.64 A / 0.24 A
• Amps (24 VAC): 0.28 A / 0.50 A

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm voltage (12/24 VAC/VDC or 11 VAC/16VDC) and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including silent or buzz operation modes per application requirements.
6. Restore power and test all functions including normal operation, strike release, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Educational Institution Access Control
• Healthcare Facility Security
• Government and Municipal Buildings
• Industrial Facility Access Points
• Multi-Tenant Residential Properties
• Retail Security Systems

Why Choose BEA Quality?

BEA electric strike products deliver professional-grade reliability with UL/ULC listed construction designed for demanding commercial access control applications. The surface mounted design and flexible power options ensure compatibility with existing systems while maintaining code compliance. Engineered for commercial applications where dependable access control performance is essential.
