BEA 10T300PB 300 MHz Wired Analog Transmitter with Flag Connectors

BEA 10T300PB 300 MHz Wired Analog Transmitter with Flag Connectors

Professional Wireless Access Control Solution

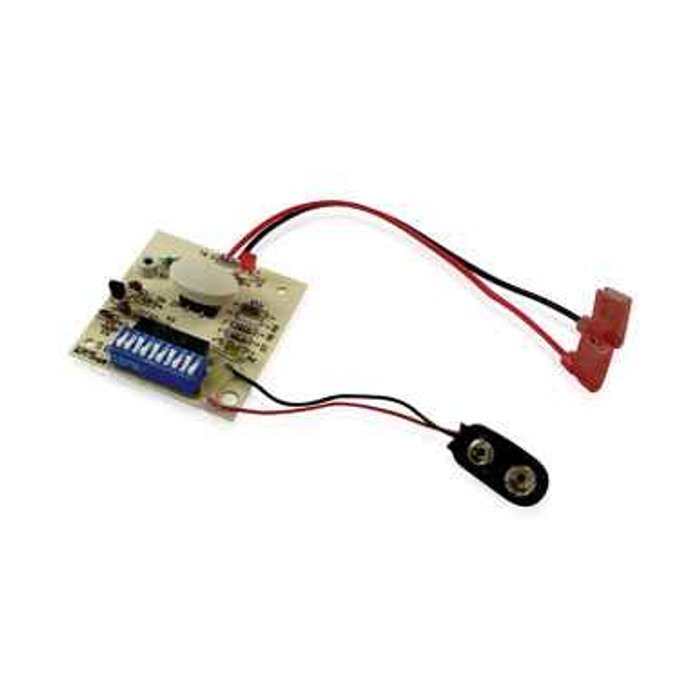

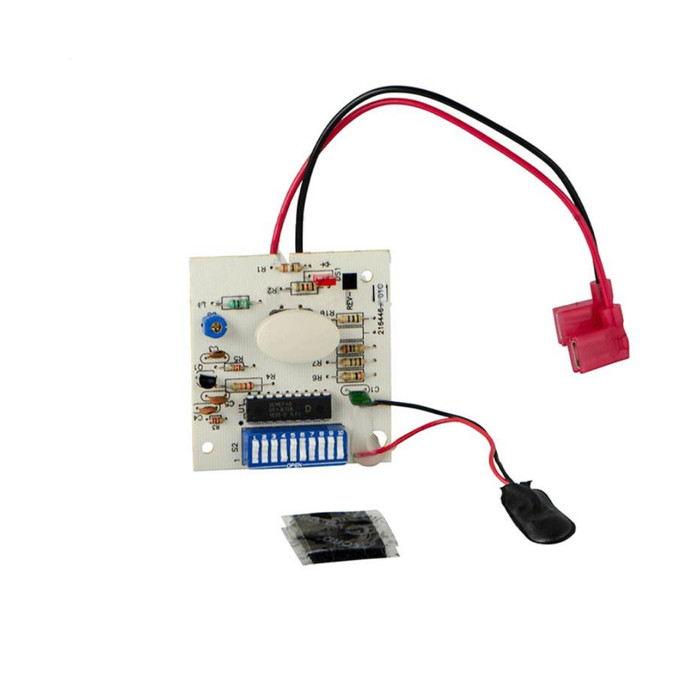

The BEA 10T300PB is a 300 MHz wired analog transmitter designed for automatic door activation systems. This professional-grade transmitter features flag connectors for direct integration with BEA push plate switches, operates on 9V battery power, and provides reliable short-range radio control transmission for enhanced accessibility applications.

Professional Features & Benefits

• 300 MHz Radio Control: Analog radio control technology delivers strong, short-range transmissions for reliable door activation.
• Flag Connector Integration: Direct plug-in compatibility with most BEA push plate switches eliminates additional mounting hardware requirements.
• Enhanced Accessibility: Provides activation means for automatic doors serving individuals with limited mobility or disabilities.
• Reduced Installation Time: Wireless design eliminates the need to run wires from push plate locations to door operators.
• 9V Battery Operation: Self-contained power source ensures reliable operation without external wiring requirements.
• Push Plate Compatibility: Works with all BEA activation plates except jamb and vestibule models for versatile installation options.
• Professional Series: Part of BEA’s comprehensive 300 MHz Family of wireless transmitters and receivers.

Technical Specifications

• Frequency: 300 MHz
• Radio Control Type: Analog
• Input Voltage: 24 VAC / VDC
• Operating Temperature: 14 deg. F - 131 deg. F
• Setup: 10 dip switch access code programming
• Power: Hardwired: 1 9-volt or 12-volt battery | Wireless: 1 9-volt or 12-volt battery
• Norm Conformance: CE, FCC, IC
• Dimensions (Without Flange): 3.2 in (W) x 1.4 in (H) x 4.9 in (D)
• Dimensions (With Flange): 3.2 in (W) x 1.4 in (H) x 5.4 in (D)

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 9V battery compatibility before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including any configurable options per application requirements.
6. Restore power and test all functions including normal operation, alarm/alert functions, and integration with connected systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Healthcare Facility Accessibility Compliance
• Educational Institution Entry Points
• Retail Store Customer Access
• Industrial Facility Personnel Entry
• Multi-Tenant Residential Access Control
• Government Building Security Integration

Why Choose BEA Quality?

BEA 10T300PB transmitters deliver professional-grade reliability with analog radio control technology rated for strong, short-range transmissions. Part of the comprehensive 300 MHz Family system, this transmitter is engineered for demanding commercial applications where dependable automatic door activation is essential for accessibility compliance and operational efficiency.
