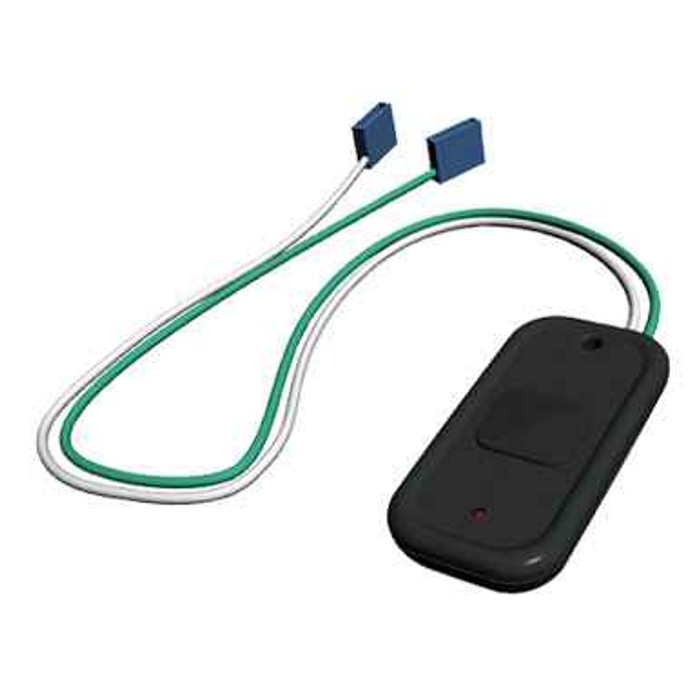

BEA 10TD433PB3V Wired Digital Transmitter 433 MHz with Flag Connectors and 3V Battery

BEA 10TD433PB3V Wired Digital Transmitter 433 MHz with Flag Connectors and 3V Battery

Professional Wireless Access Control Solution

The BEA 10TD433PB3V is a wired digital transmitter operating at 433 MHz frequency, designed for integration with automatic door activation systems. This single-button transmitter features flag connectors and 3V battery power, compatible with all BEA activation plates except jamb and vestibule models. Part of BEA’s 433 MHz Family of wireless transmitters and receivers, this device provides reliable radio control frequency technology for commercial access control applications.

Professional Features & Benefits

• 433 MHz Digital Technology: Radio control frequency provides reliable wireless communication for automatic door activation systems.
• Universal Compatibility: Works with all BEA activation plates except jamb and vestibule models for versatile installation options.
• Flag Connector Design: Convenient wired connection system simplifies installation and maintenance procedures.
• 3V Battery Power: Self-contained power source eliminates need for external wiring to power supply.
• Enhanced Accessibility: Offers activation means for automatic doors for users with limited mobility or disabilities.
• Reduced Installation Time: Eliminates need to run wires from push plates or use additional mounting hardware.
• Extended Hold Time Function: Receiver holds door open for as long as button is pressed for user convenience.
• Learn Mode Options: Delay and no-delay learn modes provide instant or delayed activation for door sequencing applications.

Technical Specifications

• Frequency: 433 MHz
• Radio Control Type: Digital
• Emitted Radio Power: -28.7 dBm (transmitter)
• Power Consumption: 3 mA (transmitter); 30 mA (receiver)
• Power: Hardwired: 1 9-volt or 3-volt battery | Handheld: 1 3-volt battery
• Input Voltage (Receiver): 12 - 24 VAC / VDC
• Contact Rating: 1.0 A @ 30 VDC | 0.5 A @ 125 VAC | 0.3 A @ 60 VDC
• Operating Temperature: 14 deg. F - 131 deg. F (-10 deg. C - 55 deg. C)
• Capacity: 100 transmitters
• LEDs: Receiver / Transmitter Learn: RED | Relay Activity: BLUE
• Dimensions Receiver: 2.125 in (W) x 1 in (H) x 2.75 in (D)
• Dimensions Transmitter: 1.375 in (W) x 0.6 in (H) x 2.75 in (D)
• Norm Conformance: CE, FCC, IC

Installation & Operation

1. Verify electrical requirements and confirm 3V battery power compatibility with system design before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the transmitter in the specified location ensuring adequate clearance for flag connector access and future service requirements.
4. Connect flag connectors according to manufacturer wiring diagrams. Ensure secure connections for reliable operation.
5. Configure learn mode settings including delay or no-delay activation per door sequencing requirements.
6. Restore power and test all functions including normal operation, extended hold time function, and integration with BEA push plates.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Healthcare Facility Accessibility Solutions
• Educational Institution Access Control
• Retail Establishment Entry Systems
• Industrial Facility Door Automation
• Multi-Tenant Residential Access Points
• Government Building Accessibility Compliance

Why Choose BEA Quality?

BEA 433 MHz Family transmitters deliver professional-grade wireless access control with digital radio frequency technology for reliable automatic door activation. The extended hold time functionality and learn mode options provide flexible configuration for demanding commercial applications. Engineered for accessibility compliance and reduced installation complexity where dependable wireless performance is essential.
