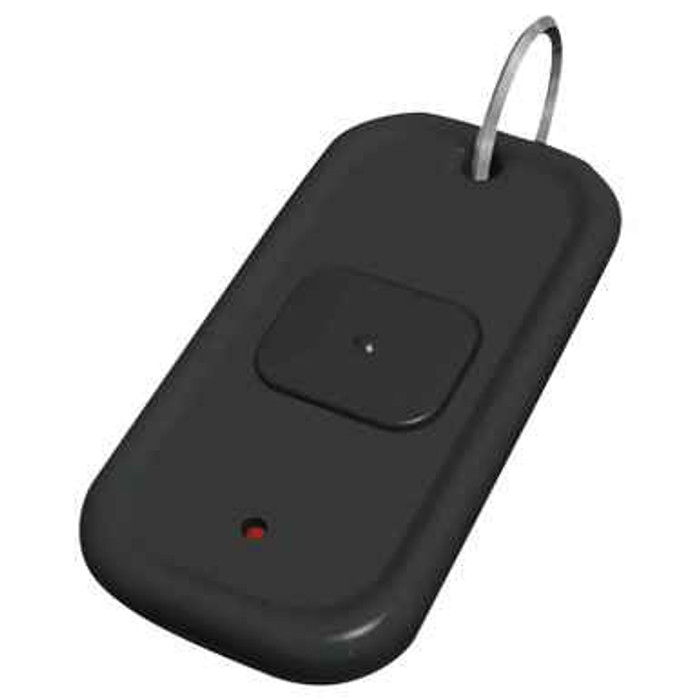

BEA 10TD433HH1 Handheld Digital Transmitter 433 MHz Single Button Wireless Door Control

BEA 10TD433HH1 Handheld Digital Transmitter 433 MHz Single Button Wireless Door Control

Professional Wireless Access Control Solution

The BEA 10TD433HH1 is a handheld digital transmitter operating at 433 MHz frequency, designed for single button control of automatic door receivers. This wireless transmitter enhances accessibility by providing remote activation capabilities for those with limited mobility or disabilities, eliminating the need for hardwired connections and reducing installation complexity.

Professional Features & Benefits

• 433 MHz Digital Technology: Reliable radio control frequency provides consistent wireless communication with compatible BEA receivers for dependable operation.
• Enhanced Accessibility: Offers remote activation of automatic doors for individuals with limited mobility or disabilities, improving building accessibility compliance.
• Wireless Installation: Eliminates the need to run wires from push plates or use additional mounting hardware, significantly reducing installation time and complexity.
• Push Plate Integration: Designed to pair with BEA push plates for flexible activation options in various door control applications.
• Extended Hold Time Function: Compatible receivers will hold door open for as long as the transmitter button is pressed, providing user-controlled door timing.
• Learn Mode Compatibility: Works with delay and no-delay learn modes to provide either instant or delayed activation for proper door sequencing in multi-door applications.
• Single Button Control: Simple one-button operation provides straightforward activation for users while maintaining reliable wireless control functionality.

Technical Specifications

• Frequency: 433 MHz
• Radio Control Type: Digital
• Emitted Radio Power: -28.7 dBm (transmitter)
• Power Consumption: 3 mA (transmitter); 30 mA (receiver)
• Power: Hardwired: 1 9-volt or 3-volt battery | Handheld: 1 3-volt battery
• Input Voltage (Receiver): 12 - 24 VAC / VDC
• Contact Rating: 1.0 A @ 30 VDC | 0.5 A @ 125 VAC | 0.3 A @ 60 VDC
• Operating Temperature: 14 deg. F - 131 deg. F (-10 deg. C - 55 deg. C)
• Capacity: 100 transmitters
• LEDs: Receiver / Transmitter Learn: RED | Relay Activity: BLUE
• Dimensions Receiver: 2.125 in (W) x 1 in (H) x 2.75 in (D)
• Dimensions Transmitter: 1.375 in (W) x 0.6 in (H) x 2.75 in (D)
• Norm Conformance: CE, FCC, IC

Installation & Operation

1. Verify electrical requirements match available power supply for the receiving system. Confirm 433 MHz frequency compatibility before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the receiver unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including learn mode options (delay or no-delay) per application requirements for proper door sequencing.
6. Restore power and test all functions including normal operation, wireless signal range, and integration with connected door control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Accessibility Systems
• Healthcare Facility Patient Access
• Educational Institution ADA Compliance
• Retail Establishment Customer Access
• Industrial Facility Personnel Entry
• Multi-Tenant Residential Access Control
• Government Building Public Access

Why Choose BEA Quality?

BEA 433 MHz Family wireless transmitters deliver professional-grade reliability with digital radio control technology designed for demanding commercial accessibility applications. The 433 MHz frequency provides consistent wireless communication while the digital control type ensures reliable activation. Engineered for commercial door control systems where dependable wireless performance and accessibility compliance are essential.
