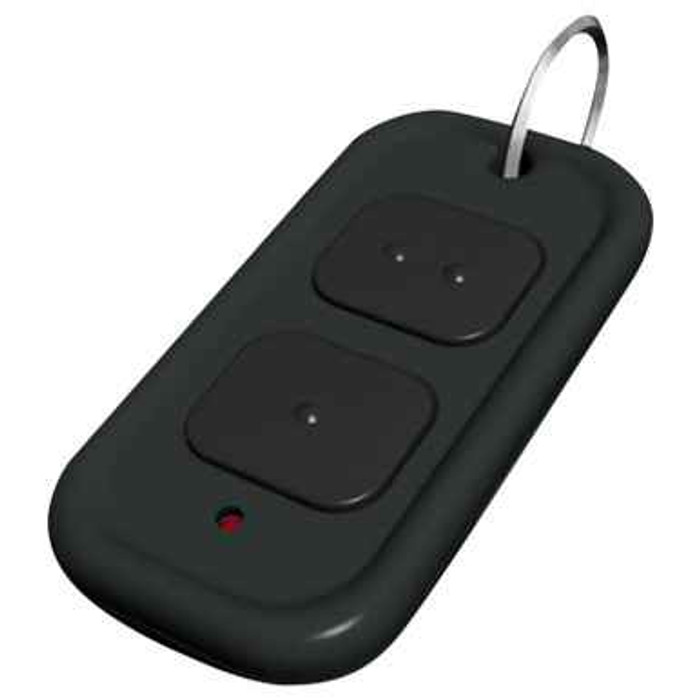

BEA 10TD433HH2 Handheld Digital Transmitter 433 MHz 2-Button Wireless Door Control

BEA 10TD433HH2 Handheld Digital Transmitter 433 MHz 2-Button Wireless Door Control

Professional Wireless Door Activation Solution

The BEA 10TD433HH2 is a handheld digital transmitter operating at 433 MHz frequency, designed for wireless activation of automatic doors with 2-button control capability. This professional-grade transmitter enhances accessibility by providing remote door activation for individuals with limited mobility or disabilities, eliminating the need for hardwired connections and reducing installation complexity.

Professional Features & Benefits

• 433 MHz Digital Technology: Reliable radio control frequency provides consistent wireless communication with compatible BEA receivers for dependable door activation.
• 2-Button Control Configuration: Dual button design allows for multiple door control functions or sequencing applications with flexible programming options.
• Enhanced Accessibility Solution: Offers remote activation capability for automatic doors, specifically designed to assist those with limited mobility or disabilities.
• Wireless Installation Advantage: Eliminates the need to run wires from push plates and reduces additional mounting hardware requirements for faster, cleaner installations.
• Push Plate Integration: Compatible with BEA push plates for comprehensive wireless door control systems with reduced installation time.
• Extended Hold Time Operation: Receiver compatibility includes extended hold time functionality that keeps doors open for as long as the button is pressed.
• Flexible Learn Modes: Supports delay and no-delay learn modes providing either instant or delayed activation options for door sequencing applications.

Technical Specifications

• Frequency: 433 MHz
• Radio Control Type: Digital
• Emitted Radio Power: -28.7 dBm (transmitter)
• Power Consumption: 3 mA (transmitter); 30 mA (receiver)
• Power: Hardwired: 1 9-volt or 3-volt battery | Handheld: 1 3-volt battery
• Input Voltage (Receiver): 12 - 24 VAC / VDC
• Contact Rating: 1.0 A @ 30 VDC | 0.5 A @ 125 VAC | 0.3 A @ 60 VDC
• Operating Temperature: 14 deg. F - 131 deg. F (-10 deg. C - 55 deg. C)
• Capacity: 100 transmitters
• LEDs: Receiver / Transmitter Learn: RED | Relay Activity: BLUE
• Dimensions Receiver: 2.125 in (W) x 1 in (H) x 2.75 in (D)
• Dimensions Transmitter: 1.375 in (W) x 0.6 in (H) x 2.75 in (D)
• Norm Conformance: CE, FCC, IC

Installation & Operation

1. Verify electrical requirements match available power supply for the receiving system. Confirm 433 MHz frequency compatibility with existing BEA receivers before proceeding.
2. Disconnect power supply to receiver units before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the receiver unit in the specified location ensuring adequate clearance for antenna positioning and signal reception.
4. Route and connect receiver wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the door control application.
5. Configure operational settings including learn mode selection (delay or no-delay) and extended hold time functions per application requirements.
6. Restore power and test all functions including normal door activation, button response, and integration with automatic door systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Accessibility Systems
• Healthcare Facility Patient Access
• Educational Institution ADA Compliance
• Retail Store Automatic Door Control
• Industrial Facility Personnel Access
• Multi-Tenant Residential Entry Systems
• Government Building Accessibility Solutions

Why Choose BEA Quality?

BEA 433 MHz Family products deliver professional-grade wireless door control technology with digital radio frequency reliability for demanding commercial accessibility applications. The comprehensive system includes compatible receivers, handheld transmitters, and push button options engineered for consistent performance in automatic door activation systems where dependable wireless operation is essential.
