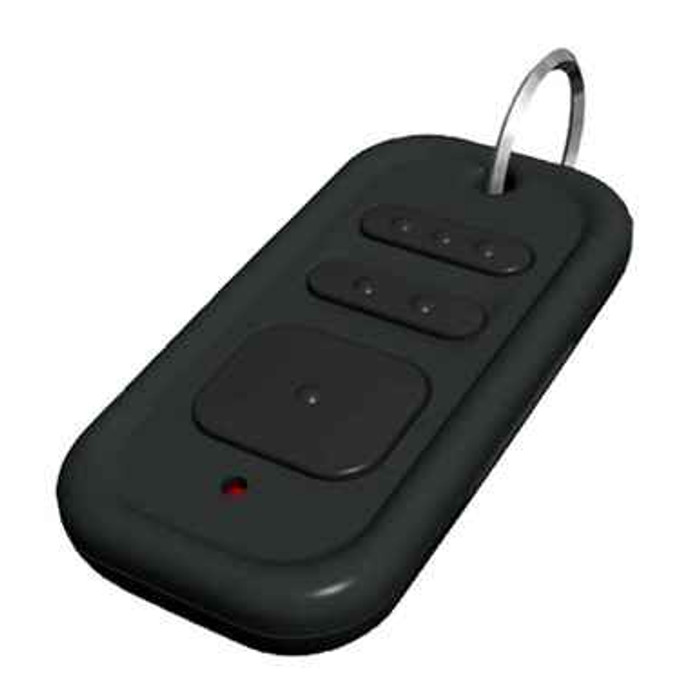

BEA 10TD900HH3 Handheld Digital Transmitter 900 MHz 3-Button Wireless Door Control

BEA 10TD900HH3 Handheld Digital Transmitter 900 MHz 3-Button Wireless Door Control

Professional Wireless Door Activation Solution

The BEA 10TD900HH3 is a handheld digital transmitter operating at 900 MHz frequency with 3-button control capability for wireless activation of automatic door systems. This compact transmitter provides greater line-of-sight transmission distance than legacy wireless frequencies and offers better penetration of obstacles such as walls, partitions, doors, and low-emissivity glass. FCC Part 15 certification ensures proper compliance with federal radio frequency regulations for reliable commercial applications.

Professional Features & Benefits

• 900 MHz Wireless Technology: Provides greater line-of-sight transmission distance and superior obstacle penetration compared to legacy wireless frequencies.
• 3-Button Control Configuration: Multiple activation options for versatile door control applications and user convenience.
• Enhanced Accessibility Features: Offers activation means for automatic doors for users with limited mobility or disabilities, improving building accessibility compliance.
• Frequency Hopping Technology: Allows consistent transmission in areas with other 900 MHz devices, preventing interference and ensuring reliable operation.
• Extended Hold and Toggle Functionality: Integrated pulse and toggle modes provide flexible activation options for various application requirements.
• Learn Mode Options: Delay and no-delay learn modes provide either instant or delayed activation for proper door sequencing in multi-door applications.
• FCC Part 15 Certification: Ensures proper compliance with federal radio frequency regulations for commercial installations.
• Compact Handheld Design: Portable form factor allows convenient wireless door activation from various locations within transmission range.

Technical Specifications

• Frequency: 908 - 918 MHz (frequency hopping)
• Emitted Radio Power: -25 dBm (TX)
• Power Consumption RD900: 40 mA
• Power Consumption TD900HHx: 30 mA
• Power Consumption TD900PB: 30 mA
• Power Consumption TD900TR: 22 mA
• Power Consumption TD900INDHHx: 13 mA
• Supply Voltage: 12 - 24 VAC / VDC
• Contact Rating: 1.0 A @ 30 VDC | 0.5 A @ 125 VAC | 0.3 A @ 60 VDC
• Temperature Range: 14 deg. F - 131 deg. F (-10 deg. C - 55 deg. C)
• Programmable Units Per Receiver: 75
• LEDs: Red: Receiver learn | Blue: Relay activation | Tri-color: Signal strength
• Dimensions RD900: 2.5 in (W) x 0.75 in (H) x 2.0 in (D)
• Dimensions TD900HHx: 2.75 in (W) x 0.56 in (H) x 1.38 in (D)
• Dimensions TD900PB: 1.75 in (W) x 0.3 in (H) x 1.0 in (D)
• Dimensions TD900TR: 1.72 in (W) x 0.32 in (H) x 1.06 in (D)
• Dimensions TD900INDHHx: 1.5 in (W) x 0.5 in (H) x 3.0 in (D)
• Certification: FCC, IC
• Degree of Protection TD900INDHHx: NEMA 4 / IP65

Installation & Operation

1. Verify receiver compatibility with 900 MHz frequency and confirm power supply requirements for the connected door control system.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the receiver unit in the specified location ensuring adequate clearance for antenna positioning and signal reception.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the door control application.
5. Configure operational settings including learn mode selection (delay or no-delay) and activation type (pulse or toggle) per application requirements.
6. Restore power and test all functions including transmitter pairing, signal range, activation response, and integration with automatic door systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Healthcare Facility Accessibility Solutions
• Educational Institution Door Control
• Retail Establishment Entry Systems
• Industrial Facility Access Points
• Multi-Tenant Residential Automatic Doors
• Government and Municipal Building Access

Enhanced Accessibility Design

This handheld transmitter enhances building accessibility by offering wireless activation means for automatic doors, specifically benefiting users with limited mobility or disabilities. The extended hold functionality and multiple button configuration provide flexible activation options to accommodate various user needs and compliance requirements.

Why Choose BEA Quality?

BEA 900 MHz wireless transmitters deliver professional-grade reliability with FCC Part 15 certification and frequency hopping technology for consistent performance in demanding commercial environments. The compact design and extended transmission range make these transmitters ideal for accessibility applications where dependable wireless door activation is essential.
