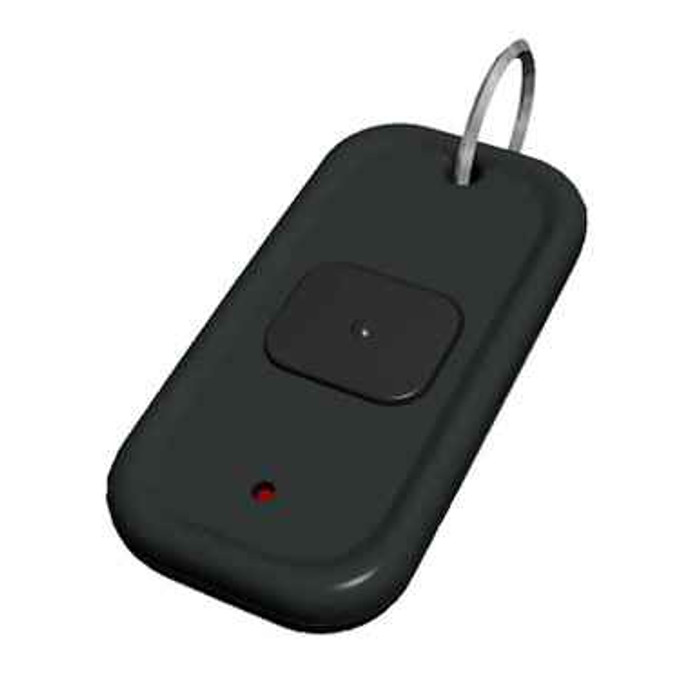

BEA 10TD900HH1 Handheld Digital Transmitter 900 MHz with 1 Button Control

BEA 10TD900HH1 Handheld Digital Transmitter 900 MHz with 1 Button Control

Professional Wireless Door Control Solution

The BEA 10TD900HH1 handheld digital transmitter delivers reliable 900 MHz wireless activation for automatic door systems. This single-button control device features frequency hopping technology for consistent transmission in environments with multiple 900 MHz devices, while providing extended line-of-sight transmission distance and superior obstacle penetration compared to legacy wireless frequencies. FCC Part 15 certification ensures proper compliance with federal radio frequency regulations for professional installations.

Professional Features & Benefits

• 900 MHz Wireless Technology: Provides greater line-of-sight transmission distance than legacy wireless frequencies with superior penetration of walls, partitions, doors, and low-emissivity glass.
• Frequency Hopping Technology: Ensures consistent transmission performance in areas with other 900 MHz devices for reliable operation.
• Extended Hold Functionality: Integrated extended hold and toggle/pulse functionality accommodates various application needs and door sequencing requirements.
• Learn Mode Options: Delay and no-delay learn modes provide either instant or delayed activation for proper door sequencing control.
• Accessibility Enhancement: Offers wireless activation solution for automatic doors to assist those with limited mobility or disabilities.
• FCC Part 15 Certification: Ensures proper compliance with federal radio frequency regulations for professional installations.
• Single Button Control: Simple one-button operation for straightforward door activation control.

Technical Specifications

• Frequency: 908 - 918 MHz (frequency hopping)
• Emitted Radio Power: -25 dBm (TX)
• Power Consumption RD900: 40 mA
• Power Consumption TD900HHx: 30 mA
• Power Consumption TD900PB: 30 mA
• Power Consumption TD900TR: 22 mA
• Power Consumption TD900INDHHx: 13 mA
• Supply Voltage: 12 - 24 VAC / VDC
• Contact Rating: 1.0 A @ 30 VDC | 0.5 A @ 125 VAC | 0.3 A @ 60 VDC
• Temperature Range: 14 deg. F - 131 deg. F (-10 deg. C - 55 deg. C)
• Programmable Units Per Receiver: 75
• LEDs: Red: Receiver learn | Blue: Relay activation | Tri-color: Signal strength
• Dimensions RD900: 2.5 in (W) x 0.75 in (H) x 2.0 in (D)
• Dimensions TD900HHx: 2.75 in (W) x 0.56 in (H) x 1.38 in (D)
• Dimensions TD900PB: 1.75 in (W) x 0.3 in (H) x 1.0 in (D)
• Dimensions TD900TR: 1.72 in (W) x 0.32 in (H) x 1.06 in (D)
• Dimensions TD900INDHHx: 1.5 in (W) x 0.5 in (H) x 3.0 in (D)
• Certification: FCC, IC
• Degree of Protection TD900INDHHx: NEMA 4 / IP65

Installation & Operation

1. Verify receiver compatibility with 900 MHz frequency and digital transmission protocol before proceeding with installation.
2. Disconnect power supply to the door control system before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the receiver unit in the specified location ensuring adequate clearance for antenna positioning and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including learn mode selection (delay or no-delay) and extended hold/toggle functionality per application requirements.
6. Restore power and test all functions including normal operation, transmission range, and integration with connected door control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Healthcare Facility Accessibility Solutions
• Educational Institution Door Control
• Retail Establishment Entry Systems
• Industrial Facility Access Points
• Multi-Tenant Residential Automatic Doors
• Government and Municipal Building Access

Why Choose BEA Quality?

BEA 900 MHZ FAMILY transmitters deliver professional-grade wireless door control with frequency hopping technology and FCC Part 15 certification for reliable commercial applications. The extended transmission range and superior obstacle penetration capabilities ensure consistent performance in demanding environments where dependable automatic door activation is essential.
