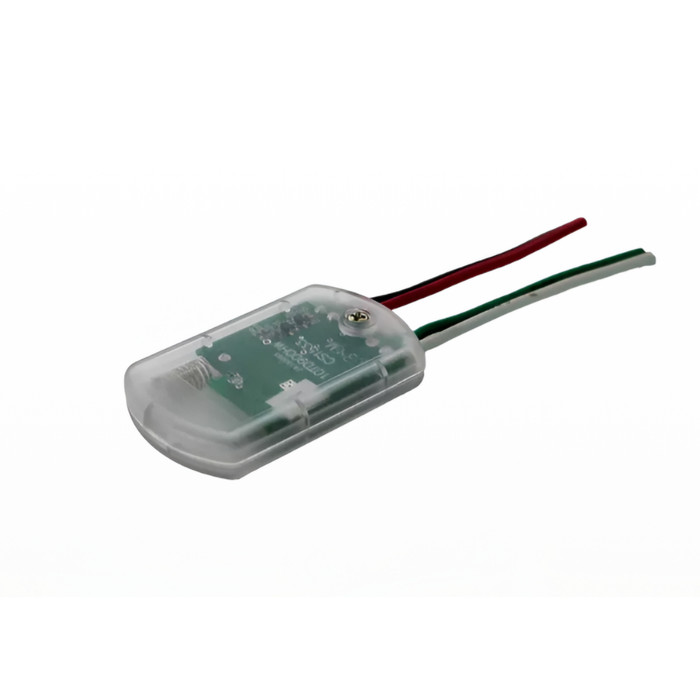

BEA 10TD900TR 900 MHz Touchless Wireless Retrofit Transmitter with 12/24 VAC Power

BEA 10TD900TR 900 MHz Touchless Wireless Retrofit Transmitter with 12/24 VAC Power

Professional Touchless Door Activation Solution

The BEA 10TD900TR is a 900 MHz wireless retrofit transmitter designed to upgrade existing touch push plates to touchless activation systems. This compact transmitter operates on 12/24 VAC power and utilizes advanced 900 MHz wireless technology for superior transmission distance and obstacle penetration compared to legacy wireless frequencies. FCC Part 15 certification ensures compliance with federal radio frequency regulations for reliable commercial door control applications.

Professional Features & Benefits

• 900 MHz Wireless Technology: Provides greater line-of-sight transmission distance than legacy wireless frequencies with better penetration of walls, partitions, doors, and low-emissivity glass.
• Touchless Retrofit Solution: Easily upgrades existing touch push plates to touchless activation without requiring additional wiring installation.
• Dual Voltage Compatibility: 12/24 VAC operation provides flexible power supply options for various installation requirements.
• Enhanced Accessibility Features: Offers activation means for automatic doors serving those with limited mobility or disabilities.
• Frequency Hopping Technology: Ensures consistent transmission in environments with other 900 MHz devices through advanced frequency management.
• Extended Hold Functionality: Integrated extended hold and toggle/pulse functionality accommodates various application needs and door sequencing requirements.
• Learn Mode Options: Delay and no-delay learn modes provide either instant or delayed activation for proper door sequencing control.
• FCC Part 15 Certification: Ensures proper compliance with federal radio frequency regulations for commercial installations.

Technical Specifications

• Frequency: 908 - 918 MHz (frequency hopping)
• Emitted Radio Power: -25 dBm (TX)
• Power Consumption RD900: 40 mA
• Power Consumption TD900HHx: 30 mA
• Power Consumption TD900PB: 30 mA
• Power Consumption TD900TR: 22 mA
• Power Consumption TD900INDHHx: 13 mA
• Supply Voltage: 12 - 24 VAC / VDC
• Contact Rating: 1.0 A @ 30 VDC | 0.5 A @ 125 VAC | 0.3 A @ 60 VDC
• Temperature Range: 14 deg. F - 131 deg. F (-10 deg. C - 55 deg. C)
• Programmable Units Per Receiver: 75
• LEDs: Red: Receiver learn | Blue: Relay activation | Tri-color: Signal strength
• Dimensions RD900: 2.5 in (W) x 0.75 in (H) x 2.0 in (D)
• Dimensions TD900HHx: 2.75 in (W) x 0.56 in (H) x 1.38 in (D)
• Dimensions TD900PB: 1.75 in (W) x 0.3 in (H) x 1.0 in (D)
• Dimensions TD900TR: 1.72 in (W) x 0.32 in (H) x 1.06 in (D)
• Dimensions TD900INDHHx: 1.5 in (W) x 0.5 in (H) x 3.0 in (D)
• Certification: FCC, IC
• Degree of Protection TD900INDHHx: NEMA 4 / IP65

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24 VAC voltage and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including learn mode options (delay or no-delay) and extended hold/toggle functionality per application requirements.
6. Restore power and test all functions including normal operation, wireless transmission range, and integration with connected door control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Accessibility Upgrades
• Healthcare Facility Touchless Entry Systems
• Educational Institution Door Control
• Retail Establishment Access Solutions
• Industrial Facility Wireless Door Activation
• Government Building Security Integration
• Multi-Tenant Property Access Control

Why Choose BEA Quality?

BEA 900 MHz wireless transmitters deliver professional-grade reliability with FCC Part 15 certification and advanced frequency hopping technology for consistent performance in demanding commercial environments. The compact design and dual voltage compatibility make installation flexible while maintaining superior transmission capabilities through obstacles. Engineered for accessibility compliance and dependable automatic door control where touchless activation is essential.
