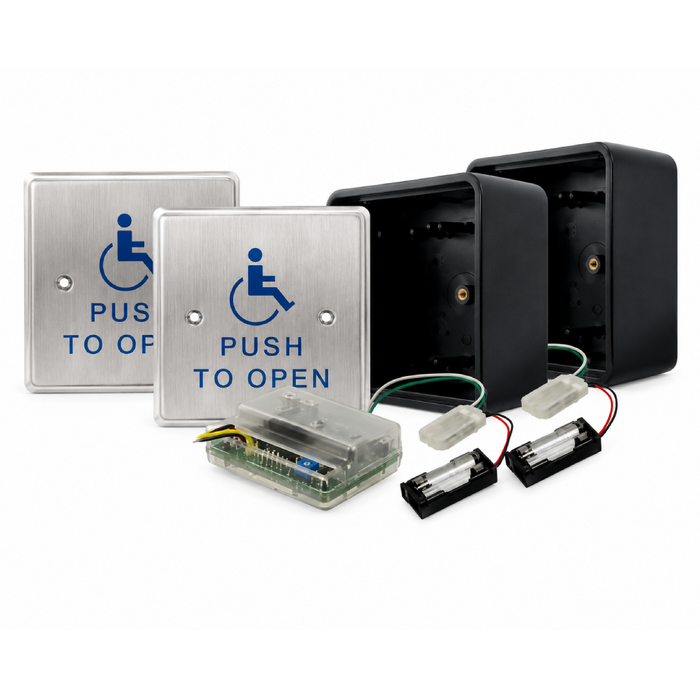

BEA 45S-900 Wireless Push Plate Kit — complete package contents shown: two PBS451 4.5" square stainless push plates with ADA wheelchair symbol, two 10BOX45SQSM surface mount boxes, two 10TD900PB 900 MHz transmitters, and one 10RD900 900 MHz receiver

BEA 45S-900 Wireless Push Plate Package with 900 MHz Transmitters and Receivers

(No reviews yet) Write a Review

Model: PUSH PLATE 45S-900

In Stock (leaves warehouse same day if ordered before 3pm ET)

$435.54
$283.56
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 45S-900 Wireless Push Plate Package with 900 MHz Transmitters and Receivers

Complete Wireless Door Activation Solution

The BEA 45S-900 Wireless Push Plate Package provides a comprehensive solution for automatic door activation with 900 MHz wireless technology. This complete kit includes two 4-1/2" x 4-1/2" x 1/6" square push plates with "PUSH TO OPEN" text and handicap logo, surface mount boxes, wireless transmitters, and receiver for touchless door operation. Designed for commercial applications, this system meets ADA compliance requirements and enables safe, sanitary door activation without physical contact.

Professional Features & Benefits

  • Complete System Package: Includes (2) PBS451 square push plates, (2) 10BOX45SQSM surface mount boxes, (2) 10TD900PB transmitters, and (1) 10RD900 receiver for immediate installation.
  • Wireless 900 MHz Technology: Reliable wireless communication eliminates the need for hardwired connections between activation plates and door operators.
  • ADA Compliant Design: Push plates feature handicap logo and "PUSH TO OPEN" text to meet accessibility compliance requirements for commercial facilities.
  • Compact Square Profile: 4-1/2" x 4-1/2" x 1/6" push plate dimensions provide optimal activation area while maintaining low-profile installation.
  • Touchless Operation: Enables safe and sanitary door activation without physical contact, ideal for high-traffic commercial environments.
  • Surface Mount Installation: Included surface mount boxes allow for easy installation on various wall surfaces without extensive preparation.
  • Lightweight Construction: Total shipping weight of 0.86 lbs ensures easy handling and installation for building professionals.

Technical Specifications

  • Transmitter Frequency: 433 MHz or 900 MHz
  • Power (433 MHz): (1) 12 V Type A23
  • Power (900 MHz): (2) CR2032
  • Faceplate Material: 16 Gauge, 304 2B Stainless Steel
  • Housing Material: ABS Plastic
  • Mounting Options: Surface or bollard mount
  • Dimensions (6 Inch Round): 6.33 in (dia.) x 1.45 in (D)
  • Dimensions (4.75 Inch Round): 5.12 in (dia.) x 1.42 in (D)
  • Dimensions (4.75 Inch Square): 5.12 in (W) x 5.12 in (H) x 1.42 in (D)
  • Weight (6 Inch Round): 1.2 lbs
  • Weight (4.75 Inch Round): 1.14 lbs
  • Weight (4.75 Inch Square): 1.04 lbs
  • Degree of Protection: NEMA 4 / IP65
  • Certification: FCC IC Part 15 Approved

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 900 MHz frequency compatibility before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the surface mount boxes in the specified locations ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including any configurable options per application requirements.
  6. Restore power and test all functions including normal operation, wireless communication between transmitters and receiver, and integration with connected door operators.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Automatic Door Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Retail Establishment Entry Points
  • Industrial Facility Monitoring
  • ADA Compliance Installations
  • High-Traffic Commercial Entrances

Why Choose BEA Quality?

BEA wireless push plate systems deliver professional-grade reliability with 900 MHz wireless technology designed for demanding commercial applications. The comprehensive package design ensures all necessary components are included for immediate installation, while ADA compliant features meet modern accessibility standards. Engineered for commercial environments where dependable touchless operation and accessibility compliance are essential.

Manufacturer Resources

BEA Product Catalog

Product Specs

Product Type:
Push Plate Package
Series:
PUSH PLATE 45S-900
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA PUSH PLATE 45S-900 – Frequently Asked Questions

1) What is included in the BEA Push Plate 45S-900 kit?
Kit includes 2 PBS451 square push plates, 2 surface mount boxes, 1 TD900PB transmitter, and 1 RD900 receiver. All components work together for wireless automatic door activation.
2) What doors and operators is this push plate system compatible with?
Compatible with most automatic door operators that accept dry contact inputs. Works with sliding doors, swing door operators, and gate systems. Verify your operator accepts momentary contact closure before installation.
3) How do you mount the PBS451 square push plates?
Push plates mount to included surface boxes using provided screws. Mount boxes to wall or post at 42-48 inches height per ADA requirements. Use manufacturer template for proper positioning and fastener locations.
4) What finish options are available for the push plates?
Standard finish is typically satin stainless steel for durability and appearance. Check specific model specifications as finishes may vary. Stainless steel provides weather resistance for exterior installations.
5) What is the operating range of the 900 MHz wireless system?
Typical range is up to 1000 feet line of sight. Range varies with obstacles, interference, and environmental conditions. Test system at installation location to verify adequate signal strength before final mounting.
6) Does this system meet ADA and building code requirements?
Push plates can meet ADA requirements when properly installed at correct height and activation force. Verify local code compliance for your specific application. Some installations may require additional accessibility features.
7) What power requirements does the wireless system have?
Push plate transmitter typically uses battery power for wireless operation. Receiver requires low voltage power connection. Check manufacturer specifications for exact voltage and current requirements before wiring.
8) How do you program the transmitter and receiver pairing?
Follow manufacturer programming sequence to pair transmitter with receiver. Typically involves pressing learn button on receiver then activating transmitter. LED indicators confirm successful pairing. Test activation after programming.
9) What maintenance is required for the push plate system?
Check battery levels in transmitter regularly. Clean push plate surfaces to maintain appearance and function. Test wireless communication monthly. Replace batteries when low battery indicator activates or range decreases.
10) Can multiple push plates operate the same door?
Yes, multiple transmitters can be programmed to single receiver for multi-location activation. Useful for both sides of door or multiple entry points. Each transmitter must be individually programmed to receiver.
11) What are similar BEA push plate alternatives?
Consider other BEA wireless push button systems or hardwired models. Round push plates and different wireless frequencies available. Compare features and range requirements for your application.
12) What environmental conditions can this system handle?
System designed for indoor and covered outdoor use. Stainless steel components resist corrosion. Avoid direct water exposure on electronic components. Check IP rating specifications for your environmental requirements.
