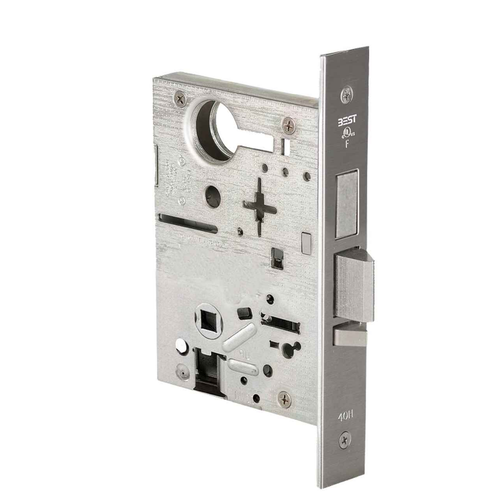

BEST 45HCA Heavy Duty Hotel Function Mortise Lock Body with Field Reversible Operation

Professional Grade Hotel Function Mortise Lock Solution

The BEST 45HCA Series heavy duty mortise lock body delivers professional-grade security for hotel and hospitality applications. This field reversible lock body features a 2-3/4" backset with solid stainless steel components and 0.095" cold rolled steel construction. Designed for doors 1-3/4" thick with ANSI A156.13 Series 1000 Grade 1 Operation and Strength compliance, this hotel function lock provides reliable access control for commercial hospitality environments.

Professional Features & Benefits

  • Heavy-Duty Steel Construction: 0.095" cold rolled steel case, cover, and armored front provide exceptional durability and strength for high-traffic hotel applications.
  • Field Reversible Design: Reversible latch rotates 180 degrees for easy handing change without opening the case, reducing installation time and inventory requirements.
  • Enhanced Latch Performance: Solid one-piece stainless steel anti-friction latch provides 50% more surface contact with strike for superior strength and security with reduced wear.
  • Roller Bearing Hub Mechanism: Provides smooth, wear-resistant operation for extended service life in demanding commercial applications.
  • Armored Front Protection: Completely surrounds latch and deadbolt providing increased lateral strength with self-aligning installation capability.
  • ANSI Grade 1 Compliance: Meets ANSI A156.13 Series 1000 Grade 1 Operation and Strength requirements for commercial hospitality applications.
  • Hotel Function Operation: Specifically designed for hotel/motel applications with appropriate locking mechanisms for guest room security.
  • Anti-Microbial Finish Options: Available with UltraShield antimicrobial protected coating (626AM and 630AM finishes) for enhanced cleanliness in hospitality environments.

Technical Specifications

45H Series –The design and operation of the BEST® mortise lock meets the intent
of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core
(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1EK7K4 high security cylinder must be used with sectional trims.
47H Series – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security

Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case –0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Strike – For complete strike package spec’s see page 5.
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to
5" thick (specify thickness when ordering).
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during
installation.
Products protected by one or more of the following patents: 4,873,853 5,590,555 5,794,472
Finishes –
• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material) 625 – brightchromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
*690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish –
• 626AM – satin chrome plated with UltraShield™ antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™ antimicrobial protected coating
The BEST UltraShield finish inhibits the growth of bacteria and other microbes on the surface of the hardware.
NOTE: BEST UltraShieldTM option is recommended for use on any hardware application where product cleanliness is a high priority. i.e;.
Hospital/Healthcare, Elderly Care, Education, Transportation, Food-Service, Hospitality.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (standard 1-3/4" or up to 5" thick door configuration), mortise pocket dimensions, and cylinder preparation.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the 8" H x 1-1/4" W faceplate.
  3. Prepare door mortise pocket and drill required holes for the 2-3/4" backset configuration and cylinder installation.
  4. Install the lock body into the mortise pocket and secure with appropriate fasteners per manufacturer torque specifications.
  5. Configure the four position hub toggle design to determine locking operation and adjust the field reversible latch orientation as needed for door handing.
  6. Test lock operation including latch and deadbolt function, verify proper alignment with strike, and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Hotel and Motel Guest Rooms
  • Hospitality Facility Access Control
  • Resort and Lodge Accommodations
  • Extended Stay Properties
  • Boutique Hotel Security Systems
  • Commercial Lodging Facilities
  • Hospitality Industry Renovations

Why Choose BEST Quality?

BEST 45HCA Series mortise locks deliver professional-grade reliability with 0.095" cold rolled steel construction and solid stainless steel components rated for heavy duty commercial applications. The field reversible design and roller bearing hub mechanism provide enhanced durability and installation flexibility. Engineered for demanding hospitality environments where dependable security and smooth operation are essential for guest satisfaction and property protection.

Product Specs

Series:
45H
Standard Cylinder:
SFIC Prep Less Core
Duty Level:
Heavy Duty
Keyed Function:
Single Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Lock Body
Subcategory:
Mortise
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Hotel
Product Attribute:
Mortise Locks
Electronic:
No
Product Function:
Hotel/Motel
Face Plate:
8" H x 1-1/4" W x 1/16" T
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

BEST 45HCAH626 – Frequently Asked Questions

1) Does the BEST 45HCA hotel mortise lock come with a cylinder?
No. The 45HCA is a lock body only, prepped for a small format interchangeable core and shipped less core. You supply the SFIC core separately, and it is a single cylinder keyed function, so one core serves the opening from the outside. Trim (lever or knob, escutcheon or sectional) is also a separate order.
2) Will the BEST 45HCA mortise lock fit a door thicker than 1-3/4 inches?
The standard 45HCA configuration is built for 1-3/4 inch doors. For anything thicker, BEST builds a thick-door configuration up to 5 inches, but the thickness has to be specified at the time of order since it changes the spindle and cylinder length. Backset is 2-3/4 inches either way.
3) Do I have to order the 45HCA handed, or can I change it on the job?
Handing is selected when you order (RH, LH, RHRB or LHRB), but the latch itself is reversible in the field. It rotates 180 degrees without opening the case, so if a door swing changes after delivery you are not stuck with the wrong part or holding four versions in the truck.
4) Will the 45HCA latch into the strikes already in my guest room frames?
The latchbolt throws 3/4 inch and the deadbolt throws 1 inch, which is standard mortise geometry, but the lip projection on the existing strike is what decides it. A 7/8 inch lip to center strike is available as an order option if your frame reveal needs the longer lip to guide the latch. The faceplate is 8 inches by 1-1/4 inches by 1/16 inch thick and self-adjusts to the door bevel during install.
5) What ANSI grade is the BEST 45H mortise lock, and does it meet Grade 1 security?
The 45H Series meets ANSI A156.13, Series 1000, Grade 1 for Operation and Strength, and Grade 2 for Security as standard. To reach Grade 1 Security you need a drill resistant core (1CD, 1CDP, 1CDF or 1CDX) with escutcheon trim, or a 1EK7K4 high security cylinder with sectional trim. The 47H Series is the one that carries Grade 1 on all three, including security, out of the box. The 45H design also meets the intent of ANSI A117.1 section 404.2.6.

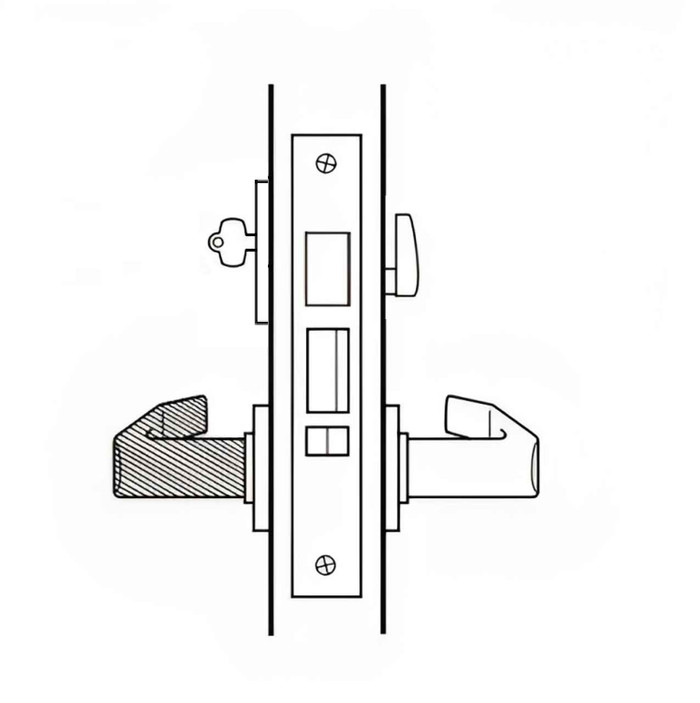

6) What does hotel function mean on the BEST 45HCA lock body?
Hotel function is the guest room configuration: it is keyed for guest and staff access with a shutout capability, and the 45HCA uses a four position hub toggle to set the locking operation during installation. If you need a straight office, classroom, or storeroom function instead, that is a different function code in the 45H family, not this lock body.
7) Which 45HCA finish should I specify for a healthcare or senior living property?
Two antimicrobial options are offered, 626AM satin chrome and 630AM satin stainless, both with the UltraShield coating that inhibits bacterial growth on the hardware surface. BEST recommends them anywhere cleanliness ranks high: hospitals, elderly care, education, transportation, food service and hospitality. The other thirteen finishes run from 605 bright brass through 690 statuary dark bronze with no antimicrobial coating.
8) I want to match the dark bronze and oil rubbed hardware already in my hotel corridors. What do those BEST finishes do over time?
Two live differently. The 613 oxidized satin bronze, oil rubbed, is meant to wear and take on an antique look as it ages, so it will not stay uniform across a floor of doors. The 690 dark bronze coating stays a dark brown appearance over time. If you need every opening to look the same in year five, 690 is the more predictable of the two.
9) Is the BEST 45HCA an electronic or access control lock?
No, it is a purely mechanical hotel function mortise lock body, key operated with an SFIC core. If your property is moving guest rooms to card or mobile credentials, this is not the platform for that.
10) Can I get the BEST 45HCA with tamper resistant screws for a guest room door?
Yes, security head screws are a selectable option on the order. On guest room and other public-side openings where the faceplate is reachable, they are worth specifying up front, since retrofitting them later means pulling the lock.
11) Why does the anti-friction latch on the 45HCA matter in a high traffic hotel?
The latch is a solid one-piece stainless steel part, oil-impregnated, and BEST states it makes about 50 percent more contact surface with the strike. In practice that means less wear at the strike lip and smoother operation on doors that get cycled hundreds of times a week. The hub runs on roller bearings for the same reason.
