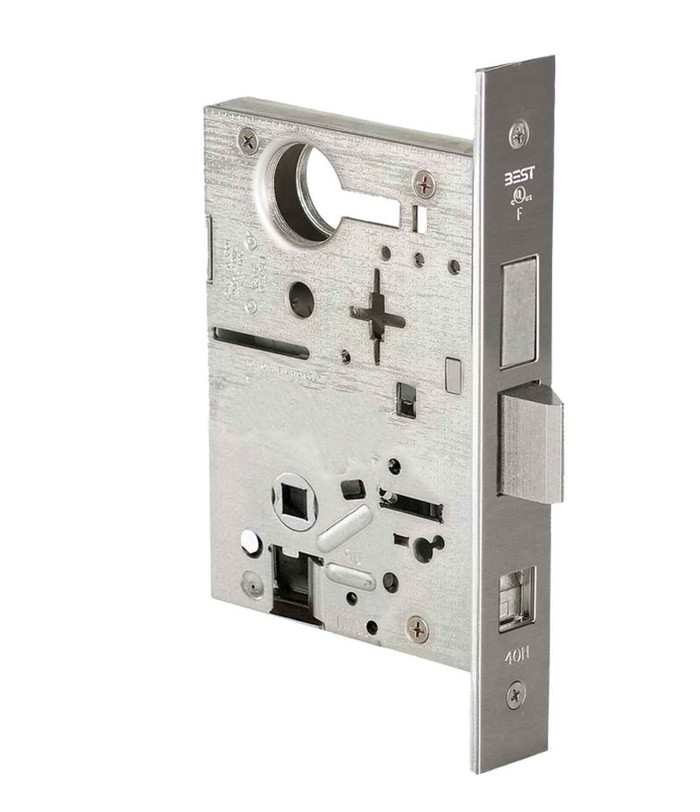

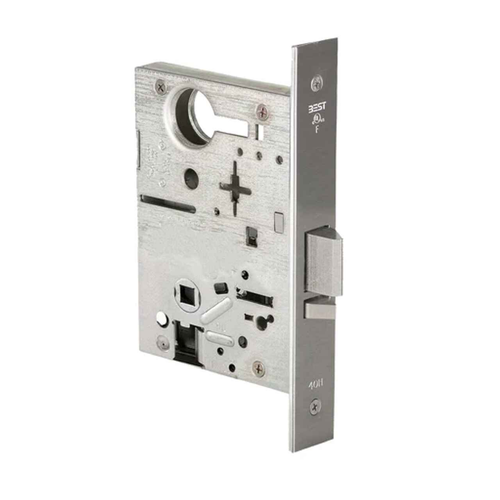

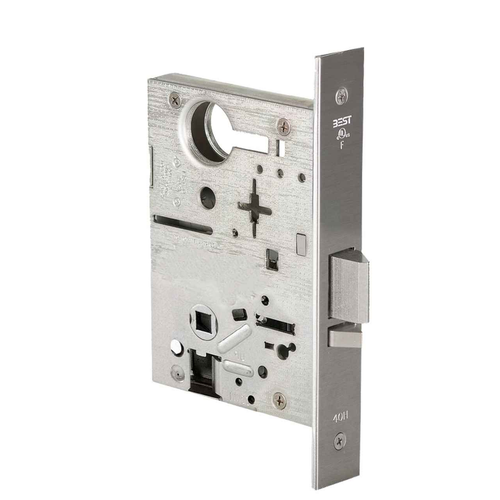

The BEST 45HCA Series mortise lock body delivers heavy-duty performance with double cylinder storeroom function and field reversible operation. Featuring a 2-3/4" backset and 8" H x 1-1/4" W x 1/16" T stainless steel faceplate, this lock body is engineered from 0.095" cold rolled steel for exceptional strength and durability. ANSI A156.13 Series 1000 Grade 1 Operation and Strength certified with Grade 2 Security rating for demanding commercial applications.

Professional Features & Benefits

• Heavy-Duty Steel Construction: 0.095" cold rolled steel case, cover, and armored front provide exceptional strength and durability for high-traffic commercial environments.
• Field Reversible Design: Reversible latch rotates 180 degrees for easy handing change without opening case, plus four position hub toggle design for flexible installation.
• Enhanced Security Features: Solid machined cylinder rings with wavy washer provide resistance to cylinder wrenching, plus cylinder security screw prevents core removal.
• Superior Latch Performance: Solid one-piece stainless steel anti-friction latch provides 50% more surface contact with strike for enhanced strength and security.
• Precision Engineering: Roller bearing hub mechanism ensures smooth, wear-resistant operation with enhanced cycle life and reduced strike wear.
• ANSI Grade 1 Certified: Meets ANSI A156.13 Series 1000 Grade 1 Operation and Strength with Grade 2 Security for professional reliability.
• Self-Aligning Installation: Armored front self-aligns with door bevel during installation, plus self-aligning trim mechanism for fast, accurate setup.
• Visual Lock Indication: Locking toggle includes clear "locked" and "unlocked" state indication with optional padlock icon visual indicators.

Technical Specifications

45H Series –The design and operation of the BEST® mortise lock meets the intent
of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core
(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1EK7K4 high security cylinder must be used with sectional trims.
47H Series – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security

Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case –0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Strike – For complete strike package spec’s see page 5.
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to
5" thick (specify thickness when ordering).
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during
installation.
Products protected by one or more of the following patents: 4,873,853 5,590,555 5,794,472
Finishes –
• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material) 625 – brightchromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
*690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish –
• 626AM – satin chrome plated with UltraShield™ antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™ antimicrobial protected coating
The BEST UltraShield finish inhibits the growth of bacteria and other microbes on the surface of the hardware.
NOTE: BEST UltraShieldTM option is recommended for use on any hardware application where product cleanliness is a high priority. i.e;.
Hospital/Healthcare, Elderly Care, Education, Transportation, Food-Service, Hospitality.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (standard 1-3/4" or up to 5" thick door configuration), stile width, and handing as applicable to this mortise lock body.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the 2-3/4" backset configuration.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for the 8" H x 1-1/4" W faceplate.
4. Install all mounting hardware and secure the lock body to door per manufacturer torque specifications, utilizing the self-aligning armored front design.
5. Adjust operational components including the four position hub toggle for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.
