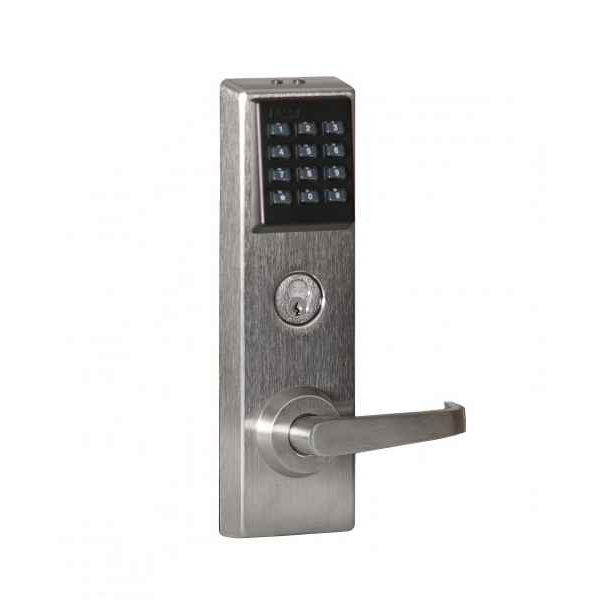

BEST EXZ EZ Series Electronic Keypad Exit Device Trim with Key Override Function

BEST EXZ EZ Series Electronic Keypad Exit Device Trim with Key Override Function

(No reviews yet) Write a Review

Model: EXZ0EV14KP626RHRVD9RM
$2,729.29
Selected Finish is
Selected Lever Style is
Selected Cylinder is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,729.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST EXZ EZ Series Electronic Keypad Exit Device Trim with Key Override Function

Standalone Electronic Access Control for Exit Device Applications

The BEST EXZ EZ Series electronic keypad exit device trim combines sophisticated access control functionality with heavy-duty mechanical construction. Designed for doors 1-3/4" to 2-1/4" thick with minimum stile widths of 4-3/4" for mortise and rim applications, this UL listed trim features forged housing construction and brass internal components for demanding commercial applications.

Professional Features & Benefits

  • Door Compatibility: Standard configuration for doors 1-3/4" to 2-1/4" thick with minimum stile requirements of 4-3/4" for mortise/rim and 3-3/4" for surface/concealed vertical rod applications.
  • Heavy-Duty Construction: Forged trim housing with brass, zinc, or corrosion-treated steel internal components for exceptional durability in commercial environments.
  • Standalone Operation: Functions as a sophisticated one-door access control system without requiring external controllers or complex wiring infrastructure.
  • UL Fire Rating: UL listed for electrically controlled single point locks on 3-hour A label doors for both U.S. and Canadian applications.
  • Professional Escutcheon: Compact 11-5/8" H x 3-3/8" W x 1" D dimensions provide clean appearance while accommodating keypad and override functions.
  • ADA Compliant Options: Lever handles #14 and #15 conform to California Titles 19 and 24 accessibility requirements.
  • Complete Strike System: Includes brass or bronze strike box (4-7/8" x 1-1/4" x 3/32") meeting ANSI A115.1 standards.
  • Versatile Trim Compatibility: Heavy-duty mechanical platform supports various trim styles for flexible installation options.

Technical Specifications

  • Materials – Internal parts are brass, zinc or corrosion-treated steel. Brass or bronze, 4-7/8" x 1-1/4" x 3/32". ANSI A115.1. Strike box supplied standard. Forged trim housing.
  • Door Thickness – Standard lock configuration designed for doors 1-3/4 to 2-1/4" thick.
  • Minimum Stile Width – Mortise and rim locking types 4-3/4"; surface and concealed vertical rod locking type 3-3/4"
  • Escutcheon –11-5/8" H x 3-3/8" W x 1" D
  • Lever handle – Brass or bronze. (Lever #14 and #15 conform to California Titles 19 and 24.).
  • Certification – UL listed For GYQS Electrically controlled single point locks or latches for use on 3 hour A label doors. The listing applies for both U.S. and Canadian applications.

Installation & Operation

  1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including keypad programming and key override functions per application requirements.
  6. Restore power and test all functions including normal operation, keypad entry, key override, and integration with connected exit device systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Educational Institution Access Control
  • Healthcare Facility Controlled Access
  • Retail Security Applications
  • Industrial Facility Entry Points
  • Government and Municipal Buildings
  • Multi-Tenant Commercial Properties

Why Choose BEST Quality?

BEST EZ Series electronic keypad trim delivers professional-grade reliability with forged housing construction and brass internal components designed for the toughest commercial applications. UL listed for 3-hour fire rated doors, this heavy-duty mechanical platform provides sophisticated access control functionality while maintaining the durability standards required for demanding institutional and commercial environments.

Product Specs

Series:
EZ Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trim
Subcategory:
Exit Device Trim
Commercial/Residential:
Commercial
Lock Function:
Exit Trim with Key Override
Electronic:
Yes
Product Attribute:
Electronic Locks
Product Category:
Electronic Locks
Department:
Door Hardware

BEST EXZ0EV14KP626RHRVD9RM – Frequently Asked Questions

1) Which exit devices does the BEST EXZ keypad trim mount to?
The EXZ trim is ordered to match the device it goes on. Options cover Precision 2000 Series in mortise, rim, and surface or concealed vertical rod configurations, plus Von Duprin 98/99 Series in rim and surface or concealed vertical rod. If your device is a Von Duprin 98 or 99 mortise, that combination is not one of the builds. Pick the device option first, because it determines the chassis behind the escutcheon.
2) Can I put the BEST EXZ electronic trim on a 3-hour fire rated door?
Yes. The EXZ trim is UL listed under GYQS for electrically controlled single point locks or latches on 3 hour A label doors, and the listing covers both U.S. and Canadian installations. That is the rating an institutional or MRO buyer needs for a stair or corridor opening on a rated wall.
3) Do I need a separate access control panel and wiring to run the BEST EXZ keypad trim?
No panel needed. The EXZ works as a standalone one-door access control unit, so codes live in the trim itself rather than in a head-end controller. That is the practical difference between this and a networked reader: you program it at the door, using the BEST Keypad EZ programming guide, and there is no cabling back to a panel. It is the right choice for a single back door, storage room, or tenant suite where running wire to a panel is not worth it.
4) What happens if the batteries die or someone forgets the code on the BEST EXZ trim?
There is a mechanical way in. The EXZ is built as exit trim with key override, so a keyed cylinder in the escutcheon retracts the latch independent of the keypad. That override is why this trim suits doors where a lockout is expensive, and it is what separates it from keyless-only panic trim such as the Lockey 285P.
5) Does the BEST EXZ trim take my existing BEST cores, or do I order it less core?
Both ways are available. The 7-pin housing accepts all BEST cores, which is what you want if the building is already keyed on a BEST small format interchangeable core system and you want the override key to work off the existing master key. A less core housing is the other option when the locksmith is supplying and pinning the core at install.
6) Do I have to specify handing on the BEST EXZ exit device trim?
Yes, and get it right before you order. The EXZ is built LHR (left hand reverse) or RHR (right hand reverse) only, which is normal for exit device trim since panic hardware always sits on an outswinging door. Stand outside the door: if it swings toward you and the hinges are on your right, it is RHR.
7) What is the difference between the BEST EXZ and the Dormakaba E-Plex E5010 exit trim?
Both are pushbutton electronic exit trims with key override, so they solve the same problem. The E-Plex E5010 is Grade 1 and covers doors 1-3/8 to 2-1/4 inches thick, which is the wider range if your opening is a thinner 1-3/8 inch door, since the EXZ starts at 1-3/4 inches. The EXZ is the one to take when the building runs BEST cores, because the 7-pin housing accepts all BEST cores and puts the override key on the existing system.
8) Can I use the BEST EXZ keypad trim on a pair of doors with no mullion?
Yes, on the vertical rod build. Order the surface and concealed vertical rod version (available for both Precision 2000 and Von Duprin 98/99), since a vertical rod device latches at the head and threshold rather than into a center mullion. That build also needs less stile, 3-3/4 inches versus 4-3/4 inches for mortise and rim. If you would rather keep rim devices on the pair, a keyed removable mullion such as the Detex 90 Series lets you use the rim version instead.
9) Will the BEST EXZ trim fit a narrow stile aluminum storefront door?
Probably not. The narrowest build, for surface and concealed vertical rod devices, still needs 3-3/4 inches of stile, and the mortise and rim versions need 4-3/4 inches. Typical narrow stile storefront runs about 2 inches, so measure your stile before ordering. The 11-5/8 x 3-3/8 x 1 inch escutcheon is the constraint.
10) What is the closest equivalent to the BEST EXZ keypad exit trim if the door already has a Corbin Russwin ED2200 or ED2400 exit device?
For a Corbin Russwin ED2200 or ED2400 device, the trim built for that chassis is the Corbin Russwin K157ET, a Grade 1 heavy duty key only trim with rose in classroom function. It is a mechanical key trim, so entry is by key rather than keypad code. The BEST EXZ EZ Series trim is built for the Precision 2000 Series in mortise, rim and surface or concealed vertical rod versions, and for the Von Duprin 98/99 Series in rim and surface or concealed vertical rod versions, so it is the answer when the device on the door is one of those and you want keypad entry with key override.
11) I need electric latch retraction so the door can be released from a card reader or remote. Is the BEST EXZ the right part?
No. The BEST EXZ EZ Series is standalone trim that grants access at the door by keypad code with a key override, and it mounts to an existing Precision 2000 Series or Von Duprin 98/99 Series device. For remote release you need the retraction built into the device itself: the ACSI ED4200-W036 is a Corbin Russwin ED4000 Series rim exit device with electric latch retraction on 24 volt AC or DC, Grade 1, wide stile. That is a complete device rather than trim, so it replaces the exit device on the door.
12) Which BEST EXZ lever meets ADA and California accessibility requirements?
Both of them. Lever 14 (curved with return) and lever 15 (contour with angle return) conform to California Titles 19 and 24, so either satisfies the accessibility spec on a California job. Choose between them on appearance and how the return matches the rest of the building's levers, not on code.
13) Is a strike included with the BEST EXZ trim or do I order one separately?
A strike box comes standard. It is brass or bronze, 4-7/8 x 1-1/4 x 3/32 inches, built to ANSI A115.1, so it drops into a standard A115.1 frame prep without cutting new. Internal parts are brass, zinc, or corrosion-treated steel behind a forged trim housing.
14) What finishes does the BEST EXZ keypad trim come in for matching existing hardware?
Five: 606 satin brass, 613 satin bronze oil-rubbed, 626 satin chrome, 626AM satin chrome antimicrobial, and 690 statuary dark bronze. For a property manager standardizing a building, 626 is the usual match to existing commercial lever hardware, and 626AM is the same look with an antimicrobial coating, which is why it turns up on healthcare and school openings.
15) Is there a keypad exit trim option that does not need batteries or power?
If you want code entry with no electronics at all, the Lockey 285P is a keyless mechanical panic trim with lever handle, and the Lockey 115P is a keyless passage lever panic trim with 1150 lock body; both cover doors 1 3/16 to 2 inches thick. The BEST EXZ is the electronic route: it is a powered keypad trim with audit-free standalone programming and key override. Mechanical means no power and no code audit; the EXZ means programmable codes at the door.
16) I only need key access on my exit device, not a keypad. What should I use instead?
Skip the electronics. For a key-only trim, the Corbin Russwin K157ET is a Grade 1 heavy duty classroom-function trim for ED2200 and ED2400 devices, and the Arrow SRX87 is a classroom-function Sierra lever trim with rose for S1150, S1250, ED910, and PEC910 devices for 1-3/4 inch doors. Trim is device-specific, so match the series on your existing device. The BEST EXZ only makes sense when you actually want programmable codes at the door.
17) What is a simpler keyless option than a BEST EXZ electronic keypad trim for a door that only needs a code, not audit trail or programming?
The Lockey 285P is a keyless mechanical panic trim with lever handle, and the Lockey 115P is a heavy duty keyless passage lever panic trim with a 1150 lock body; both fit doors 1 3/16 inch to 2 inch thick and need no power or wiring. The BEST EXZ EZ Series is an electronic keypad trim with key override that is programmed at the keypad and supports a BEST core in a 7-pin housing or a less core housing, so it is the choice when you need a credential you can change and a mechanical key override on the same opening.
18) Which keypad exit trim should I standardize on across a facility that is already keyed to BEST cores?
The BEST EXZ EZ Series takes a 7-pin housing that accepts all BEST cores, or a less core housing when the core is supplied from stock, so the override key stays on the existing keying system. It comes in 606 satin brass, 613 satin bronze oil-rubbed, 626 satin chrome, 626AM satin chrome antimicrobial, and 690 statuary dark bronze, in LHR and RHR handing. The Dormakaba E-Plex E5010 is the other electronic push button exit trim with key override, Grade 1 in the E-Plex 5000 Series, and it is the one to look at where the site is not standardized on BEST cores.
19) Are blank escutcheon and pull trims like the Von Duprin 379L-BE or Sargent 802 substitutes for the BEST EXZ keypad trim?
No. The Von Duprin 379L-BE is a blank escutcheon trim for 55 Series rim exit devices, Grade 1 heavy duty, and the Sargent 802 is a Grade 1 blank plate exit device trim with GTB design in the PE80 Series. The Detex 0A is a straight pull trim with blank escutcheon for Value Series devices and the Sargent 862 is a Grade 1 offset pull handle in the P800 Series. All of those give an exterior pull or a cover with no outside operation of the latch, so the door stays locked from outside. The BEST EXZ EZ Series is an exit trim with key override that retracts the latch by keypad code or key.
20) What is the difference between the BEST EXZ keypad trim and a storeroom or passage lever trim like the Deltana LTED60LST or LTED80LP?
The Deltana LTED60LST is a storeroom function lever trim for exit device 60, and the DDS-36 is a storeroom function lever trim for exit device 80; a storeroom trim keeps the outside lever fixed until a key is used. The Deltana LTED80LP is passage function for exit device 80, so the outside lever always retracts the latch, and the LTED80LS is entry function. The BEST EXZ EZ Series controls the outside lever by keypad code with a key override, so access can be granted or revoked at the door without rekeying.
21) For a classroom door, how does the BEST EXZ keypad trim compare with a classroom function lever trim like the Arrow SRX87 or Detex 08BN?
The Arrow SRX87 is a classroom function exit device trim with Sierra lever and rose for S1150, S1250, ED910 and PEC910 Series devices on 1-3/4 inch doors, and the Detex 08BN is a classroom S-lever exit trim with mortise cylinder for Value Series devices. Both are keyed mechanical trims, so a teacher needs the key on them. The BEST EXZ EZ Series is an electronic keypad trim with key override, UL listed for electrically controlled single point locks on 3 hour A label doors in both U.S. and Canadian applications, with lever 14 curved with return and lever 15 contour with angle return, both of which conform to California Titles 19 and 24.
22) Can the BEST EXZ trim be used to lock down a pair of doors, or do I need something else?
The BEST EXZ EZ Series is trim for a single device and is offered for rim, mortise, and surface or concealed vertical rod devices in the Precision 2000 Series and for rim and surface or concealed vertical rod devices in the Von Duprin 98/99 Series. For a pair of doors where one leaf carries a rim device, the Detex 90KR is a 90 Series keyed removable mullion for rim exit devices, which is the part that gives the rim device something to latch into and can be taken out to open the full pair. The two are used together rather than one in place of the other.
23) Is a dummy lever trim like the Corbin Russwin x650ET an alternative to the BEST EXZ keypad trim?
No. The Corbin Russwin x650ET is a Grade 1 heavy duty dummy lever trim with rose for ED7000 Series exit devices; a dummy lever is fixed and does not retract the latch at all, so it is used where the outside is meant to be pull only with a lever look. The BEST EXZ EZ Series is a working exit trim with key override, and its levers 14 curved with return and 15 contour with angle return conform to California Titles 19 and 24.
