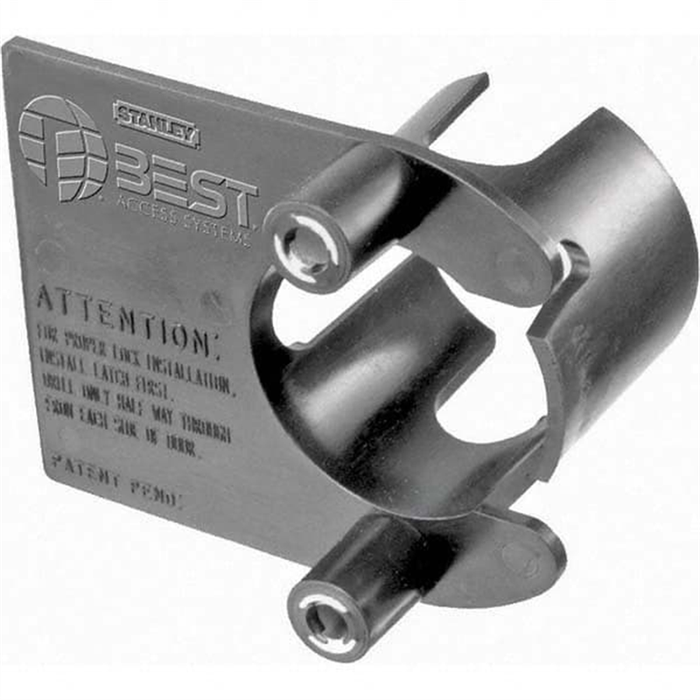

BEST KD303 9K door handle drill jig for cylindrical lock installation

BEST KD303 9K Door Handle Drill Jig for Cylindrical Lock Installation

(No reviews yet) Write a Review

Model: KD303

In Stock (leaves warehouse same day if ordered before 3pm ET)

$16.00
$11.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST KD303 9K Door Handle Drill Jig for Cylindrical Lock Installation

The BEST KD303 drill jig is a specialized installation accessory engineered to ensure precise alignment of 5/16" through bolt holes for 9K cylindrical lock mounting. This professional-grade jig inserts into the standard 2-1/8" bored hole and aligns with the door edge to guide accurate drilling with a 5/16" bit, eliminating guesswork and ensuring proper lock installation every time. Part of the BEST KD Series, it is built for locksmiths and contractors who demand consistent, repeatable results on commercial door preparations.

Key Features

  • Precise Hole Alignment: Ensures accurate 5/16" through bolt hole placement for proper 9K cylindrical lock mounting and operation.
  • Standard Door Compatibility: Designed to fit standard 2-1/8" bored holes for universal application across door preparations.
  • 9K Series Compatibility: Specifically engineered for BEST 9K cylindrical lock installations with proper bolt alignment.
  • Durable Construction: Built to withstand repeated professional use in demanding installation environments.
  • Time-Saving Design: Streamlines the installation process by providing an instant alignment reference for drilling operations.
  • Professional Installation Tool: Eliminates measurement errors and provides consistent results for locksmith and contractor installations.

Technical Specifications

  • PDF:D Series Service Equipment: https://zensupply.com/content/pdf/best/BA-0032_BEST_D-Series-Catalog-04-23.pdf
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Door Trim and Accessories
  • Product Group: Parts and Accessories
  • Product Model: KD303
  • Product Subgroup: Parts and Accessories
  • Product Type: Cylindrical/Tubular Equipment
  • Series: KD Series
  • Subcategory: Parts and Accessories

Typical Applications

  • Locksmith Installation Services
  • Commercial Door Hardware Installation
  • Institutional Facility Maintenance
  • Security System Integration Projects
  • Building Contractor Door Preparation
  • Property Management Lock Replacement
  • Educational Facility Hardware Upgrades

Why BEST KD303?

BEST KD Series installation accessories deliver professional-grade precision with durable construction designed for repeated use in demanding commercial applications. This specialized drill jig ensures consistent, accurate installations that meet professional standards for 9K cylindrical lock mounting. Engineered for locksmith and contractor use where precise hole placement is critical for proper lock function and security.

Manufacturer Resources

D Series Service Equipment

Product Specs

Subcategory:
Parts and Accessories
Series:
KD Series
Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Cylindrical/Tubular Equipment
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Tags:
lock drill jig, tubing drill jig
Product Model:
KD303
Product Category:
Door Trim and Accessories
Department:
Door Hardware

BEST KD303 – Frequently Asked Questions

1) What is the BEST KD303 drill jig used for?
The KD303 is an installation jig, not a lock part. It drops into the 2-1/8 inch bored hole in the door and indexes off the door edge so you can drill the two 5/16 inch through bolt holes for a BEST 9K cylindrical lock in the right place, first time. If you are prepping doors by hand or field-modifying an existing bore, it takes the layout guesswork out.
2) Will the BEST KD303 jig work on a standard 2-1/8 inch door bore?
That is exactly the prep it is built for. The KD303 inserts into a standard 2-1/8 inch bored hole, which is the normal cross bore on commercial and residential doors prepped for cylindrical locks, and registers against the door edge from there. If the door is already bored to 2-1/8 inches, the jig seats.
3) Can I use the KD303 drill jig for BEST lock series other than the 9K?
The KD303 is set up for BEST 9K cylindrical lock installations specifically, aligning the through bolt holes to that lock's mounting pattern. For a different BEST series or a mortise or exit device prep, this is the wrong jig, you want the installation template that matches that product's prep.
4) Does the KD303 bore the 2-1/8 inch hole, or do I still need a hole saw?
You still need to bore the door. The KD303 goes into a 2-1/8 inch hole that already exists and only guides the 5/16 inch through bolt drilling from there. Budget a separate 2-1/8 inch hole saw and the latch bore for new door prep, the jig covers the alignment step only.
5) What size drill bit do I need with the BEST KD303 jig?
A 5/16 inch bit. The jig guides the bit for the through bolt holes that mount a 9K cylindrical lock, so the bit size and the jig are matched, use anything else and the bolts will not pull up square.
6) Is the BEST KD303 a lock part or a tool I order once?
It is a tool. The KD303 is a BEST KD Series installation accessory, so it is bought per installer or per truck, not per door. One jig preps as many openings as you have, which is the point of it on a multi-door retrofit where every lock has to go on the same way.
7) How many KD303 jigs do I need for a crew doing a building-wide 9K lock changeover?
One per installer working a door. The KD303 is reusable hardware built for repeated commercial installs, so it is not consumed per opening, but it can only be in one bore at a time. Two techs prepping in parallel means two jigs, otherwise one is standing around waiting for it.
