Commercial Pivot Hinge Buying Guide: Replacing Legacy Kaba Ilco Hardware

By ZenSupply Locksmith Desk · Reviewed by ZenSupply technical staff · Last updated June 11, 2026

What is a Kaba Ilco pivot hinge?

"Kaba Ilco pivot hinge" is a phrase that shows up in legacy specs and locksmith parts requests, usually referring to pivot sets on aluminum entrance doors or interior pivoted leaves carried under the Kaba Ilco catalog. The Ilco line is best known for key blanks, cylinders, and door hardware accessories — pivots appear more often as replacement/repair parts than as new architectural specifications today.

If you're working from a spec that calls out a Kaba Ilco pivot, the practical move is to identify the function (center-hung, offset, or intermediate), the door weight, and the closer interface, then source a current production equivalent from Ives, Hager, or ABH. Rixson (Assa Abloy) remains the default for high-traffic entrance pivots with concealed floor closers.

What sizes and weight ratings do pivot hinges come in?

Pivot capacity is the headline spec. Light-duty interior pivots typically handle doors up to 300 lb; medium-duty entrance sets land in the 450–500 lb range; heavy-duty cam-lift and three-knuckle pivots reach 700–900 lb for monumental entrances.

Representative production options:

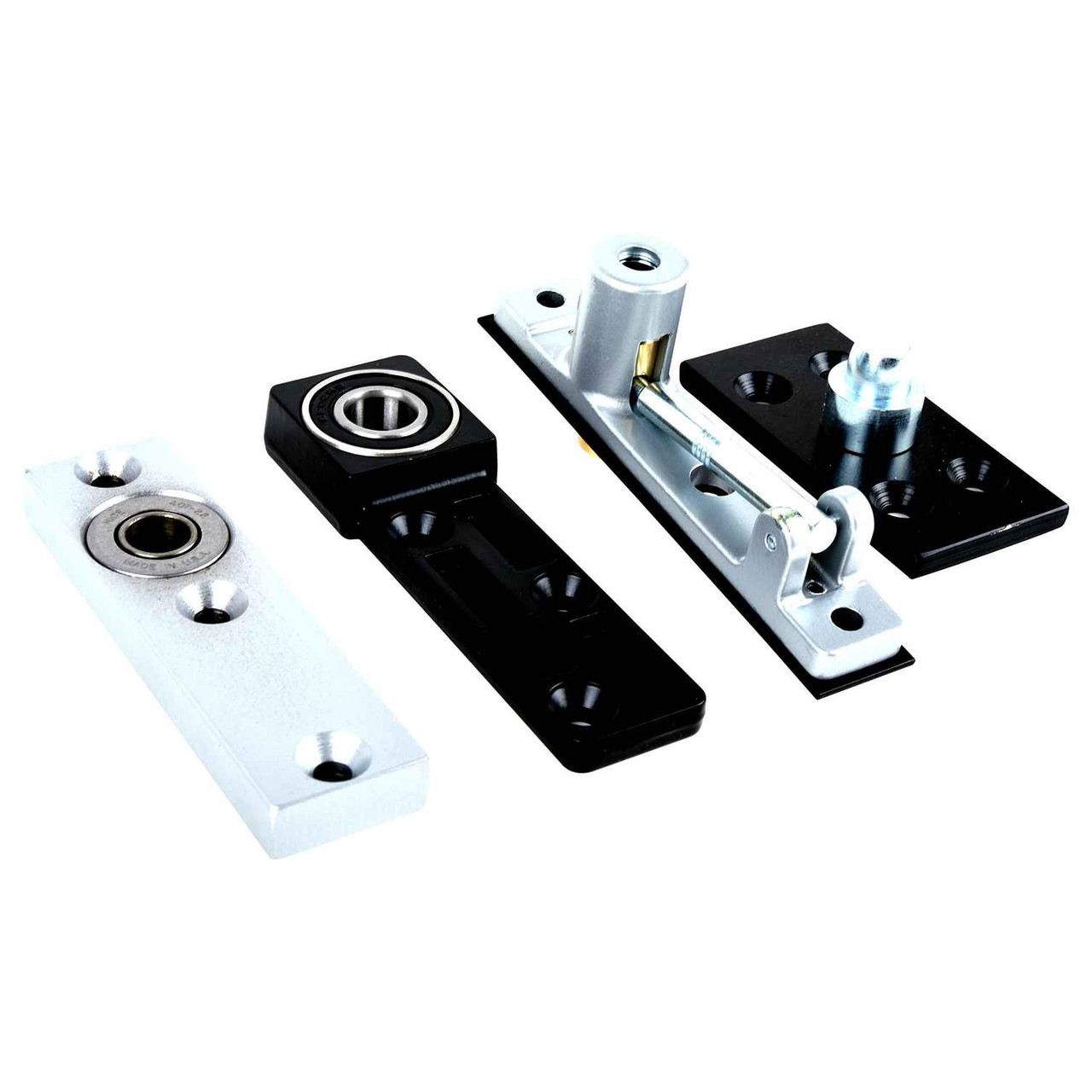

• Ives 7255 — center-hung set, 500 lb capacity, bottom base mount. Pairs with overhead concealed closers.
• Ives 7215 — 3/4" offset pivot set, 500 lb, header mount. Standard frame prep.

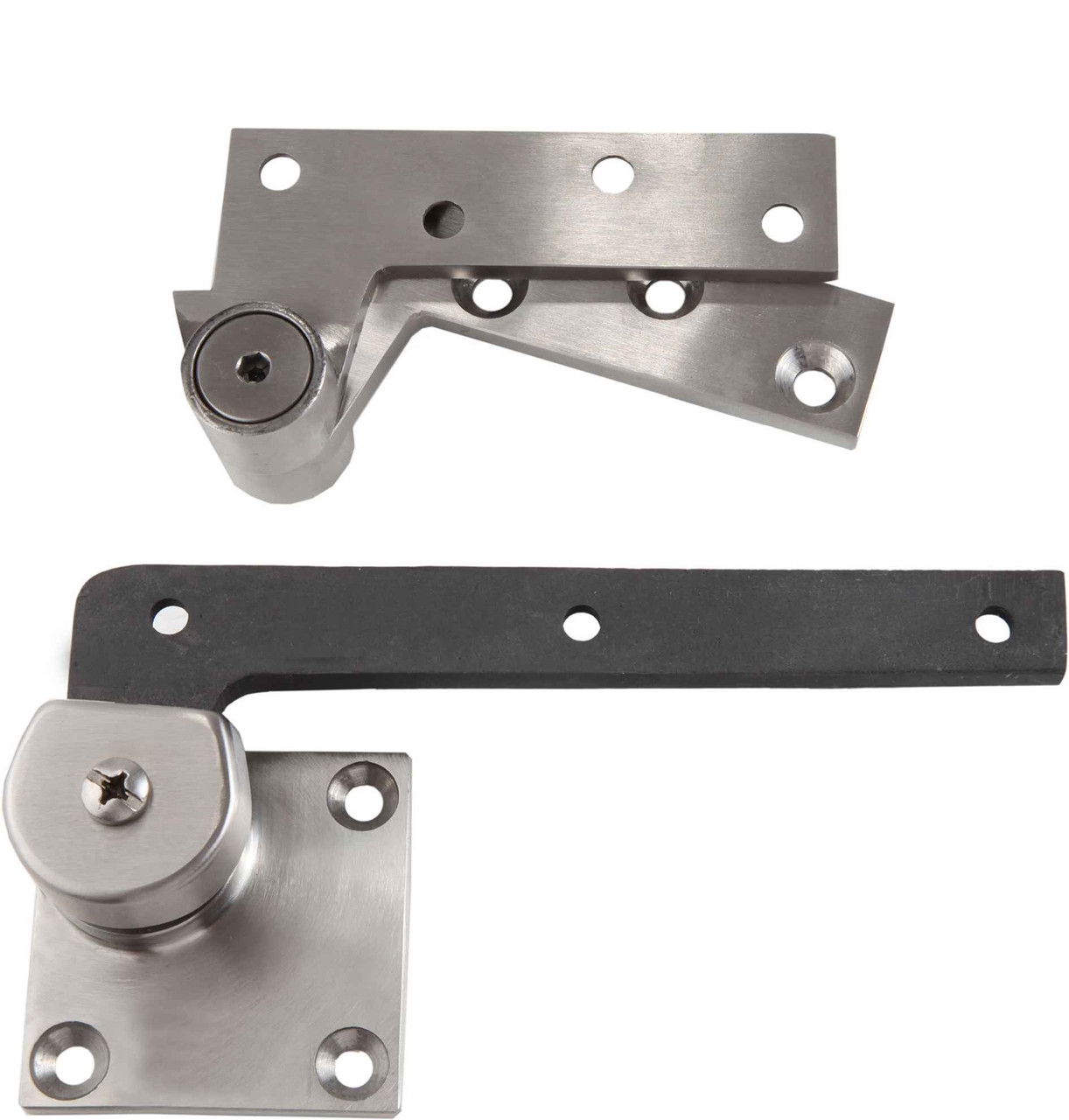

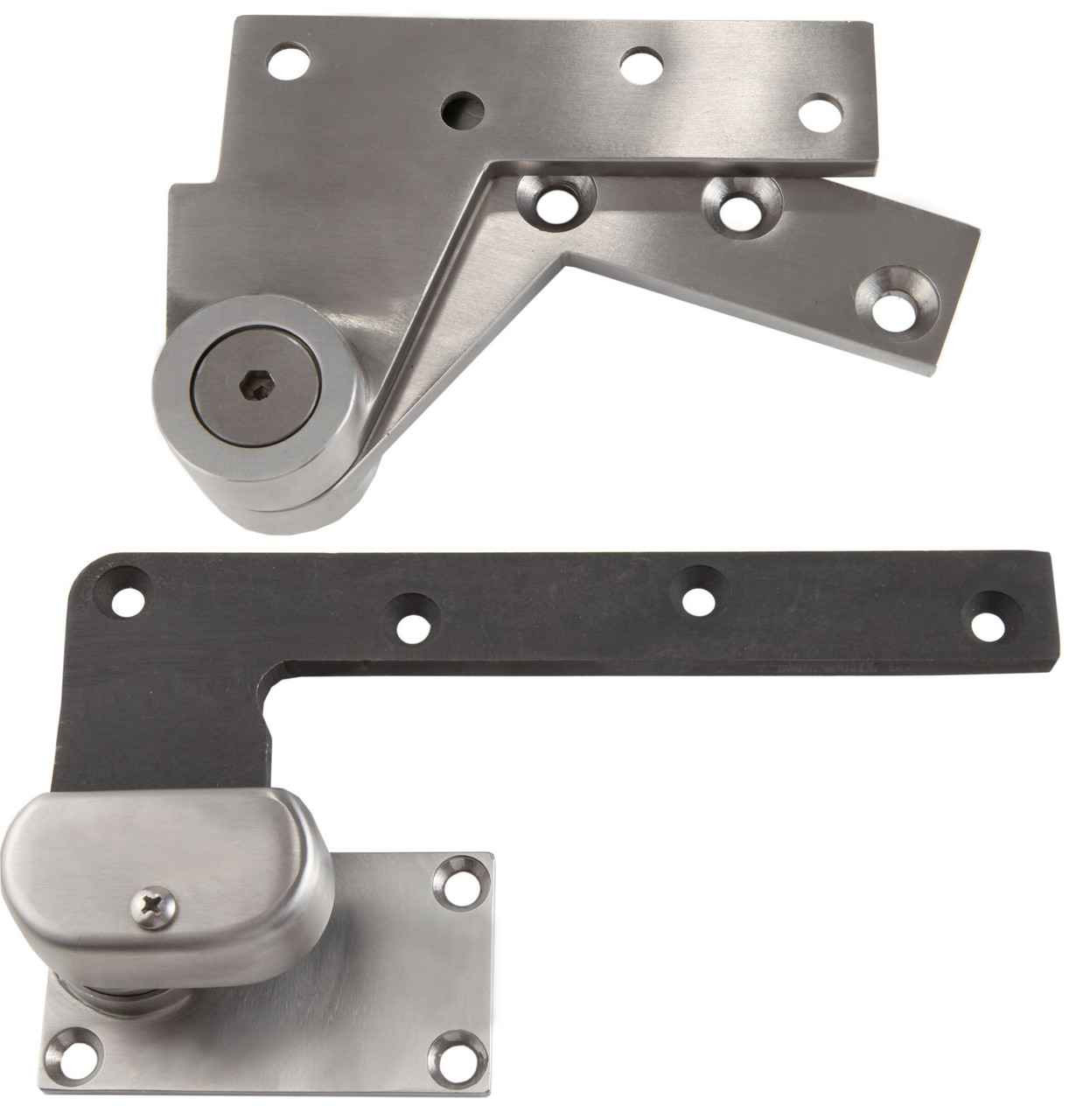

• ABH 0117 — 3/4" offset, up to 300 lb, fire-rated. Light to medium interior.
• ABH A9500 — cam-lift full mortise, 900 lb, 5" × 4-1/2" with 3/16" lift. Heavy entrance.
• Hager 500 — center-hung pivot, rack-and-pinion, brass standard weight.

Always size up: a 250-lb door on a 300-lb-rated pivot will wear bearings inside two years of office traffic. Spec the next tier when in doubt.

When should I spec pivot hinges instead of butt or continuous hinges?

Three trigger conditions push a door to pivots: weight beyond what standard butt hinges support, the need for an overhead concealed or floor closer with concealed swing, or a wide door (over 42") that would otherwise sag on butt hinges. Pivots transfer load to the floor and header, not to the jamb — that's the whole point.

Continuous geared hinges (the geared continuous hinge category) compete with pivots on heavy aluminum doors and offer easier installation and better load distribution along the full door height. The tradeoff: visible hinge line and incompatibility with floor closers. Pivots win on aesthetics and closer integration; continuous hinges win on retrofit ease and high-cycle durability.

For comparison reference, A156.1 sets cycle thresholds for hinge grades; closer pairings fall under A156.4, which sets Grade 1 closers at 1,500,000 cycles minimum.

How do I template and prep a door for an offset pivot?

Offset pivots (3/4" is the standard) mount in the door's top and bottom edges with corresponding plates in the header and threshold. Template number is everything — pull the existing pivot, find the manufacturer template stamp, and order the matching replacement or a cross-referenced equivalent.

Critical dimensions to confirm before cutting:

• Offset distance (3/4" is most common; some Rixson and Kaba Ilco templates run different)
• Door thickness (1-3/4" standard; aluminum stile doors vary)
• Top pivot vs intermediate pivot count (doors over 7'6" usually need an intermediate)
• Threshold prep for bottom pivot or floor closer spindle

If you're replacing into a Kaba Ilco prep without the original template, take a rubbing or photograph the mortise with a scale ruler and cross to a current Ives 7215, Hager 497, or Rixson 117 — those three cover most legacy 3/4" offset preps.

Need pivots now? Browse our commercial pivot inventory — same-day quote on volume orders for locksmith and GC accounts.

Are Kaba Ilco pivot hinges ADA and fire-rated compliant?

ADA compliance for pivoted doors is a function of the complete opening, not the pivot itself. The pivot must allow the door to meet ADA 2010 §404.2.3 (32" clear width), §404.2.7 (lever-operable hardware), and §404.2.9 (5 lbf maximum opening force for interior doors — fire and exterior doors exempt). Threshold height under §404.2.5 applies regardless of pivot type.

Fire-rated pivots must be labeled for use in fire door assemblies tested to UL 10C. The pivot itself doesn't carry a duration rating — the door/frame assembly does, with ratings up to 3 hours depending on construction. ABH 0117 and several Rixson sets are listed for fire-rated assemblies; verify the specific catalog number against the manufacturer's UL listing before specifying for a labeled opening.

NFPA 80 (2025) governs the installation — clearances generally limited to 3/4" at the bottom and 1/8" at top and sides, with tighter requirements possible per the assembly listing.

What are the best alternatives to Kaba Ilco pivot hinges?

For new construction or retrofits where you're not bound to the Kaba Ilco template, three brands cover the field:

Choose Rixson when:

• The opening uses a concealed floor closer (Rixson 27, 28, M19 are the spec-grade reference)
• Architect has called out monumental entrance hardware
• Door weight exceeds 600 lb
• You need broad finish and template availability for matching existing buildings

Choose ABH when:

• You need cam-lift function for high-traffic openings
• The opening is fire-rated and you want a current UL listing
• Heavy-duty (700–900 lb) capacity is required
• You're matching to an ABH-spec'd campus or institutional standard

Choose Ives or Hager when:

• Project is using Schlage/Allegion or Hager full-package hardware and you want supply chain consistency
• Door weight is in the 300–500 lb range
• You need straightforward 3/4" offset or center-hung sets without exotic templates
• Budget is value-tier rather than monumental

Do pivot hinges work with overhead concealed closers?

Yes — that's the canonical pairing. Center-hung pivots align the door's pivot point with an overhead concealed closer spindle, giving you a clean head with no visible closer body. LCN 2010/2030, dormakaba ITS96, and Rixson concealed overhead closers all assume center-hung pivot geometry.

Offset pivots typically pair with surface-mounted closers since the offset geometry doesn't align with most overhead concealed spindle locations. If you're swapping an existing offset-pivot door to an overhead concealed closer, expect to change pivots as part of the scope.

How Kaba Ilco compares to Rixson, ABH, and Ives

Kaba Ilco vs Rixson: Rixson is the default architectural spec for high-end entrance pivots and the only practical choice when matching a concealed floor closer in an existing Rixson prep. Kaba Ilco pivots, where they still appear in catalogs, function as legacy/repair parts. For new work, Rixson wins on availability, finish range, and template documentation.

Kaba Ilco vs ABH: ABH specializes in heavy-duty and detention-grade pivots with current UL listings. If your door is over 500 lb or needs a fire label, ABH gives you better documentation than chasing a Kaba Ilco cross-reference. ABH cam-lift designs (A9500 series) are purpose-built for high-cycle institutional entrances.

Kaba Ilco vs Ives: Ives covers the bread-and-butter 300–500 lb commercial range with straightforward templates and Allegion supply chain. For most interior or light entrance pivot replacements where the existing prep is standard 3/4" offset or center-hung, Ives 7215 or 7255 is the simplest substitution.

Brand / Series	BHMA Grade	Cycle Rating	Best For	List Price Tier
Ives 7255 Center Hung	Grade 1 capable	Paired closer rated to 1,500,000 minimum per A156.4 Grade 1	Center-hung doors to 500 lb with overhead concealed closer	Mid
Ives 7215 Offset	Grade 1 capable	Paired closer rated to 1,500,000 minimum per A156.4 Grade 1	3/4" offset retrofit, 500 lb, surface closer compatible	Mid
ABH 0117 Offset	Grade 1 capable	Paired closer rated to 1,500,000 minimum per A156.4 Grade 1	Fire-rated openings to 300 lb, labeled assemblies	Mid
ABH A9500 Cam Lift	Grade 1 capable	A156.1 Grade 1 hinge reference: 2,500,000 minimum	Heavy entrance to 900 lb, high-cycle institutional	High
Hager 500 Center Hung	Grade 1 capable	Paired closer rated to 1,500,000 minimum per A156.4 Grade 1	Standard-weight brass rack-and-pinion, mid-traffic	Mid
Rixson 117 / M19 series	Grade 1 capable	Paired closer rated to 1,500,000 minimum per A156.4 Grade 1	Monumental entrances, concealed floor closer pairing	High

Where can I buy pivot hinge replacement parts?

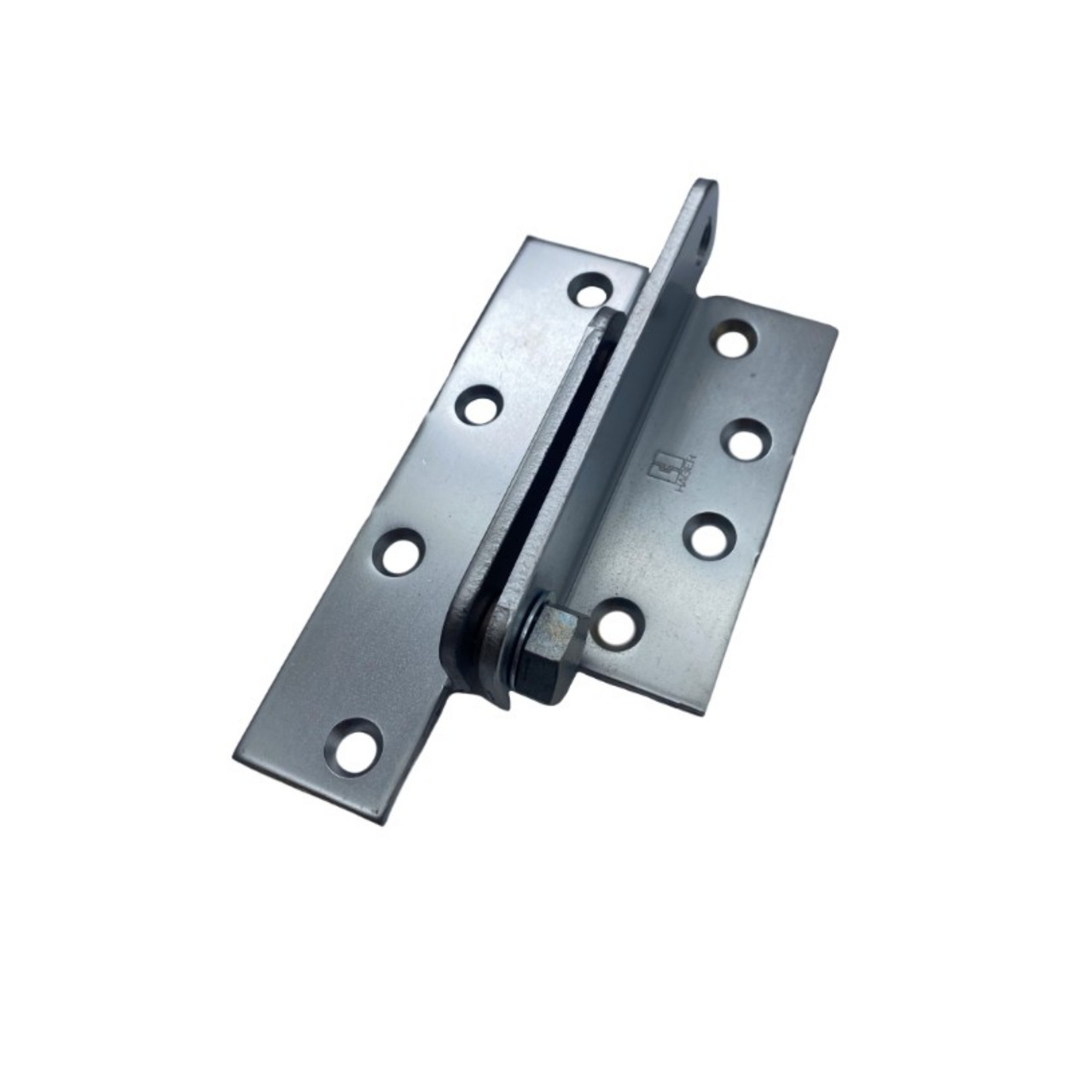

Pivot replacement parts — top pivots, bottom pivots, bearing inserts, and reinforcement plates — are stocked under commercial parts and accessories and the pivots category. For pivot-adjacent reinforcement, the Hager 253 reinforcing pivot handles 4-1/2" hinge backup at the top of high-frequency doors.

For Kaba Ilco-specific repair parts that are no longer in production, your fastest path is cross-referencing to the equivalent Rixson, ABH, Hager, or Ives template and ordering the current production set. If you're holding a partial pivot with a stamped template number, send it to our parts desk for a cross-reference quote.

Shop commercial pivot hinges at ZenSupply for in-stock Ives, ABH, and Hager pivot sets, plus sourcing for Rixson and legacy Kaba Ilco replacements.
