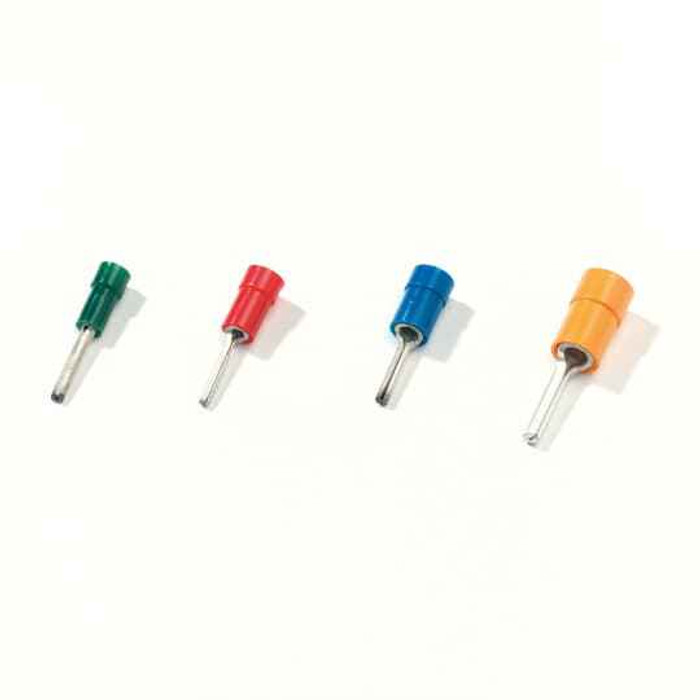

BLUE POLYCARBONATE PIN TERMINAL
Manufacturer Resources
Product Specs
- Country Of Origin:
- Sweden (SE)
- Product Subgroup:
- General Terminals
- Product Type:
- Polycarbonate Insulated Pin Terminal
- Wire Size:
- 1.5-2.5 mm²
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Electrolytic Copper
Sta-Kon RBP – Frequently Asked Questions
1) What wire size does the Sta-Kon RBP blue pin terminal accept?
The RBP pin terminal is sized for 1.5 to 2.5 mm2 conductors, which is roughly 16 to 14 AWG. The blue insulation is the standard color code for that range, so if you are pulling blue-coded terminals off a reel for 14 AWG control wiring, this is the matching pin.
2) Is the RBP pin terminal copper, and will it take solder or just a crimp?
The barrel is electrolytic copper, which is what gives it the ductility to form a proper crimp around a stranded conductor. Treat it as a crimp-only termination: insert the stripped conductor, crimp the barrel with a tool matched to the 1.5-2.5 mm2 range, and the pin end goes into the screw clamp or spring terminal.
3) Should I use a pin terminal or a fork/ring terminal on a terminal block?
Pin terminals like the Sta-Kon RBP are for terminals that clamp a round or flat pin from the front, screw clamp blocks and spring cage terminals being the usual case. Use a fork (spade) terminal where a screw head captures the wire from above and you want to be able to drop it on without removing the screw, and a ring terminal on a stud or where vibration could shake a fork loose. A pin will not seat properly under a screw-and-washer post.
4) How do I order the right Sta-Kon pin terminal for 14 AWG control wire?
Order it by the model designation RBP. That is the single blue, 1.5-2.5 mm2 polycarbonate pin terminal, so there is no separate finish, length, or packaging code to specify. Match the color to the wire range if you are standardizing a panel: blue is the 1.5-2.5 mm2 band.
5) What is the insulation on the Sta-Kon RBP made of, and does it matter in a panel?
Polycarbonate, not vinyl. For a panel builder that means a harder, more rigid sleeve that holds its shape against the conductor and resists cracking better than soft PVC when terminals are packed tightly in a wireway.
6) Where is the Sta-Kon RBP pin terminal made?
Country of origin is Sweden. That is the detail institutional and government procurement people usually need on record for a submittal, so it is worth capturing on the PO line.
