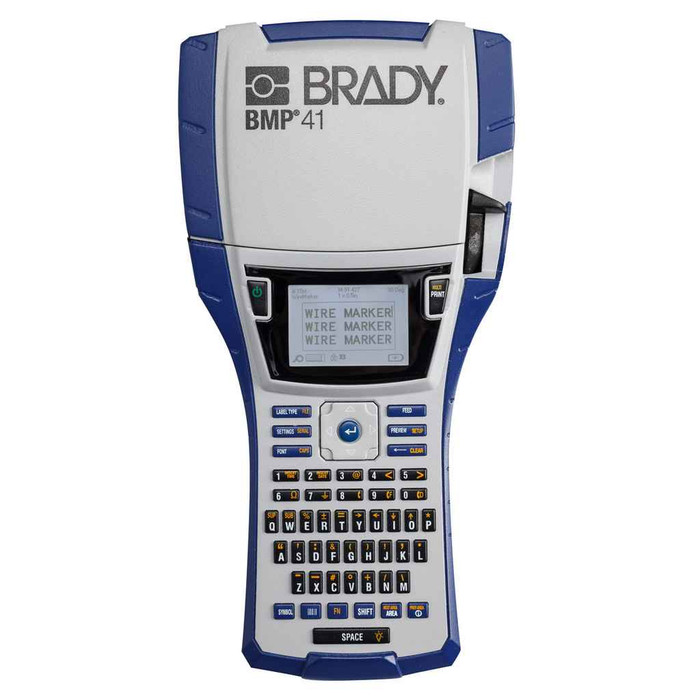

Brady BMP41 BMP41 Label Printer, 6" H x 6" W x 3.6" D

Brady BMP41 BMP41 Label Printer, 6" H x 6" W x 3.6" D

(No reviews yet) Write a Review

Model: BMP41
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$549.99
$499.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
BMP41 Label Printer, 6" H x 6" W x 3.6" D

  • Features

    • Handheld label printer for creating multi-line labels to identify wires, panels, circuit boards and any other industrial items
    • QWERTY keyboard contains letters A to Z, numbers 0 to 9, and backlit LCD graphics display for easier labeling even in low-lit areas
    • Prints in different text sizes ranging from 4 point to 103 point in a single color
    • Compatible with Brady M Series label tape cartridges to enable printing of various label styles and widths.

Manufacturer Resources

Product Specs

Application:
Asset Tracking; Component and Equipment Labeling; Data and Telecommunications Labeling; Electrical
Auto Shut Off Power Conserve:
10 minutes; User Configurable
Barcode Capability:
Yes
Barcode Symbologies 2d:
More Through Brady Workstation
Barcode Symbologies Linear:
Code 128; Code 39; More Through Brady Workstation
Battery Mah Rating:
1200 mAh
Battery Type:
Rechargeable NiMH Battery
Calculated Language:
Danish, Dutch, English (US), Finnish, French (France), German, Italian, Norwegian, Portuguese (Port
Cartridge Printer Series:
M Series (M-, MC-, MC1-)
Color Printing Capability:
Single Color
Connectivity Options:
USB
Contains Ca Prop 65 Substance:
No - Does not contain
Contains Heavy Metal S :
Unavailable
Continuous Die Cut Materials Supported:
Continuous Tapes & Die-Cut Labels
Cutter Type:
Single Hand Manual Actuate; Straight Cut
Depth In Ft Yd :
3.5 in
Depth Mm Cm M :
88.90 mm
Dimensions Metric :
152.40 mm W x 292.10 mm H x 290 mm L x 88.90 mm D
Display Resolution:
240 x 160 pixels
Display Type:
LCD
Enables Industry Compliance:
FCC Part 15 Class A
Eu Rohs Compliance:
Pass Ex 2015/863
Eu Rohs Compliant:
Yes
Font Sizes:
4 pt to 103 pt Text
Font Styles:
Brady Alpine; Brady Fixed Width
Height In Ft Yd :
11.5 in
Height Mm Cm M :
292.10 mm
Includes:
(1) AC Adapter/Battery Charger (M-AC-143110); (1) Battery Pack (BMP41-BATT); (1) BMP®41 Printer (BM
Keyboard Type:
QWERTY
Label Media Format:
Cartridge
Label Retention Feature:
Yes
Languages Available:
Danish; Dutch; English (US); Finnish; French (France); German; Italian; Norwegian; Portuguese (Port
Manufacturer Part Number:
BMP41
Maximum Label Tape Width In Ft Yd :
1 in
Maximum Label Tape Width Mm Cm M :
25.40 mm
Maximum Labels Per Day:
250
Maximum Liner Width In Ft Yd :
1.313 in
Maximum Print Speed:
1.3 in/s
Maximum Print Width In Ft Yd :
1.000 in
Maximum Print Width Mm Cm M :
24.40 mm
Maximum Printed Label Length In Ft Yd :
25 ft
Maximum Printed Label Length Mm Cm M :
7620.00 mm
Memory:
48 MB
Minimum Label Length In Ft Yd :
0.240 in
Minimum Label Width:
6
Minimum Liner Width In Ft Yd :
0.813 in
Mode Of Operation:
Stand-Alone & PC Connect
Number Of Symbols:
450
Patent Number S :
US 6929415, 5951177, 591898
Plug Type:
US
Portability:
Yes
Power Supply Voltage:
110 to 240 V
Primary Noun Basic Function:
Printer
Print Resolution:
300 dpi
Print Technology:
Thermal Transfer
Printer And Label Applications:
Datacom; Electrical; General Identification; Wire & Cable
Printer Features:
Single Color Printers
Printer Weight G Kg :
1.29 kg
Printer Weight Oz Lb :
2.85 lb
Product Dimensions:
11.5 in H x 6 in W x 3.5 in D
Recharge Time:
3 hours
Sds Safety Data Sheet Required:
Yes = MSDS/SDS is required
Serialisation:
Multiple & Linked
Shipped With Battery:
Yes
Sign Size General:
11.5 in x 6 in
Size Length Mm :
290 mm
Size W X H X D Mm :
152.40 x 292.10 x 88.90
Size Width Mm :
152.40 mm
Smart Cell:
Yes
Software Compatibility:
Brady® Workstation; CodeSoft™; Labelmark™ Software
Special Characters Quantity:
123
Symbols Categories:
Arrows; CLP/GHS; Datacomm; Electrical; Exit; Fire Safety; First Aid; Greek; Home Electrical; HSID;
Total Qty Per Pack:
1 Piece(s) / Box
Trade Name:
BMP®41
User Interface Type:
Full QWERTY Keyboard
Warranty Emea :
2 Years
Weight G Kg :
1.30 kg
Width In Ft Yd :
6 in
Width Mm Cm M :
152.4 mm
Department:
Electrical

Brady BMP41 – Frequently Asked Questions

1) What label cartridges does the Brady BMP41 take?
The BMP41 runs Brady M Series cartridges, which covers the M-, MC- and MC1- prefixes. Both continuous tapes and die-cut labels load in the same cartridge format, and the cartridges carry a smart cell so the printer reads the media it has in it. Tape width goes up to 1 inch (25.4 mm), with liner widths from 0.813 inch up to 1.313 inch.
2) Can I use the BMP41 away from an outlet on a job site, and how long does the battery last between charges?
It is a handheld, battery-powered unit shipped with a rechargeable NiMH pack rated 1200 mAh, so it goes in the truck and works at the panel. Recharge takes about 3 hours on the included AC adapter/charger, which accepts 110 to 240 V with a US plug. The printer shuts itself off after 10 minutes of inactivity, and that timeout is user configurable if you want it longer while you work through a run.
3) What comes in the box with a BMP41 printer?
Each BMP41 ships as one piece per box and includes the printer itself, the battery pack (BMP41-BATT) and the AC adapter/battery charger (M-AC-143110). Label cartridges are the consumable and are ordered separately by material and width.
4) Do I need a computer to use the BMP41, or can it print standalone?
Both. The BMP41 works stand-alone off its full QWERTY keyboard and backlit LCD, and it also connects by USB to a PC. On the software side it works with Brady Workstation, CodeSoft and LabelMark. Onboard memory is 48 MB for stored files.
5) Will the BMP41 print barcodes for asset tags?
Yes. It prints linear barcodes including Code 39 and Code 128 out of the box, with additional linear and 2D symbologies available when you drive it from Brady Workstation. Serialization is supported, both multiple and linked series, which is what you want when tagging a run of assets or panel circuits.
6) Is the BMP41 heavy duty enough for daily wire and panel labeling in a facility?
It is rated for up to 250 labels per day, which suits an electrician or MRO tech doing wire markers, panel schedules, circuit board and datacom identification rather than a production label shop. Print speed is 1.3 in/s. For volumes well above that, step up to a bench or production-class printer.
7) Does the BMP41 have built-in electrical and safety symbols, or do I have to design labels on a PC?
There are 450 symbols onboard plus 123 special characters, covering electrical, home electrical, datacomm, arrows, exit, fire safety, first aid, CLP/GHS, HSID and Greek characters. That means arc flash and GHS style content can be built right on the keypad without a laptop.
8) How long a label can the BMP41 print, and does it cut them?
Label length runs from a minimum of 0.240 inch up to 25 feet (7620 mm) in a single printed label, so continuous pipe or raceway marking is workable. Cutting is a single-hand manual actuated straight cut.
9) How big and heavy is the BMP41 to carry on a ladder?
The printer measures 11.5 in H x 6 in W x 3.5 in D and weighs 2.85 lb (1.29 kg) as a printer. It is built as a portable handheld with a backlit 240 x 160 pixel LCD so it stays readable in a dark mechanical room or crawlspace.
10) Does the Brady BMP41 meet RoHS and FCC requirements for institutional purchasing?
For procurement paperwork: the BMP41 is EU RoHS compliant, passing exemption 2015/863, and enables compliance with FCC Part 15 Class A. It is also recorded as not containing a California Prop 65 substance.
11) Can crews who don't work in English use the BMP41 menus?
Menu languages include English (US), Danish, Dutch, Finnish, French (France), German, Italian, Norwegian and Portuguese, which helps when a mixed crew shares one printer across a facility.
