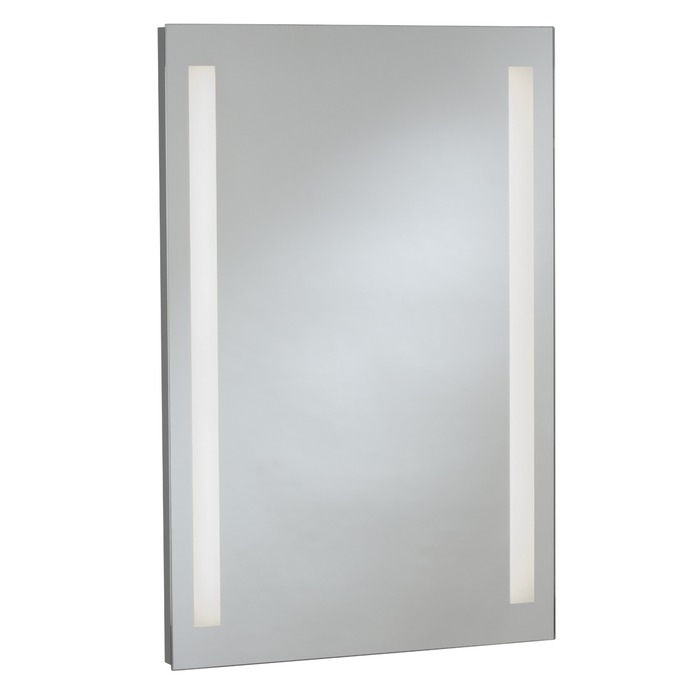

Bobrick B-169-3040 Led Backlit Mirror - Side Lit

Bobrick B-169-3040 Led Backlit Mirror - Side Lit

(No reviews yet) Write a Review

Model: 169 3040

In Stock (leaves warehouse same day if ordered before 3pm ET)

$946.40
$887.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bobrick B-169-3040 Led Backlit Mirror - Side Lit

Commercial grade mirror construction combined with LED-lights reflecting quality, value and style. Mirror and mounting panel is IP44 rated, lead free silver backing exceeds ISO 9227:201, 120 hour corrosion testing. Light engine is IP66 rated with 50,000 hours estimated life. Dimming option. Optional 30” cord with a flat three-prong plug (Order 164-57). 6mm safety film backed glass mirror, with backside aluminum frame with key lock holes, for wall mounted installation.

Available in the following sizes:

  • B-169 2436: 24″ W x 36″ H (610 x 914mm), 12 Watts (W), 3000 Kelvin (K), 1250 Lumens (LM)
  • B-169 3040: 30″ W x 40″ H (762 x 1016mm), 14 Watts (W), 3000 Kelvin (K), 1450 Lumens (LM)with backside aluminum frame with key lock holes, for wall mounted installation.

Product SpecsType : LEDGlass Type : StandardAccessibility : ADA CompliantTechnical Data Sheet

Manufacturer Resources

Product Specs

Product Type:
Mirrors
Product Group:
Washroom/Bath Accessories
Product Subgroup:
Mirrors
Product Wattage:
14W
Department:
Plumbing
Product Depth:
1 3/4"

Bobrick 169 3040 – Frequently Asked Questions

1) What sizes does the Bobrick B-169 side lit LED mirror come in?
Two sizes. The B-169 2436 is 24 inches wide by 36 inches high (610 x 914mm), running 12 watts at 3000K and 1250 lumens. The B-169 3040 is 30 inches wide by 40 inches high (762 x 1016mm), 14 watts at 3000K and 1450 lumens. Both are the same warm-neutral 3000K color temperature, so mixing sizes across a restroom won't give you mismatched light color.
2) How far does the Bobrick B-169 LED mirror stick out from the wall?
Projection is 1 3/4 inches off the finished wall. That matters on ADA lavatory walls and in tight toilet rooms where anything protruding more than 4 inches between 27 and 80 inches above the floor becomes an obstruction issue. At 1 3/4 inches deep, the mirror sits well inside that.
3) Is the Bobrick B-169 backlit mirror ADA compliant?
Yes, the B-169 is listed as ADA compliant. Keep in mind ADA also governs where you hang it, not just the unit itself, so the mounting height on the wall still has to be coordinated with the lavatory below it.
4) Is the Bobrick B-169 mirror hardwired or does it plug in?
It's set up for hardwired wall-mounted installation as supplied. If you need a cord-and-plug connection instead, Bobrick offers an optional 30 inch cord with a flat three-prong plug, ordered separately as 164-57. Decide that before rough-in, because it determines whether your electrician runs a junction box behind the mirror or sets a receptacle.
5) Can the Bobrick B-169 LED mirror be used in a wet or high-humidity restroom?
It's built for it. The mirror and mounting panel carry an IP44 rating, and the light engine itself is IP66. The silver backing is lead free and passes ISO 9227:201 120 hour corrosion testing, which is the salt-spray test that predicts black-edge failure on mirrors in humid gang restrooms and shower rooms.
6) How is the Bobrick B-169 mirror mounted to the wall, and can it be removed after install?
There's an aluminum frame on the backside with key lock holes that drops over fasteners set in the wall. That keyhole arrangement means it lifts off for service or glass replacement without cutting anything, which is the reason facilities crews prefer it over adhesive or clip-mounted mirrors. Set your blocking behind the finished wall before closing it up.
7) What happens if the glass on this Bobrick backlit mirror gets broken in a public restroom?
The glass is 6mm with a safety film backing, so a strike holds the fragments to the film rather than dropping shards into the lavatory. That's the construction you want in schools, transit, and high-traffic public washrooms where vandalism is a real line item.
8) Can the lights on the Bobrick B-169 mirror be dimmed, and how long do they last?
Dimming is available as an option on the B-169. The light engine is rated for an estimated 50,000 hours of life, which at 12 hours a day of restroom use is roughly eleven years before you'd expect to be dealing with the LED module. That lifespan is a large part of why spec writers pick an integrated LED mirror over a separate mirror plus vanity fixture.
9) Will the 30 x 40 Bobrick B-169 mirror put out enough light to skip a separate vanity fixture?
The 30 by 40 inch B-169 3040 delivers 1450 lumens at 14 watts, side lit at 3000K. Side lighting puts the light source at the user's face rather than overhead, which kills the shadowing you get from a ceiling can. In a single-user or small commercial restroom that's typically enough on its own; over a multi-station gang lavatory, treat it as task lighting and keep ambient overhead lighting in the design.
