Bolts 1/2-13 X 1-1/2 Hxbt Sbr (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- United States
- Dimensional Standard:
- ASME B18.2.1
- Division:
- Electrical H1
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.736 - 0.750 in.
- Fastener Height:
- 0.302 - 0.323
- Fastener Length:
- 1/1/02
- Language Code:
- EN
- Material Standard:
- ASTM F468
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 5.87 lbs
- Product Width:
- 3.5 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 13
- Thread Standard:
- ANSI/ASME B1.1
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BBH and JBBH
- Product Finish:
- Bronze
- Product Details:
- Hexagonal Bolt
- Product Material:
- Silicon Bronze
Metallics JBBH47D – Frequently Asked Questions
1) What thread does the Metallics JBBH47D hex bolt take, and what nut do I need?
It's a 1/2-13 bolt, so 13 threads per inch on a 1/2 inch diameter, cut to ANSI/ASME B1.1. That's the standard UNC coarse pitch for 1/2 inch, so any 1/2-13 hex nut will run on it. For a bronze grounding connection, pair it with a silicon bronze nut so you aren't mixing dissimilar metals at the joint.
2) Does this Metallics bolt qualify for a Buy American or ARRA-funded job?
It does. The JBBH47D is flagged both Buy American compliant and ARRA compliant, with country of origin United States. That covers the documentation most federal, state, and municipal projects ask for on fasteners.
3) How many bolts come in a jar, and can I buy fewer than that?
The JBBH47D ships as a jar of 50, and 50 count is the order minimum, so the jar is the smallest unit sold. Metallics does offer other sizes and quantities on request if 1/2-13 x 1-1/2 in a 50-pack isn't the right fit for the job.
4) What is the difference between the Metallics BBH and JBBH bolt part numbers?
Both belong to the same BBH and JBBH silicon bronze hex bolt series. The J prefix on JBBH47D indicates the jar pack, which is the 50 count container. BBH numbers are the same bolt in other packaging. If you want bulk rather than jars, ask for the BBH equivalent of the 1/2-13 x 1-1/2 size.

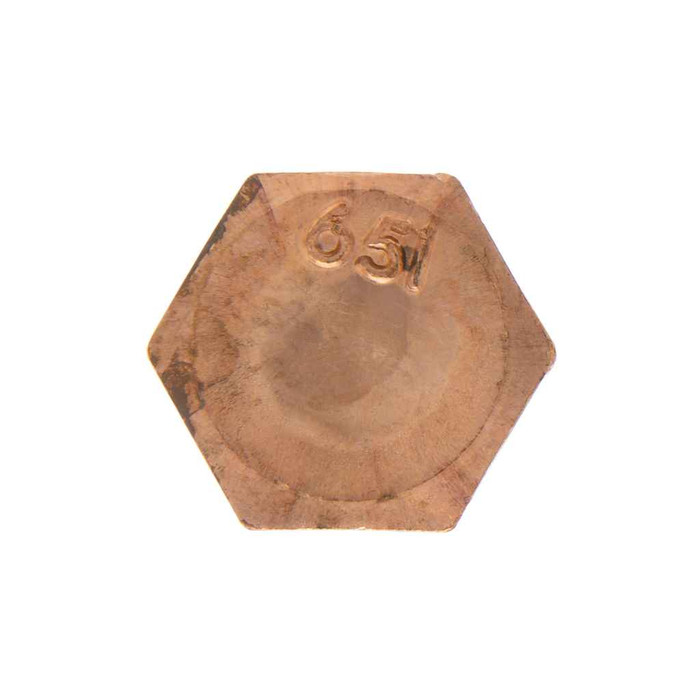

5) Is the bronze color on these bolts a finish or the actual metal?
It's the metal. The bolt is solid silicon bronze with a bronze finish, not a plated or coated steel bolt, so cutting, scratching, or wrenching the head won't expose a different base metal that can rust later.
6) What does a jar of 50 of these 1/2 inch bronze bolts weigh for shipping?
A full jar comes to 5.87 lbs. The jar itself is 3.5 inches across and 5.75 inches tall, so it drops into a parts bin or a van shelf without repacking.
