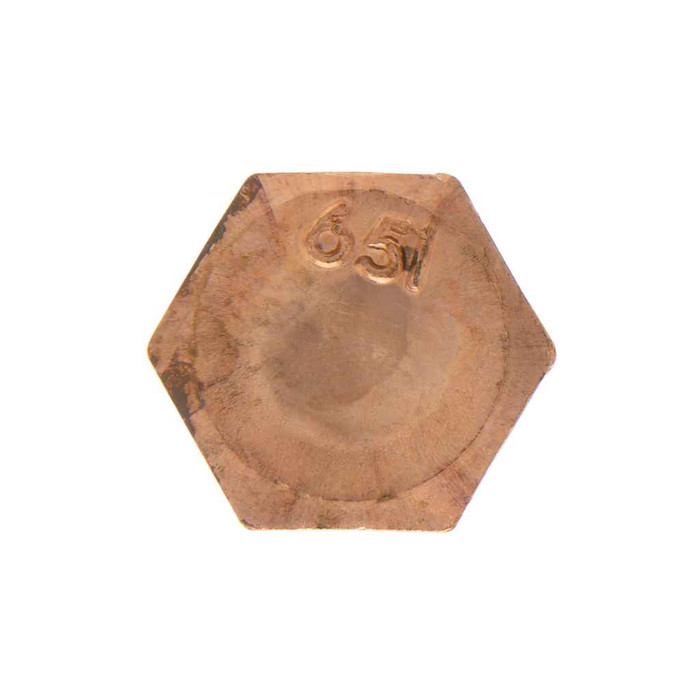

Bolts 1/2-13 X 3-1/2 Hxbt Sbr (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Dimensional Standard:
- ASME B18.2.1
- Division:
- Electrical H1
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.736 - 0.750 in.
- Fastener Height:
- 0.302 - 0.323
- Fastener Length:
- 3/1/02
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Language Code:
- EN
- Material Standard:
- ASTM F468
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_Silicon_Bronze.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 11 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 13
- Thread Standard:
- ANSI/ASME B1.1
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BBH and JBBH
- Product Finish:
- Bronze
- Product Details:
- Hexagonal Bolt
- Product Material:
- Silicon Bronze
Metallics JBBH36 – Frequently Asked Questions
1) Why use a silicon bronze bolt instead of a galvanized or stainless hex bolt?
Silicon bronze is the choice where corrosion and dissimilar-metal contact are the problem: marine and wet environments, grounding and bonding work, and fastening to bronze or copper components where a galvanized bolt would set up galvanic corrosion. The JBBH36 is solid silicon bronze with a bronze finish, made to ASTM F468 (the material spec for nonferrous bolts), and Metallics lists it for electrical, plumbing, and HVAC work. If you're bolting plain steel to steel indoors, a cheaper zinc-plated bolt does the same mechanical job.
2) Can I use Metallics silicon bronze bolts on a federally funded Buy American job?
No. The JBBH36 is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. If your contract carries a domestic-sourcing clause, this bolt won't satisfy it and you'll need a domestically produced silicon bronze fastener instead.
3) What is the hex head size on the Metallics 1/2-13 bronze bolt, and what wrench fits it?
Head width across flats runs 0.736 to 0.750 inch and head height is 0.302 to 0.323 inch, so a 3/4 inch wrench or socket is the fit. That is the standard 1/2 inch hex bolt head under ASME B18.2.1, which this bolt is dimensioned to, so it clears normal washer and counterbore prep.
4) How many bolts come in a jar of Metallics JBBH36, and can I buy less than a full jar?
JBBH36 ships as a jar of 50 bolts, and 50 each is the order minimum, so the jar is the smallest unit. Metallics notes other sizes and quantities can be had by request if 3-1/2 inch or a 50 count doesn't suit the job.
5) Is the Metallics JBBH36 a standard dimension bolt that will match the bronze hardware already on my structure?
It is dimensioned to ASME B18.2.1 and threaded to ANSI/ASME B1.1, the standard inch hex bolt and thread specs, so head and thread geometry interchange with any other 1/2-13 hex bolt built to those standards. Material is silicon bronze to ASTM F468, which is what you want if the existing fasteners are bronze. Exact color tone of a bronze finish can vary by lot and will weather over time.
6) Does the JBBH36 jar include nuts and washers?
No. The jar contains 50 hex bolts only, 1/2-13 by 3-1/2 inch. Nuts and washers are separate, and for a bronze joint you'll want them in silicon bronze as well so the assembly stays one metal.
7) How much does a jar of 50 Metallics JBBH36 bronze bolts weigh for shipping?
A jar of 50 comes in at 11 lbs, with the packaged jar measuring 4.5 inches wide by 4.5 inches long and 7.25 inches high. Useful if you're pricing out a pallet or a van load of multiple jars.
