Metallics G5HTB47V Bolts 1/2-1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$52.03
$1.93

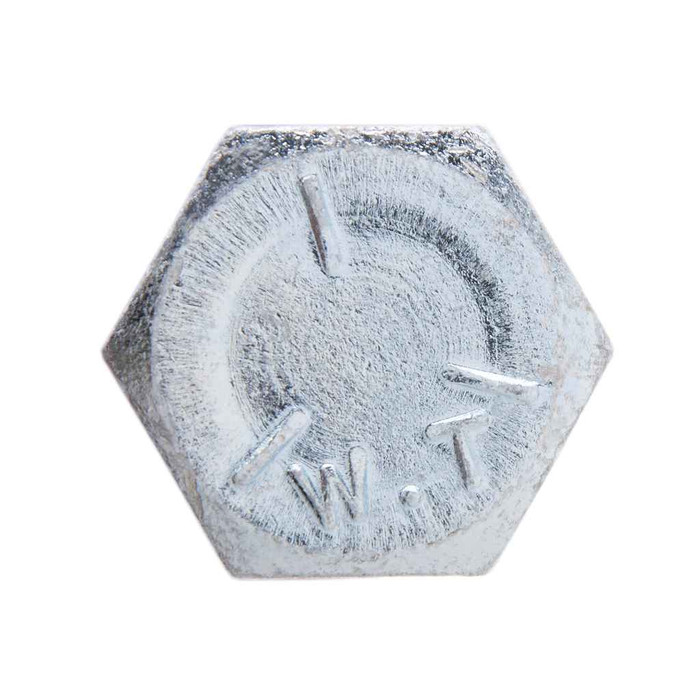

Metallics G5HTB47V Bolts 1/2-13 x 1-3/4 G5 Hx Tap Blt S (Box 500)

Metallics G5HTB47V Bolts 1/2-13 x 1-3/4 G5 Hx Tap Blt S (Box 500)

(No reviews yet) Write a Review

Model: G5HTB47V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.03
$1.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 1/2-13 x 1-3/4 G5 Hx Tap Blt S (Box 500)

  • Additional Notes

    • Other sizes and quantities available by request

  • Features

    • Used to mount motor to machinery. Also popular in automotive and truck repair
    • A cap screw made from medium carbon steel and heat-treated

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Fastener Head Height:
16-May in.
Fastener Head Type:
Hex
Fastener Head Width:
0.736 - 0.750 in.
Fastener Height:
0.302 - 0.323
Fastener Length:
1/3/04
Fastener Width:
0.840 - 0.866
Grade:
5
Hardness:
Rockwell C19-30
Language Code:
EN
Material Standard:
AISI 1008 - 1026
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
CT
Outside Diameter:
0.4930 - 0.5000 IN
Pack Type:
Box
Product Group:
Fasteners
Product Height:
6.13 in
Product Length:
9 in
Product Weight:
60 lbs
Product Width:
9 in
Sub Division:
Electrical-E H2
Tensile Strength:
105000 psi minimum
Thread Direction:
Right Hand
Thread Per Inch:
13
Thread Standard:
ASME B18.2.1-2012
Wrenching Height:
0.215
Yield Strength:
105000 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Tap Bolt
Type2:
Hexagonal Tap Bolt
Series:
G5HTB and JG5HTB
Product Finish:
Zinc
Product Details:
Hexagonal Tap Bolt
Product Material:
Steel

Metallics G5HTB47V – Frequently Asked Questions

1) What thread size and pitch is the Metallics G5HTB47V hex tap bolt?
It's a 1/2-13 bolt: 1/2 inch nominal diameter with 13 threads per inch, right hand, coarse UNC. Measured shank outside diameter runs 0.4930 to 0.5000 inch, so it drops into a standard 1/2-13 tapped hole or through a 9/16 inch clearance hole. Thread form follows ASME B18.2.1-2012.
2) Is a tap bolt fully threaded, or does it have a shoulder like a hex cap screw?
A hex tap bolt is threaded the full length of the shank, which is what separates it from a partially threaded hex cap screw. That matters when you're threading into a tapped hole and need engagement right up under the head, which is the case on motor mounting feet. If your joint needs an unthreaded grip length through a clearance hole, use a partially threaded hex cap screw instead.
3) What size wrench or socket do I need for these 1/2-13 grade 5 hex tap bolts?
A 3/4 inch wrench or socket. The hex head measures 0.736 to 0.750 inch across the flats, which is the standard 3/4 inch hex for a 1/2 inch bolt.
4) Will a zinc plated grade 5 bolt hold up outdoors or in a wet location?
The G5HTB47V is steel with a zinc finish, which is a general purpose indoor and sheltered-use coating. It handles damp and occasional exposure, but for permanent outdoor, coastal, or washdown service you want hot dip galvanized or stainless. Steel conforms to AISI 1008-1026 material.
5) How are these 1/2-13 tap bolts packaged, and can I buy less than a full box?
They come boxed 500 pieces, and 500 is the order minimum, so it's a full-box purchase rather than a loose count. Metallics also builds other sizes and quantities in the G5HTB and JG5HTB series on request.
6) Do these bolts take a standard 1/2 inch nut and washer?
Yes. Any 1/2-13 UNC right hand nut threads on, and standard 1/2 inch flat and lock washers fit the 0.4930 to 0.5000 inch shank. Pair a grade 5 bolt with a grade 5 (or higher) nut so the nut isn't the weak point in the joint.
7) Where are the Metallics G5HTB47V bolts made?
Country of origin is China. That's the detail to check first if you're buying against a domestic-sourcing requirement on a public project.
8) What jobs are these grade 5 hex tap bolts typically used for?
Mounting motors to machinery is the common one, and they see steady use in automotive and truck repair. The full-length thread and 105,000 psi grade 5 strength suit tapped-hole equipment mounting, frames, and brackets rather than structural steel connections.
