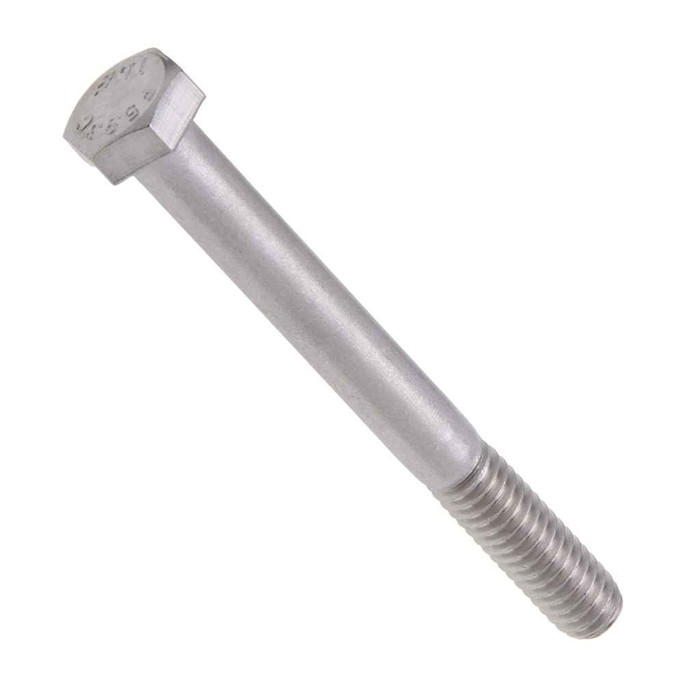

Bolts 1/2-20 X 1 Hxbt SS (Jar 50)
Features
- Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
- 18-8 and 316 stainless steel cap screws are both made from austenitic alloy
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 16-May in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.736 - 0.750 in.
- Fastener Height:
- 0.302 - 0.323
- Fastener Length:
- 1
- Fastener Width:
- 0.840 - 0.866
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_Dom_18-8_SS_316_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.4930 - 0.5000 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 4069 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 150000 psi minimum
- Thread Per Inch:
- 20
- Yield Strength:
- 65000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- SBHC and JSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JSBH700 – Frequently Asked Questions
1) What thread does the Metallics JSBH700 hex bolt use, and will it thread into a 1/2-20 tapped hole?
The JSBH700 is a 1/2-20 hex bolt, so 1/2 inch diameter at 20 threads per inch. That is the fine thread pitch, so it will only mate with a 1/2-20 nut or tapped hole, not a 1/2-13 coarse one. Shank outside diameter runs 0.4930 to 0.5000 in.
2) Is a stainless hex bolt like this OK for outdoor or wash-down electrical work?
The JSBH700 is 18-8 stainless steel, which is the grade used where general atmospheric corrosion resistance is needed, including chemical and food-processing equipment. Aggressive chemical exposure can call for 316 stainless or other special materials instead, so match the alloy to the environment rather than assuming 18-8 covers everything.
3) Do these bolts meet Buy American and ARRA requirements for a public job?
Metallics lists the JSBH700 as both ARRA compliant and Buy American compliant. Country of origin is multiple, so confirm the origin marking on the jar you receive if your specification requires a single named source.
4) How strong is the Metallics 1/2-20 stainless hex bolt?
Tensile strength is 100,000 to 150,000 psi minimum with a 65,000 psi minimum yield, and hardness runs Rockwell B95 to C32. That is typical austenitic stainless territory, so it is not a substitute for a Grade 8 alloy steel bolt in a high-preload structural joint.
5) How are these Metallics hex bolts packaged, and what is the minimum I can order?
They come in a jar of 50. Order minimum is 100 count, so two jars is the smallest quantity. Other sizes and quantities are available by request.
6) Should I use 18-8 or 316 stainless for my hex bolts?
Both are austenitic alloys, and the JSBH700 is the 18-8 version. 18-8 handles general atmospheric corrosion, which covers most indoor, damp, and ordinary outdoor electrical mounting. Step up to 316 when you are dealing with salt exposure or chemical service, where 18-8 can be attacked.
