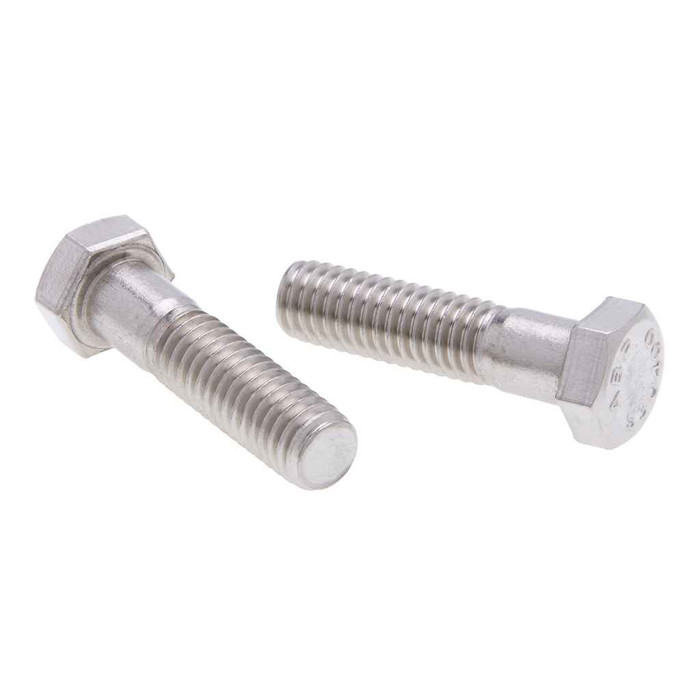

Bolts 1/4-20 X 1-1/4 Hxbt SS (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Features
- 18-8 and 316 stainless steel cap screws are both made from austenitic alloy
- Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- United States
- Division:
- Electrical H1
- Fastener Head Height:
- May-32 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.428 - 0.438 in.
- Fastener Height:
- 0.150 - 0.163
- Fastener Length:
- 1/1/04
- Fastener Width:
- 0.488 - 0.505
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_Dom_18-8_SS_316_SS.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.2450 - 0.2500 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 3.6 in
- Product Length:
- 3 in
- Product Weight:
- 962 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 150000 psi minimum
- Thread Per Inch:
- 20
- Yield Strength:
- 65000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- SBHC and JSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JSBH49D – Frequently Asked Questions
1) Is a stainless 1/4-20 hex bolt like the JSBH49D strong enough for structural or load-bearing use?
It is an 18-8 stainless bolt with 100,000 to 150,000 psi minimum tensile and 65,000 psi minimum yield, hardness Rockwell B95-C32. That is corrosion-grade hardware, not a structural grade bolt. For strut, hanger, and enclosure work in wet or corrosive areas it is the right choice; for engineered structural connections, specify a bolt called out by grade on the drawing instead.
2) Will 18-8 stainless hex bolts hold up outdoors or in a wash-down area?
18-8 is an austenitic stainless intended for general atmospheric corrosion resistance, the sort used on chemical and food-processing equipment. It handles outdoor and damp conditions well. In aggressive chemical exposure, including chlorides and coastal salt spray, 316 stainless is the better pick and may still need added precautions.
3) Do these Metallics stainless hex bolts qualify for a Buy American or federally funded project?
Yes. The JSBH49D is flagged both Buy American compliant and ARRA compliant, with country of origin the United States. That covers the documentation most government, school, and healthcare procurement groups ask for on domestic-content jobs.
4) What wrench or socket size fits the hex head on the Metallics JSBH49D 1/4-20 bolt?
Head width across flats measures 0.428 to 0.438 inch, which is a 7/16 inch wrench or socket. Across corners the head runs 0.488 to 0.505 inch, so plan clearance around the head accordingly in tight electrical enclosures.
5) How many bolts come in a jar of Metallics JSBH49D, and can I buy fewer?
They ship 50 bolts to a jar, and 50 each is the order minimum, so the jar is the smallest unit. Metallics lists other sizes and quantities as available by request.
6) Do the JSBH49D hex bolts come with nuts or washers?
No. The jar holds hex bolts only, 50 of them. Nuts, flat washers, and lock washers in 1/4-20 and 1/4 inch sizes have to be ordered separately, and for a stainless install you want matching stainless to avoid galvanic problems with plated steel.
7) What does a jar of 50 of these 1/4-20 stainless bolts weigh for shipping or truck stock?
A full jar comes in at 962 g, just over 2 pounds, with the pack measuring about 3 inches long, 3.6 inches high and 76.2 mm (3 inches) wide. It drops into a van bin easily.
