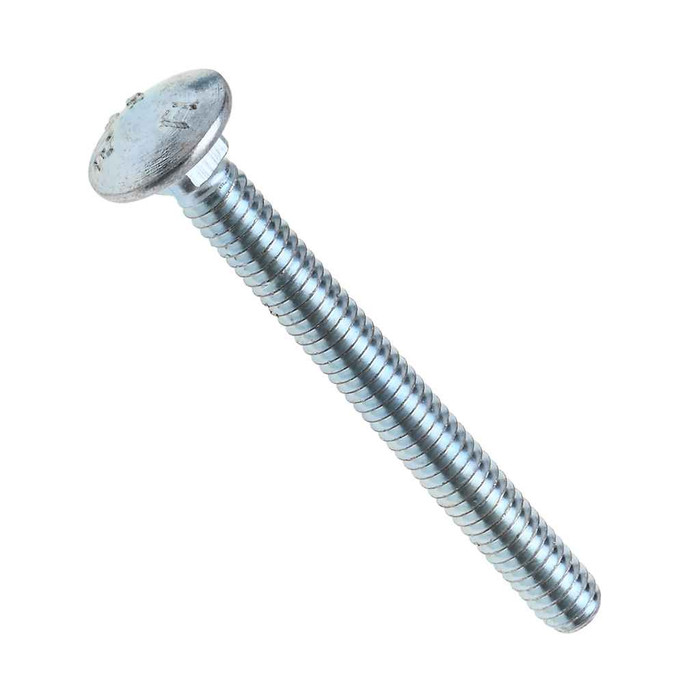

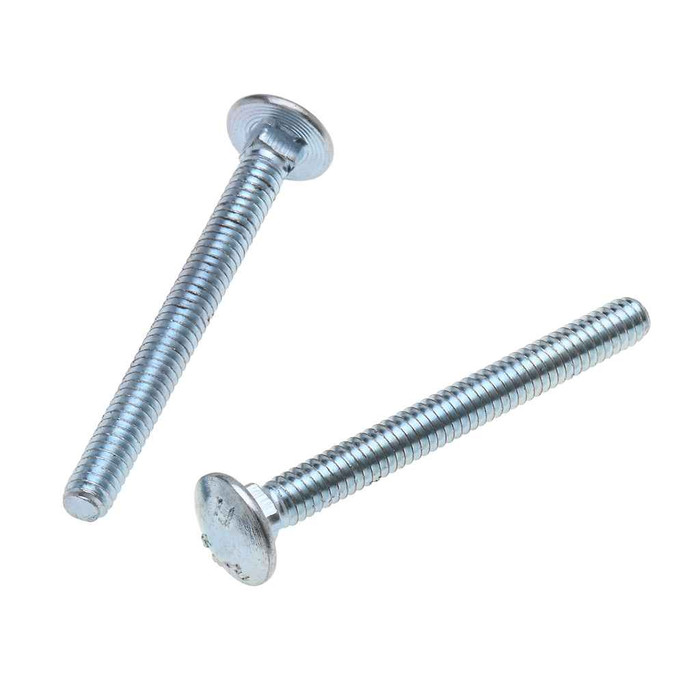

Bolts 1/4-20 X 1 Carriage Blt St-zn (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Dimensional Standard:
- ASME B18.5-1990
- Division:
- Electrical H1
- Fastener Head Type:
- Mushroom
- Fastener Head Width:
- 0.563 - 0.594 in.
- Fastener Height:
- 0.125 - 0.145
- Fastener Length:
- 1
- Fastener Width:
- 0.245 - 0.260
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Carriage_Bolt_18-8_SS_and_316_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Outside Diameter:
- 0.237 - 0.260 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 3.6 in
- Product Length:
- 3 in
- Product Weight:
- 943 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 20
- Yield Strength:
- 36000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- CB and JCB
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JCB2 – Frequently Asked Questions
1) Is the Metallics JCB2 carriage bolt strong enough for hanging conduit and equipment supports?
Rated at 60,000 psi minimum tensile and 36,000 psi minimum yield, with a hardness of Rockwell B70 to B100. That is standard low carbon steel bolt strength, suitable for the electrical, plumbing, heating and air conditioning support work it is sold for. For structural connections or anything calling out a high strength grade on the drawing, specify a graded bolt instead.
2) Do Metallics JCB2 carriage bolts qualify for a Buy American or ARRA funded project?
No. The JCB2 is listed as not Buy American compliant and not ARRA compliant, with country of origin recorded as MUL (multiple sources). For federally funded work carrying domestic sourcing requirements, you need a fastener with a documented domestic origin.
3) Are these zinc carriage bolts okay for outdoor or damp locations?
The JCB2 is steel with a zinc finish. Zinc plating handles indoor and sheltered conditions and incidental moisture, but it is not a marine or continuously wet duty coating. For pool rooms, coastal exposure, or buried and submerged work, move to a stainless carriage bolt in 18-8 or 316.
4) What dimensional standard do Metallics carriage bolts conform to?
Dimensions follow ASME B18.5-1990, the round head bolt standard. If a submittal or spec sheet calls for carriage bolts to ASME B18.5, the JCB2 head, neck and shank dimensions meet that reference.
5) How many bolts come in a jar of Metallics JCB2, and can I get other sizes?
Each jar holds 100 of the 1/4-20 x 1 carriage bolts, with an order minimum of 100, and the jar weighs 943 g. Other sizes and quantities in the CB and JCB series are available by request, so a job needing 1/4-20 in a longer length or a different diameter can be quoted off the same series.
