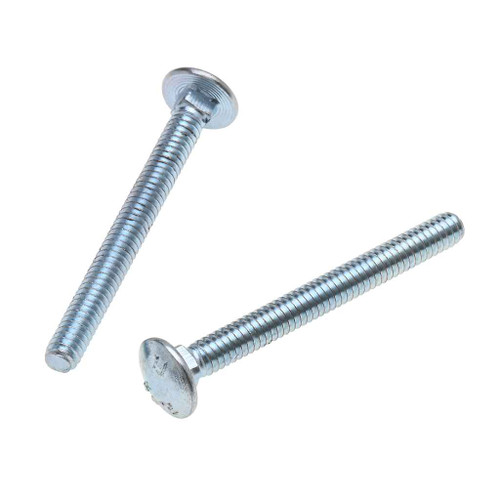

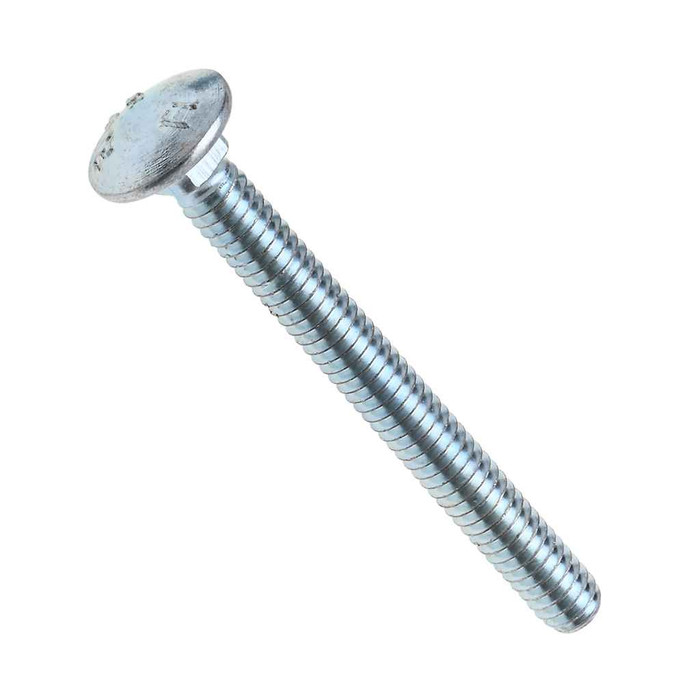

Bolts 1/4-20 x 2-1/2 Carriage Blt St (Box 1000)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.5-1990
- Fastener Head Type:
- Mushroom
- Fastener Head Width:
- 0.563 - 0.594 in.
- Fastener Height:
- 0.125 - 0.145
- Fastener Length:
- 2/1/02
- Fastener Width:
- 0.245 - 0.260
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Carriage_Bolt_18-8_SS_and_316_SS.pdf
- Order Minimum Imperial:
- 1000
- Order Minimum Uom Imperial:
- TH
- Outside Diameter:
- 0.237 - 0.260 IN
- Pack Type:
- Box
- Product Group:
- Fasteners
- Product Height:
- 6.13 in
- Product Length:
- 9 in
- Product Weight:
- 34.15 lbs
- Product Width:
- 9 in
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Per Inch:
- 20
- Yield Strength:
- 36000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Carriage Bolt
- Type2:
- Carriage Bolt
- Series:
- CB and JCB
- Product Finish:
- Zinc
- Product Details:
- Carriage Bolt
- Product Material:
- Steel
Metallics CB5M – Frequently Asked Questions
1) How thick a stack of material will a 2-1/2 inch carriage bolt go through?
At 2-1/2 inches of overall length, the CB5M handles a combined material thickness of roughly 2 inches once you allow for the nut and washer on the back side. For thicker assemblies Metallics builds the CB and JCB series in other lengths on request.
2) Is the Metallics CB5M stainless or plated steel, and can I use it outdoors?
Steel with a zinc finish, not stainless. Zinc plating is fine for dry interior work and covered locations, but in wet, coastal, or chemically aggressive exposure a zinc bolt will corrode. Specify a stainless carriage bolt for those openings instead.
3) What strength grade is this carriage bolt, and is it strong enough for structural framing?
The CB5M is a low-carbon grade bolt, 60,000 psi minimum tensile and 36,000 psi minimum yield, hardness Rockwell B70 to B100. That covers general strut, blocking, equipment mounting, and wood-to-wood fastening. Where a drawing calls out a higher-strength structural bolt, this is not the part.
4) Does the Metallics CB5M carriage bolt meet Buy American and ARRA requirements for a public job?
Yes, the CB5M is flagged compliant for both Buy American and ARRA, which is what a government, school, or healthcare procurement file usually needs on a fastener line item. Country of origin is listed as multiple.
5) How big is the head on a 1/4-20 carriage bolt, and will it pull into wood?
Mushroom head, 0.563 to 0.594 inch across and 0.125 to 0.145 inch high. That dome bears on the surface without a washer on the head side, and the square neck under it bites into wood so the bolt will not spin while you tighten the nut from the back.
6) What dimensional standard do these 1/4-20 carriage bolts conform to?
Dimensions follow ASME B18.5-1990, the round head bolt standard. If your spec or submittal calls for B18.5 carriage bolts, these match it, and the head and neck will interchange with any other bolt built to the same standard.
7) How many carriage bolts come in a box, and can I buy fewer than a full box?
The CB5M ships as a box of 1,000, and 1,000 is the order minimum, so it is sold by the full box rather than in counts. Box weight is 34.15 lbs. Smaller quantities in this size are available by request.
8) Carriage bolt or hex bolt for bolting through wood framing?
Use the carriage bolt where you want a smooth, low-profile dome on the exposed face and no tool access on that side. The square neck under the mushroom head locks into the wood so one wrench on the nut does the job. A hex bolt is the better pick when both faces are hidden and you want to hold the head with a wrench, or when you are bolting metal to metal where a square neck has nothing to grip.
