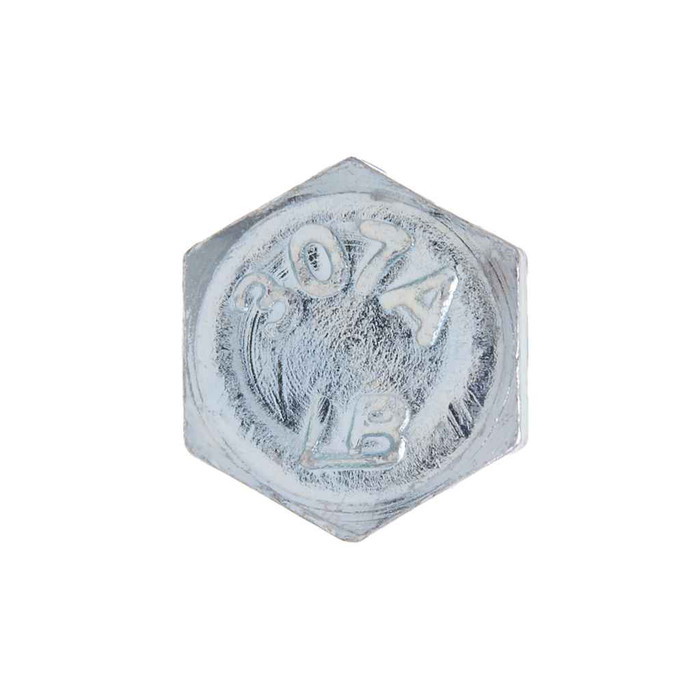

Bolts 1/4-20 X 2-3/4 Hxbt St-zn (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.425 - 0.438 in.
- Fastener Height:
- 0.150 - 0.188
- Fastener Length:
- 2/3/04
- Fastener Width:
- 0.484 - 0.505
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_St-Zn_Galv.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.237 - 0.260 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 4.27 lbs
- Product Width:
- 3.5 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 20
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBHC52 – Frequently Asked Questions
1) What size and thread is the Metallics JBHC52 hex bolt?
The JBHC52 is a 1/4-20 x 2-3/4 inch hex bolt, so 20 threads per inch on a 1/4 inch diameter shank with a 2-3/4 inch length. Measured shank outside diameter runs 0.237 to 0.260 inch. It takes a standard 1/4-20 nut and mates with 1/4-20 tapped channel, strut, or box hardware.
2) Do these Metallics hex bolts meet Buy American and ARRA requirements for a public project?
The JBHC52 is flagged both Buy American compliant and ARRA compliant, which is what a government, school district, or transit submittal package asks for. Country of origin is listed as multiple, so if your spec requires a single named origin on the certification, confirm the origin on the lot you receive.
3) Will zinc plated steel bolts hold up outdoors or in a damp mechanical room?
The JBHC52 is zinc plated steel. That handles indoor, dry, and lightly damp service, which is most electrical rough-in work: strut, enclosures, panel mounting, hanger assemblies. For sustained exterior exposure, washdown areas, coastal sites, or anywhere corrosive, step up to hot dip galvanized or stainless in the same 1/4-20 x 2-3/4 size instead of zinc plate.
4) How many bolts come in a jar and can I buy fewer than 100?
These ship 100 count in a jar, and 100 is the order minimum, so the jar is the smallest unit sold. Metallics does offer other sizes and quantities by request if 100 of the 2-3/4 inch length is not what the job needs.
5) What dimensional standard do these hex bolts follow?
Threads and head geometry follow ASME B18.2.1-1996, the inch-series hex bolt and screw standard. That means the 1/4-20 thread and the hex head will interchange with any other bolt built to that standard, so you can mix these into existing assemblies without a fit problem.
6) Are nuts and washers included with the Metallics JBHC52 bolts?
The jar contains bolts only, 100 of the 1/4-20 x 2-3/4 hex bolts. Order 1/4-20 hex nuts, flat washers, lock washers, or 1/4-20 channel spring nuts separately to complete the assembly.
7) How much does a jar of 100 of these 1/4-20 x 2-3/4 bolts weigh?
A jar of 100 comes in at 4.27 lbs, with the container measuring 3.5 x 5.75 x 3.5 inches. Useful if you are loading a van with a dozen jars or figuring freight on a stocking order for a shop or MRO crib.
