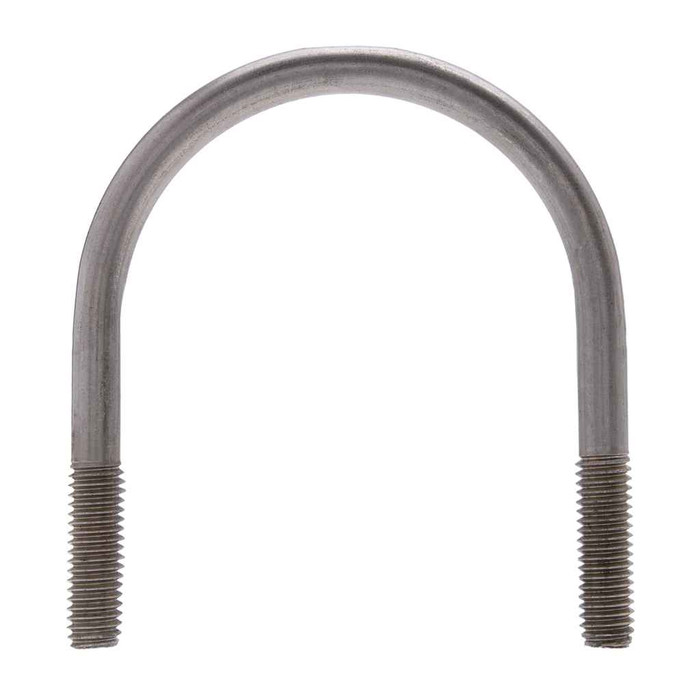

Bolts 1/4-20 X 2 X 1-1/8 U-Blt &Nt U (Bag 10)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.2
- Division:
- Electrical H1
- Fastener Head Width:
- 0.428 - 0.438 in.
- Fastener Height:
- 0.212 - 0.226
- Fastener Length:
- 2
- Fastener Width:
- 1/1/08
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Language Code:
- EN
- Material Standard:
- U-Bolt: ASTM A307 / Nut: Grade A per ASTM A563
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-U-Bolt_St-Zn.pdf
- Number Of Nuts:
- 2
- Order Minimum Imperial:
- 10
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Bag
- Product Group:
- Fasteners
- Product Length:
- 4 in
- Product Weight:
- 313 g
- Product Width:
- 101.6 MM
- Sub Division:
- Electrical-E H2
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 20
- Thread Standard:
- ANSI/ASME B1.1
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- U-Bolt with Hex Nuts
- Type2:
- U-Bolt with Hex Nuts
- Series:
- UB
- Product Finish:
- Zinc
- Product Details:
- U-Bolt with Hex Nuts
- Pipe Size Dimension:
- 4-Mar
- Product Material:
- Steel
Metallics UB05 – Frequently Asked Questions
1) What size pipe or conduit will the Metallics UB05 U-bolt wrap?
The UB05 is a 1/4-20 U-bolt with a 1-1/8 inch inside opening and 2 inch legs, so it clamps round stock up to about 1-1/8 inches across. Anything larger than that will not seat between the legs, and much smaller will leave the nuts running well down the thread before the bolt pulls tight.
2) What thread does the UB05 U-bolt take, and are nuts included?
Threads are 1/4-20, right hand, cut to ANSI/ASME B1.1, so standard 1/4-20 hex nuts and washers fit. Two hex nuts ship with each U-bolt; washers are not part of the assembly, so add them if you want bearing area against a strut or a sheet metal bracket.
3) Does the Metallics UB05 qualify for Buy American or ARRA funded work?
Metallics lists the UB05 as both ARRA compliant and Buy American compliant, which is what a government, school district, or healthcare procurement office needs on the submittal. Country of origin is recorded as multiple.
4) Is the Metallics UB05 U-bolt okay outdoors or in a damp mechanical room?
It is steel with a zinc finish. Zinc plating handles indoor and sheltered damp conditions fine, but it is not the choice for direct weather exposure, coastal air, or corrosive process areas; for those use stainless or hot dip galvanized hardware instead.
5) How many UB05 U-bolts come in a bag, and is there a minimum order?
They are bagged 10 to a pack, and the order minimum is 10 each, so one bag is the smallest buy. Metallics also makes other sizes and quantities of this UB series available on request if you are standardizing a job on a different leg length or opening.
6) What trades actually use a 1/4-20 U-bolt like this?
Metallics lists the UB series for electrical, plumbing, heating, and air conditioning work. In practice that means strapping conduit or small pipe to strut and angle, anchoring small tubing runs, and securing round stock to a bracket where a two nut clamp is wanted instead of a one screw strap.
7) How much does a bag of Metallics UB05 U-bolts weigh for shipping?
Listed weight is 313 g for the pack of ten U-bolts with their nuts. Light enough that a handful of bags adds nothing meaningful to a truck order.
