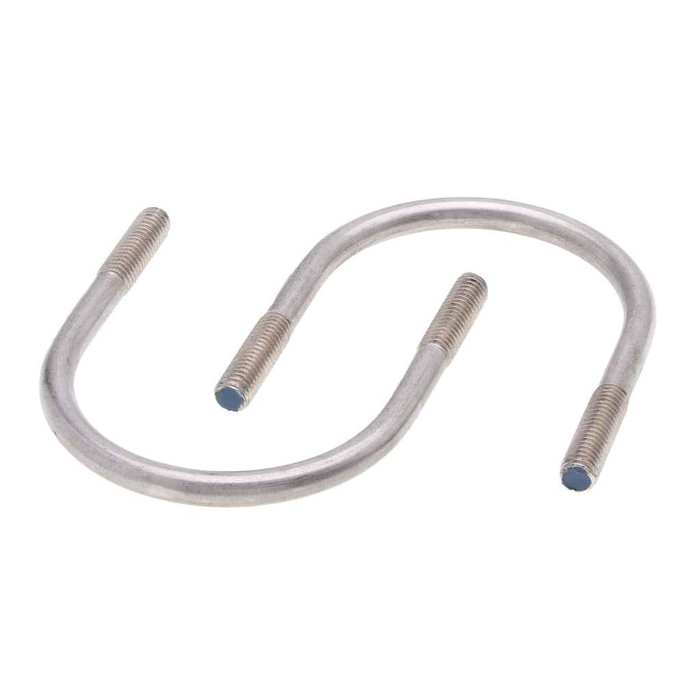

Metallics UBS05 Bolts 1/4-20 X 2 X 1-1/8 U-Blt &Nt SS (Bag 10)

It is 18-8 stainless steel, bolt and nuts both, which is the standard austenitic grade for wet and outdoor service. That makes it suitable for exterior conduit runs, rooftop mechanical supports, and damp interior locations where a plated carbon steel U-bolt would rust at the threads.

Two hex nuts ship with each U-bolt, one per leg, so nothing else is needed to make up the connection. You will still need whatever you are clamping to, such as a strut channel, a flat bracket, or a drilled plate, since no backing plate or saddle is part of the assembly.

They are bagged 10 to a pack, and 10 each is the minimum order quantity. For MRO stocking that is one bag per line item.

Both the ARRA Compliant and Buy American Compliant attributes on the UBS05 are flagged compliant, which is what a government, school, or transit submittal usually asks for on fasteners. Country of origin is listed as multiple sourcing, so if your specification requires a single named country of manufacture, confirm the origin on the lot you receive.

Threads are cut to ANSI/ASME B1.1 at 20 threads per inch, right hand, so standard 1/4-20 nuts and tapped holes engage it. The hex nuts follow ASME B18.2.2 for dimensions and ASTM F594 for stainless nut material and mechanical properties. That is the set of callouts a spec writer or submittal reviewer looks for on a stainless U-bolt assembly.

The hex nuts measure 0.428 to 0.438 inch across the flats with a height of 0.212 to 0.226 inch, which is a 7/16 inch wrench or socket. That is the standard across-flats dimension for a 1/4-20 hex nut.

The UBS05 is listed for electrical, plumbing, heating, and air conditioning work. In practice it is a general small-diameter clamp: conduit and cable runs, refrigerant and condensate lines, small copper or steel pipe, and bracing or anchoring a pipe to a channel or angle. Stainless makes it equally usable on potable and wet-location piping where a zinc-plated bolt would not last.

Yes. The UBS series runs beyond the 1/4-20 by 2 by 1-1/8 inch UBS05, and other sizes and pack quantities can be requested. Specify the thread size, leg length, and inside width for the pipe or conduit OD you are clamping.
