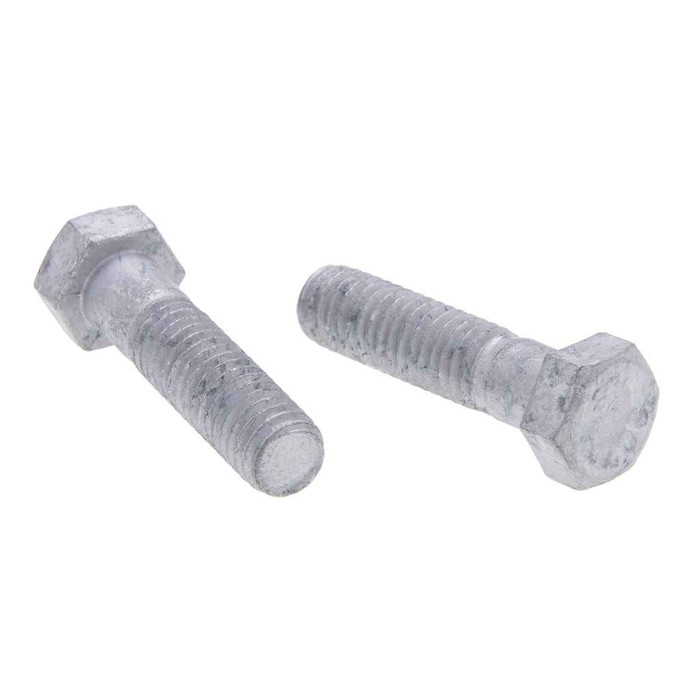

Bolts 1/4-20 X 3 Hxbt Galv (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-32 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.725 - 0.750 in.
- Fastener Height:
- 0.302 - 0.364
- Fastener Length:
- 3
- Fastener Width:
- 0.826 - 0.866
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_St-Zn_Galv.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.482 - 0.515 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 4.47 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 20
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Galvanized
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBHC6G – Frequently Asked Questions
1) Do these galvanized hex bolts qualify for a Buy American or ARRA-funded job?
Metallics lists the JBHC6G as both Buy American compliant and ARRA compliant. Country of origin is China, so if your specification demands domestic melt and manufacture rather than the compliance flag, verify against the project's exact clause.
2) Will the JBHC6G hex bolts hold up in a damp or outdoor electrical install?
These are steel bolts with a galvanized finish, which is the usual choice for damp locations, outdoor strut runs, and exterior enclosure mounting. Galvanized coating gives corrosion resistance that plain steel does not, though for direct saltwater exposure stainless is the better call.
3) What wrench or socket size do I need for these 1/4-20 hex bolts?
The hex head measures 0.725 to 0.750 inches across the flats, so a 7/16 inch wrench or socket fits it. That is the standard head size for a 1/4-20 hex bolt built to ASME B18.2.1.
4) How many bolts come in a jar of Metallics JBHC6G, and can I buy fewer?
They ship in a jar of 100, and 100 count is the order minimum, so a jar is the smallest purchase. Metallics does offer other sizes and quantities in this bolt line by request.
5) How thick a stack can a 3 inch 1/4-20 hex bolt clamp?
At 3 inches of overall length under the head, the JBHC6G covers deep stack-ups: strut plus a bracket plus spacers, or through a 2x wood member with a nut and washer on the back. Leave room for nut thickness and a couple of threads past it. For thinner single-plate work a shorter 1/4-20 from the same Metallics BHC and JBHC bolt series is the more economical pick.
6) How much does a jar of 100 Metallics 1/4-20 x 3 galvanized hex bolts weigh?
A full jar runs 4.47 lbs. Useful if you are loading a service van by weight or splitting stock across job boxes.
