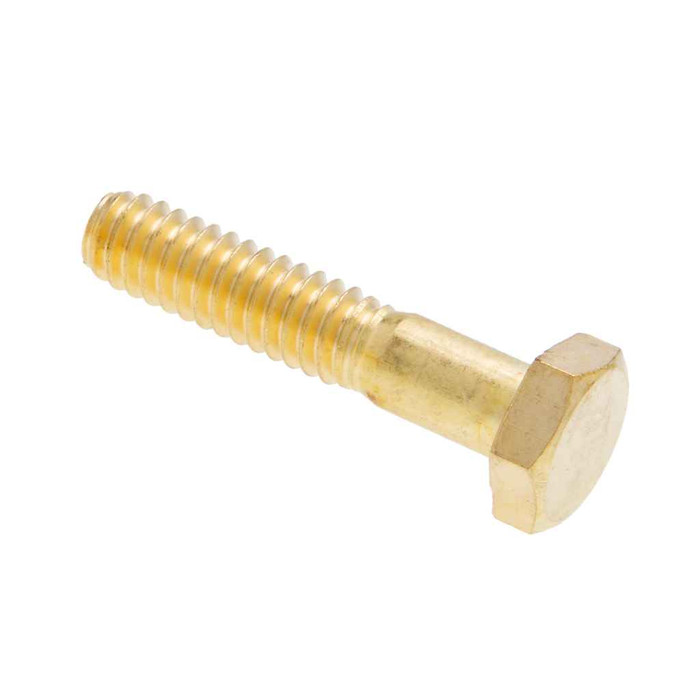

Bolts 1/4-20 X 3/4 Hxbt Br (Jar 100)
Additional Notes
- other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Color:
- Brass
- Fastener Head Height:
- May-32 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.428 - 0.438 in.
- Fastener Height:
- 0.150 - 0.163
- Fastener Length:
- 4-Mar
- Fastener Width:
- 0.488 - 0.505
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.2450 - 0.2500 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.7 in
- Product Length:
- 3 in
- Product Weight:
- 744 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 20
- Wrenching Height:
- 0.16
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- JBRHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- Brass
Metallics JBRHC1 – Frequently Asked Questions
1) Is the Metallics JBRHC1 solid brass all the way through, or just brass plated?
Solid brass. The material is listed as brass and the head color as brass, not a plating over steel. That matters on grounding and bonding work and in damp or corrosive locations, where a plated steel bolt will eventually rust through the coating.
2) Are the JBRHC1 brass bolts Buy American and ARRA compliant for a government or institutional job?
Both are flagged compliant on the Metallics JBRHC1 record: Buy American compliant and ARRA compliant. Country of origin is China. If your specification reads domestic-melt-and-manufacture rather than the ARRA or Buy American compliance flag, check the origin against your contract language before you submit it.
3) How many bolts come in a jar of Metallics JBRHC1, and can I buy fewer?
They ship 100 to a jar, and 100 count is the order minimum, so a jar is the smallest buy. Metallics does offer other sizes and quantities of this bolt by request.
4) Will a 3/4 inch long 1/4-20 brass bolt be long enough for my panel or enclosure?
With 3/4 inch of overall bolt length, you want your combined material stack plus washers to come in under that so the threads still engage fully. Head height adds roughly 0.150 to 0.163 inch above the surface, with 0.16 inch of wrenching height on the flats. For thicker stacks you'll need a longer 1/4-20 brass bolt, and Metallics lists other lengths in the JBRHC series by request.
5) Do the brass hex bolts come with nuts or washers?
No. The Metallics JBRHC1 jar is bolts only, 100 of them. If you're fastening through a hole rather than into a tapped boss, order 1/4-20 nuts and flat washers separately, and match them in brass if you want the whole assembly non-ferrous.
