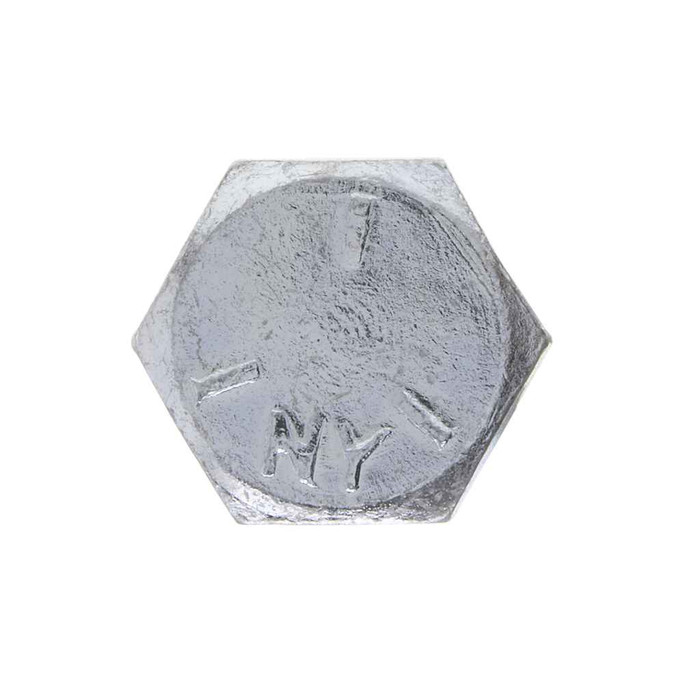

Metallics JG5HCF12 Bolts 1/4-28 X 1 G5 Hxbt St-zn (Jar 100)

Metallics JG5HCF12 Bolts 1/4-28 X 1 G5 Hxbt St-zn (Jar 100)

(No reviews yet) Write a Review

Model: JG5HCF12
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.29
$1.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 1/4-28 X 1 G5 Hxbt St-zn (Jar 100)

  • Additional Notes

    • Other sizes and quantities available by request

  • Features

    • A cap screw made from medium carbon steel and heat-treated
    • Used to mount motor to machinery. Also popular in automotive and truck repair

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Fastener Head Height:
May-32 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.428 - 0.438 in.
Fastener Height:
0.150 - 0.163
Fastener Length:
1
Fastener Width:
0.488 - 0.505
Grade:
5
Hardness:
Rockwell C25-34
Language Code:
EN
Material Standard:
AISI 1008 - 1026
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Outside Diameter:
0.2450 - 0.2500 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
844 g
Product Width:
76.2 MM
Sub Division:
Electrical-E H2
Tensile Strength:
120000 psi minimum
Thread Per Inch:
28
Thread Standard:
ASME B18.2.1-2012
Voltage Rating:
Zinc Chromate
Wrenching Height:
0.106
Yield Strength:
92000 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
G5HC and JG5HC
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JG5HCF12 – Frequently Asked Questions

1) Is the Metallics JG5HCF12 a fine thread or coarse thread 1/4 inch bolt?
Fine thread. The JG5HCF12 is a 1/4-28 UNF hex bolt at 28 threads per inch, not the coarse 1/4-20 most general construction uses. It will not thread into a 1/4-20 nut or tapped hole, so match it to fine-thread holes only, typically motor mounts and automotive or truck repair work.
2) What strength rating does this 1/4-28 x 1 inch hex bolt carry?
It is a Grade 5 cap screw with 120,000 psi minimum tensile strength and 92,000 psi minimum yield, hardness Rockwell C25-34. Medium carbon steel, heat treated. That is the standard mid-strength choice for machinery and equipment mounting; if your drawing calls for Grade 8, this bolt does not meet it.
3) How many bolts come in a jar of Metallics JG5HCF12?
They ship 100 to a jar, and 100 count is the order minimum. The jar weighs 844 g. Convenient for a service van or a shop bench where you are pulling a few at a time rather than a whole pallet of boxed fasteners.
4) Is the zinc finish on these bolts good enough for outdoor use?
The finish is zinc plating over steel, which is an indoor and sheltered-use coating. It handles shop, panel, and equipment-room environments fine, but it is not a marine or sustained-weather finish. For exposed exterior or wet locations, step up to hot dip galvanized or stainless.
5) What standard are these 1/4-28 hex bolts made to, and will they fit standard tapped holes?
Dimensions follow ASME B18.2.1-2012 for hex bolts, with steel to AISI 1008-1026. Shank outside diameter is 0.2450 to 0.2500 inch and overall length is 1 inch. Because it is built to the ASME dimensional standard, it drops into any properly tapped 1/4-28 hole or standard 1/4-28 nut.
6) Do these Metallics bolts qualify for Buy American or ARRA funded projects?
Both the Buy American and ARRA compliance flags on the JG5HCF12 read compliant, which matters on federal, municipal, and school work where the funding carries domestic sourcing language. Country of origin is listed as multiple, so if your specification requires a single named origin on the submittal, confirm the origin of the lot you receive.
