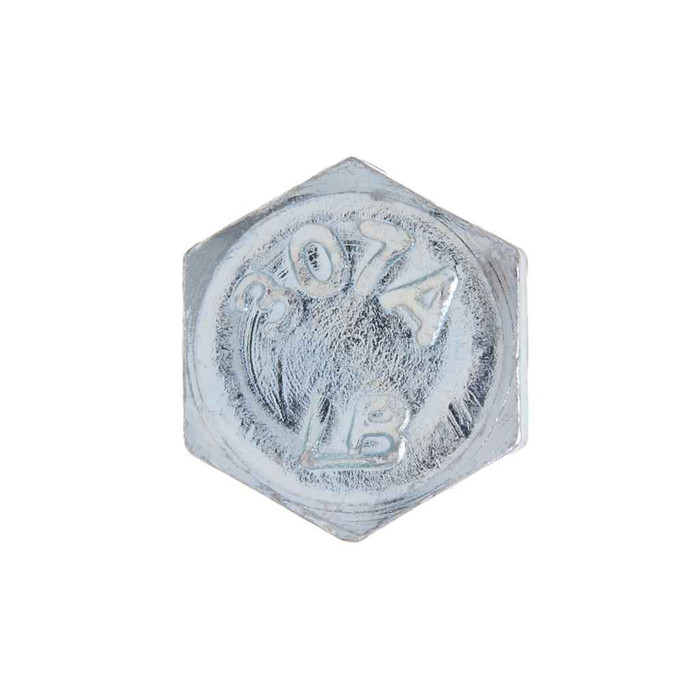

Bolts 3/4-10 X 1-1/2 Hxbt St-zn (Box 50)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 2-Jan in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 1.088 - 1.125 in.
- Fastener Height:
- 0.455 - 0.524
- Fastener Length:
- 1/1/02
- Fastener Width:
- 1.240 - 1.299
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_St-Zn_Galv.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.729 - 0.768 IN
- Pack Type:
- Box
- Product Group:
- Fasteners
- Product Height:
- 3.25 in
- Product Length:
- 7.25 in
- Product Weight:
- 14.37 lbs
- Product Width:
- 6.75 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 10
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics BHC7612 – Frequently Asked Questions
1) Will a 3/4-10 x 1-1/2 hex bolt be long enough for my clamp or strut connection?
At 1-1/2 inches of overall length under the head, the BHC7612 only works where your combined grip (material thickness plus washers plus nut height) stays under that. On a 3/4 inch bolt the threads run most of that short length, so it suits thinner stacks like beam clamps, strut fittings, and single-plate connections. For thicker build-ups you need a longer bolt in the same 3/4-10 thread. Other lengths in the BHC series are available by request.
2) Does the Metallics BHC hex bolt meet Buy American requirements on a public job?
Metallics lists the BHC7612 as both ARRA compliant and Buy American compliant, with country of origin China. If your specification requires domestically melted and manufactured fasteners rather than ARRA-style compliance, confirm which standard the spec cites before you commit.
3) Is a zinc plated steel hex bolt okay for outdoor or wet locations?
The BHC7612 is carbon steel with a zinc finish. Zinc plating is a mild corrosion coating meant for dry interior and protected environments, electrical rooms, mechanical rooms, interior strut and hanger work. For sustained outdoor exposure, wash-down areas, or anywhere chemicals or salt are present, step up to hot dip galvanized or stainless in the same 3/4-10 size.
4) How many bolts come in a box of Metallics BHC7612, and is there a minimum order?
These ship 50 per box, and 50 count is the order minimum, so a single box is the smallest purchase. Handy for MRO stockrooms standardizing on one 3/4-10 size. Other quantities can be requested.
5) Do nuts and washers come with these hex bolts?
No. The BHC7612 box contains 50 hex bolts only, no nuts or washers. Order 3/4-10 hex nuts and 3/4 inch flat or lock washers separately to complete the assembly.
6) What trades use the Metallics BHC series hex bolts?
Metallics puts the BHC and JBHC hex bolts into electrical, plumbing, heating and air conditioning work. Typical use is anchoring supports, hangers, clamps, and equipment bases where a 3/4-10 threaded connection is called for.
7) How much does a box of 50 Metallics 3/4-10 x 1-1/2 hex bolts weigh?
A box of 50 is listed at 14.37 lbs, with box dimensions of 7.25 x 6.75 x 3.25 inches. Worth knowing if you are staging material by hand up a ladder or filling bin shelving.
