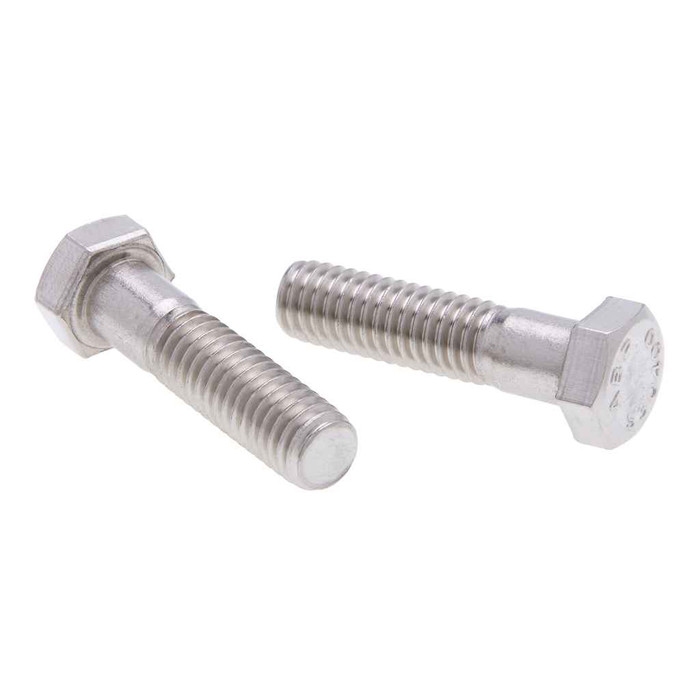

Bolts 3/4-10 X 4 Hxbt SS (Box 50)
Additional Notes
- Other sizes and quantities available by request
Features
- Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
- 18-8 and 316 stainless steel cap screws are both made from austenitic alloy
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- 15/32 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 1.100 - 1.125 in.
- Fastener Height:
- 0.455 - 0.483
- Fastener Length:
- 4
- Fastener Width:
- 1.254 - 1.299
- Hardness:
- Rockwell B80-C32
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_Dom_18-8_SS_316_SS.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.7410 - 0.7500 IN
- Pack Type:
- Box
- Product Group:
- Fasteners
- Product Height:
- 6 in
- Product Length:
- 7.25 in
- Product Weight:
- 13227 g
- Product Width:
- 158.75 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 85000 - 140000 psi minimum
- Thread Per Inch:
- 10
- Wrenching Height:
- 0.324
- Yield Strength:
- 45000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- SBHC and JSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics SBH9865 – Frequently Asked Questions
1) What size and thread does the Metallics SBH9865 hex bolt have?
It's a 3/4-10 hex bolt, 4 inches long. Thread pitch is 10 threads per inch, which is the coarse (UNC) series for 3/4 inch diameter, so it mates with standard 3/4-10 nuts and tapped holes. Measured shank diameter runs 0.7410 to 0.7500 inch.
2) Is 18-8 stainless the right bolt for a food processing or chemical plant install?
18-8 stainless, which is what the SBH9865 is made from, is an austenitic alloy used where general atmospheric corrosion resistance is needed, including chemical and food-processing equipment. Some chemical environments are aggressive enough to require special corrosion resistant materials and added precautions, so 316 is the step up if your chemistry calls for it.
3) How strong is the Metallics 3/4-10 x 4 stainless hex bolt?
Tensile strength is 85,000 to 140,000 psi minimum with a 45,000 psi minimum yield, and hardness runs Rockwell B80 to C32. That is typical austenitic stainless territory, noticeably lower in yield than a quenched and tempered carbon steel Grade 5 or Grade 8 bolt. If your drawing calls out a graded carbon steel bolt by strength, this stainless is not a drop-in substitute on strength alone.
4) What wrench size fits the head on a 3/4-10 stainless hex bolt from Metallics?
Head width across flats is 1.100 to 1.125 inch, so a 1-1/8 inch wrench or socket is the fit. Head height is 15/32 inch, and the wrenching height (the usable grip depth on the flats) is 0.324 inch, worth checking if you're working in a counterbored or recessed pocket.
5) Can I buy the Metallics SBH9865 hex bolt in less than a full box?
No. It ships as a box with a 50 piece minimum, so 50 each is the smallest order. Other sizes and quantities are available by request.
6) Does the Metallics SBH9865 bolt meet Buy American and ARRA requirements for a federal or public project?
The SBH9865 is flagged compliant for both Buy American and ARRA, which is what a government, school district, or municipal procurement file usually needs documented. Country of origin is listed as multiple.
7) What grip length do I get with a 4 inch 3/4-10 hex bolt?
The 4 inch figure is the shank length under the head, not overall, so the 15/32 inch head sits on top of that. Plan your stack of material plus washers and nut inside the 4 inches, leaving enough thread engaged in the nut. For thicker assemblies, Metallics offers other lengths in the same SBHC series by request.
8) Will a 3/4-10 stainless hex bolt fit a 3/4 inch drilled hole?
Not cleanly. Shank diameter measures 0.7410 to 0.7500 inch, so a nominal 3/4 inch hole leaves no clearance. Standard practice is to drill oversize, typically 13/16 inch for a 3/4 inch bolt, so the fastener drops through without reaming.
