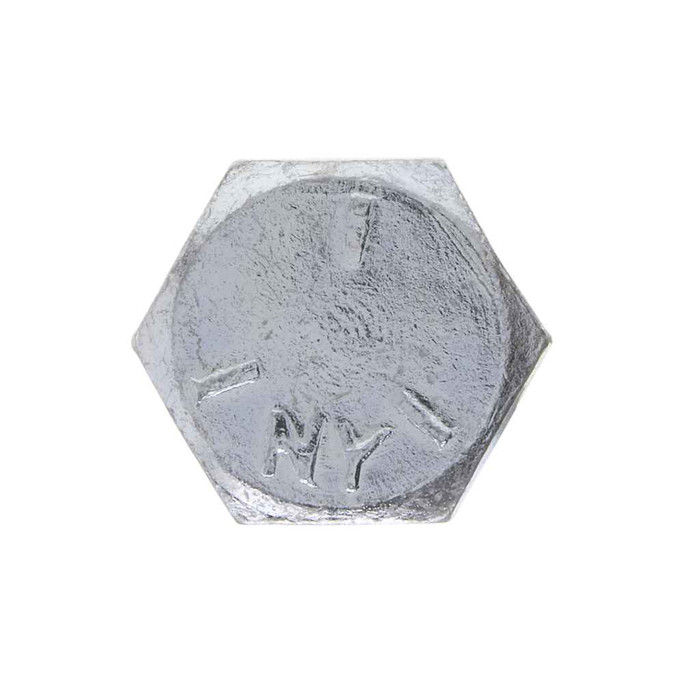

Bolts 3/8-16 X 2-1/2 G5 Hxbt St-zn (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Features
- Used to mount motor to machinery. Also popular in automotive and truck repair
- A cap screw made from medium carbon steel and heat-treated
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Fastener Head Height:
- 15/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.551 - 0.562 in.
- Fastener Height:
- 0.226 - 0.243
- Fastener Length:
- 2/1/02
- Fastener Width:
- 0.628 - 0.650
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Grade:
- 5
- Hardness:
- Rockwell C19-30
- Language Code:
- EN
- Material Standard:
- AISI 1008 - 1026
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.3690 - 0.3750 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 2000 g
- Product Width:
- 88.9 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 105000 psi minimum
- Thread Per Inch:
- 16
- Thread Standard:
- ASME B18.2.1-2012
- Voltage Rating:
- Zinc Chromate
- Wrenching Height:
- 0.16
- Yield Strength:
- 105000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- G5HC and JG5HC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JG5HC25 – Frequently Asked Questions
1) Will a 3/8-16 Grade 5 hex bolt thread into a standard 3/8 inch coarse nut or tapped hole?
Yes. The JG5HC25 is a 3/8-16 bolt, 16 threads per inch, which is the standard coarse (UNC) pitch for 3/8 inch fasteners, so it mates with any 3/8-16 nut, coupling, strut channel nut or tapped hole. Shank diameter runs 0.3690 to 0.3750 inch, and the thread conforms to ASME B18.2.1-2012, so it also drops through a nominal 7/16 inch clearance hole.
2) Is a Grade 5 zinc bolt strong enough for hanging motors and equipment, or do I need Grade 8?
Grade 5 is the normal choice for mounting motors to machinery and for general mechanical equipment anchoring. These bolts are medium carbon steel, heat treated, with a 105,000 psi minimum tensile strength and a hardness of Rockwell C19-30. Material conforms to AISI 1008-1026. Go to Grade 8 only where an engineer has specified a higher strength class or the joint sees high cyclic or shock loading.
3) How many bolts come in a jar of Metallics JG5HC25, and do nuts or washers come with them?
Fifty bolts per jar, and the jar of 50 is the minimum order quantity. Bolts only, no nuts or washers included, so order 3/8-16 hex nuts and 3/8 flat and lock washers separately if the joint needs them.
4) Do Metallics Grade 5 hex bolts meet Buy American or ARRA requirements on a federal job?
No. These bolts are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic content clause, you will need a domestic-sourced Grade 5 hex bolt instead.
5) How much material can a 2-1/2 inch long 3/8-16 Grade 5 bolt clamp?
The JG5HC25 has a 2-1/2 inch overall length under the head. Budget for your nut and washer stack plus a couple of exposed threads, so in practice it clamps roughly 2 inches of material with a flat washer, nut and lock washer. For thicker build-ups or through-bolting heavier channel, step up to a longer length in the same G5HC/JG5HC series.
6) Are zinc plated Grade 5 hex bolts OK outdoors or in a wet mechanical room?
The plating is zinc on steel, which handles dry interior and sheltered service well. For a damp mechanical room, a cooling tower deck, a rooftop curb or anything washed down regularly, zinc plating will eventually bloom and rust at cut threads and wrench marks. Hot dip galvanized or stainless is the better call for direct weather exposure.
7) Can I use these hex bolts for strut, conduit rack and HVAC equipment mounting?
Yes, that is the intended work. Metallics lists these Grade 5 hex bolts for the electrical, plumbing, heating and air conditioning trades, and they are also common in automotive and truck repair. Any 3/8-16 strut nut, beam clamp, pipe hanger or equipment foot takes them.
