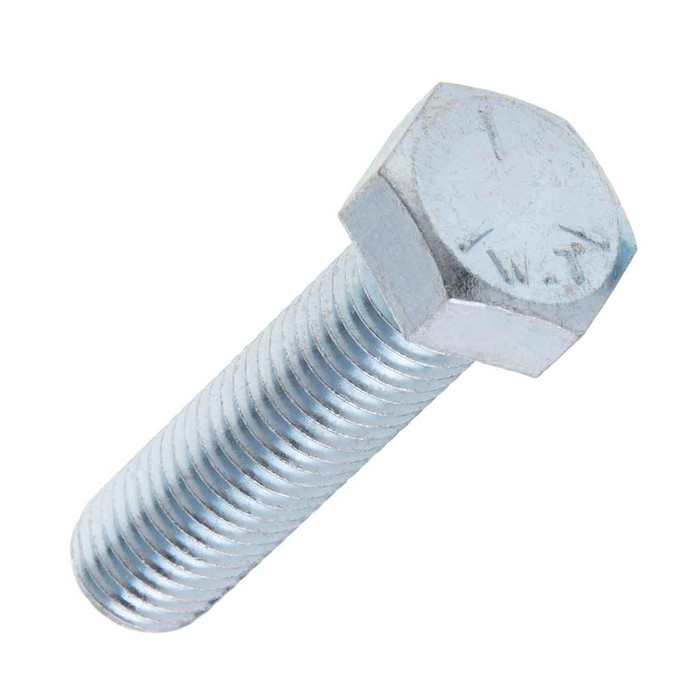

Metallics JG5HTB102 Bolts 3/8-16 X 3-1/4 G5 Hx Tap Blt (Jar 100)

Metallics JG5HTB102 Bolts 3/8-16 X 3-1/4 G5 Hx Tap Blt (Jar 100)

(No reviews yet) Write a Review

Model: JG5HTB102
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.84
$1.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 3/8-16 X 3-1/4 G5 Hx Tap Blt (Jar 100)

  • Additional Notes

    • Other sizes and quantities available by request

  • Features

    • Used to mount motor to machinery. Also popular in automotive and truck repair
    • A cap screw made from medium carbon steel and heat-treated

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Country Of Origin:
China
Division:
Electrical H1
Fastener Head Height:
15/64 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.551 - 0.562 in.
Fastener Height:
0.226 - 0.243
Fastener Length:
3/1/04
Fastener Width:
0.628 - 0.650
Grade:
5
Hardness:
Rockwell C19-30
Language Code:
EN
Material Standard:
AISI 1008 - 1026
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Tap_Bolt_St-Zn_and_18-8_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Outside Diameter:
0.3690 - 0.3750 IN
Pack Type:
Jar
Product Family:
Electrical Supplies
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
4423 g
Product Width:
114.3 MM
Sub Division:
Electrical-E H2
Tensile Strength:
105000 psi minimum
Thread Direction:
Right Hand
Thread Per Inch:
16
Thread Standard:
ASME B18.2.1-2012
Wrenching Height:
0.16
Yield Strength:
105000 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
G5HTB and JG5HTB
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JG5HTB102 – Frequently Asked Questions

1) Will a 3/8-16 hex tap bolt thread into a standard 3/8 inch tapped hole?
Yes. The Metallics JG5HTB102 is a 3/8-16 bolt, right hand thread, 16 threads per inch, made to ASME B18.2.1-2012 dimensional standard. Body diameter runs 0.3690 to 0.3750 inch, so it drops into a standard 3/8-16 tapped hole or a 3/8 clearance hole. If the hole in your motor base or bracket is tapped coarse 3/8-16, this mates directly.
2) Is a hex tap bolt threaded all the way, or does it have a plain shank like a hex cap screw?
A hex tap bolt is threaded full length right up under the head, which is the difference from a partially threaded hex cap screw. That matters when you are bolting into a tapped hole of uncertain depth or clamping a thick stack where a grip shank would bottom out before the joint pulls tight. The Metallics JG5HTB102 is the 3/8-16 x 3-1/4 version.
3) Are these zinc plated bolts okay for outdoor or damp locations?
The finish is zinc plating over steel, which handles indoor mechanical rooms, equipment rooms, and general shop and vehicle work. Zinc plate gives moderate corrosion resistance only. For constant wet exposure, washdown areas, or coastal work, use stainless or hot dip galvanized fasteners instead of a zinc plated Grade 5.
4) Do these bolts come with nuts and washers?
No. The jar contains 100 bolts only, 3/8-16 x 3-1/4 Grade 5 hex tap bolts. If you are bolting through rather than into a tapped hole, order 3/8-16 hex nuts and 3/8 flat or lock washers separately, and match the plating so you are not pairing zinc with bare steel.
5) What steel are Metallics Grade 5 hex tap bolts made from?
Carbon steel in the AISI 1008 to 1026 range, heat treated to reach Grade 5 properties and finished in zinc. That is the standard material band for Grade 5 bolting, so if a spec sheet calls for a medium carbon heat treated cap screw, this meets the description.
